Запчасти Bobcat VR530C TELESCOPE CYLINDER INSTALLATION (S/N 366011001 - 12000, 366111001 - 12000) HYDRAULIC SYSTEM

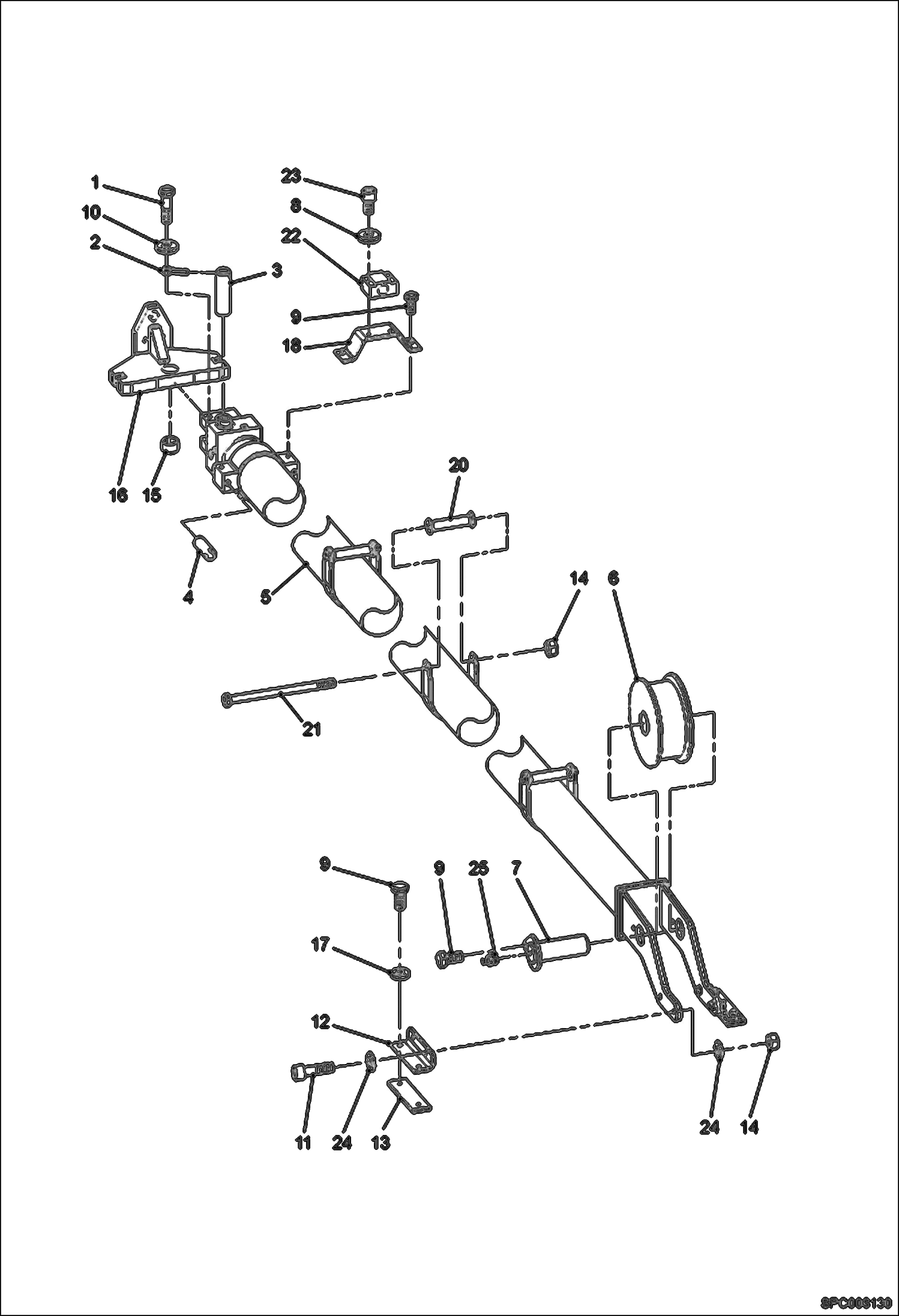

Схема запчастей Bobcat VR530C - TELESCOPE CYLINDER INSTALLATION (S/N 366011001 - 12000, 366111001 - 12000) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7001861

SCREW

2

7001826

WEIGHT

3

7001824

PIN

4

7001843

PIN

5

7001761

CYLINDER, TELESCOPE

6

7001803

PULLEY

7

7001816

PIN

8

7001879

WASHER

9

7001857

SCREW

10

7001874

WASHER

11

7001856

SCREW

12

7001802

SUPPORT

13

7001750

PAD, WEAR

14

7001868

NUT

15

7001827

BUSHING

16

7001779

SUPPORT

17

7001831

WASHER

18

7001778

PLATE

20

7001812

GUIDE, CHAIN

21

7001875

SCREW

22

7001780

GUIDE, ROD

23

7001871

SCREW

24

WASHER

25

7001838

FITTING, GREASE

Выбрано товаров: 24
