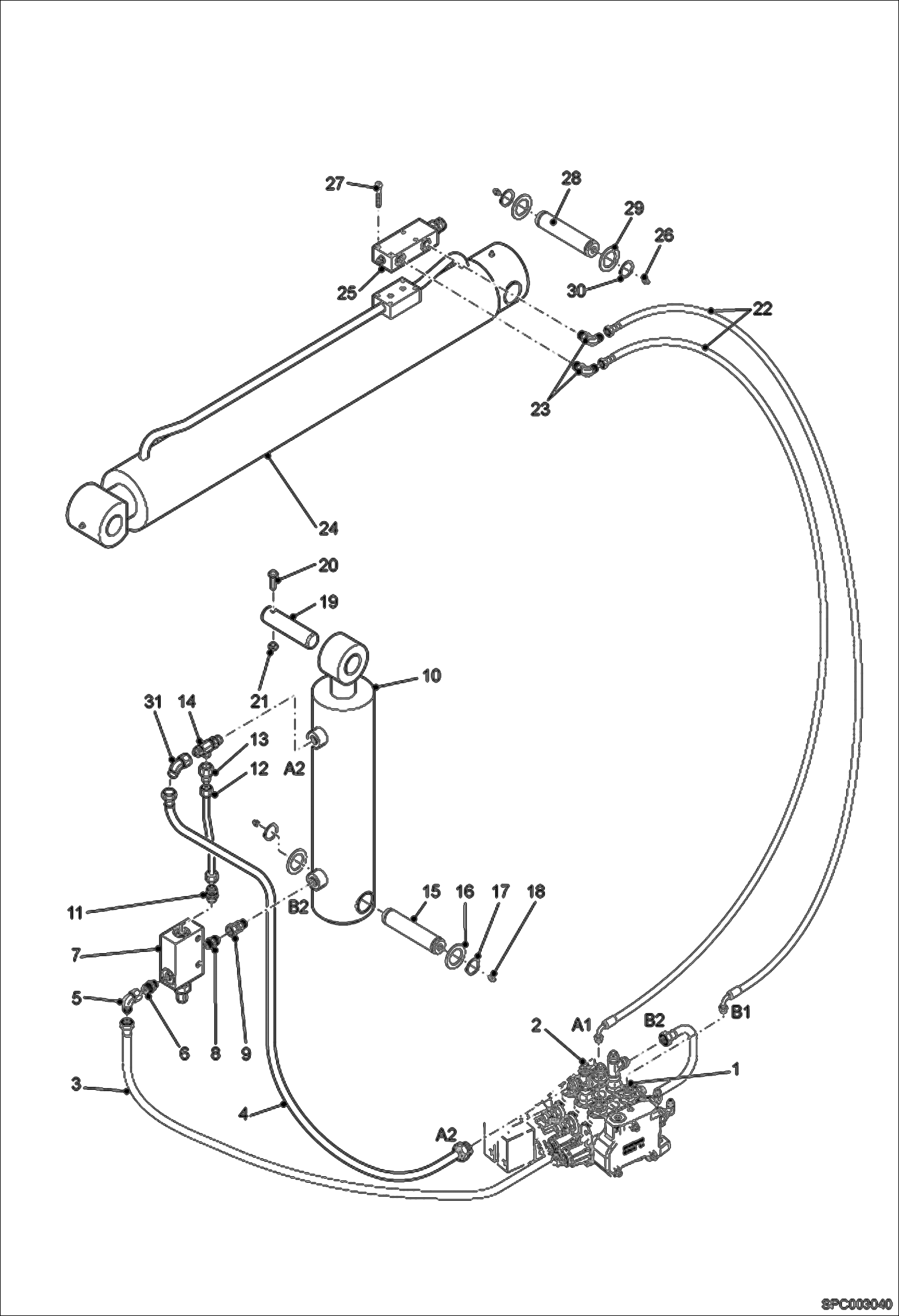

Запчасти Bobcat VR530C LIFT & COMPENSATION CYLINDER INSTALLATION HYDRAULIC SYSTEM

1

014375-02C

UNION 7/8 JIC 3/4 BSPP

2

008372-28F

UNION

3

83933-2

HOSE

4

6909253

HOSE TJ 7/8 12,7 TJ45 7/8 L1070

5

010370-90W

ELBOW PIECE

6

100375-39T

UNION 7/8 JIC 3/8 BSP

7

7168745

VALVE, SELF LEVELLING Was 98235-5 - C

8

100375-39T

UNION 7/8 JIC 3/8 BSP

9

7225156

FITTING, HYD Was 022375-06W - A

10

6928165

COMPENSATION CYLINDER

11

65614-0

UNION

12

98275-1

HYD.PIPE

13

65641-3

ADAPTER

14

100372-08J

T PIECE

15

6910300

ROD

16

009456-02D

WASHER

17

5JM50

CIRCLIPS Was 31825-3 - B

18

01775-6

GREASE NIPPLE

19

77425-7

PIN, COTTER

20

7CM10100

SCREW HEX Was 65397-2 - A

21

100345-09A

NUT

22

96788-5

HOSE

23

65285-9

ELBOW PIECE

24

90774-1

CYLINDER, LIFT

25

6918850

VALVE, SAFETY See Illustration SAFETY VALVE/ EM6303 also order Ref. 26 Was 6909363 - A

26

01775-6

GREASE NIPPLE

27

88299-3

SCREW

28

6910301

ROD

29

009456-02D

WASHER

30

5JM50

CIRCLIPS Was 31825-3 - B
