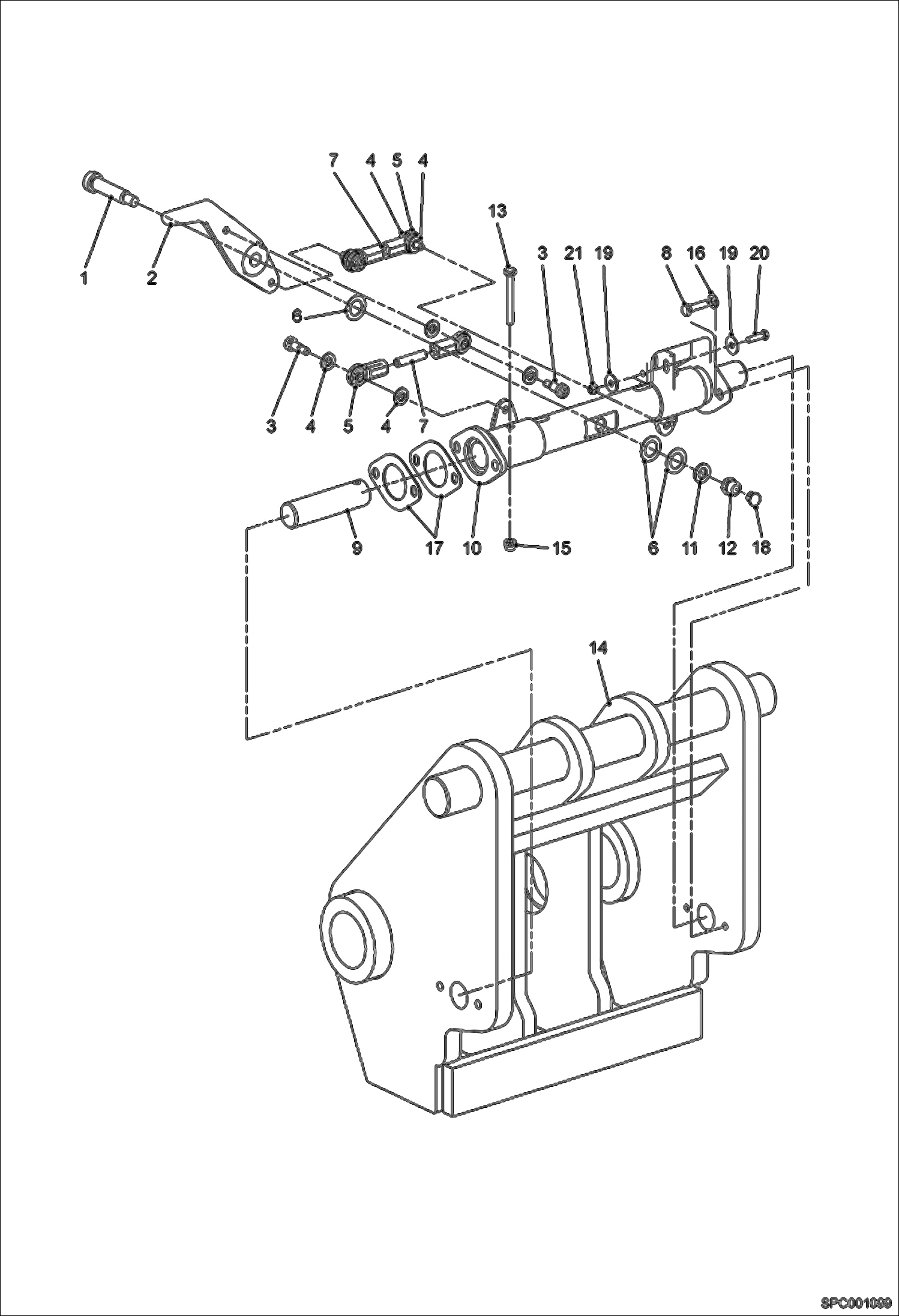

Запчасти Bobcat VR530C CARRIAGE (S/N 366011001 - 11999, 366111001 - 11999) MAIN FRAME

1

7001881

BOLT

2

7001810

HANDLE

3

7001877

SCREW

4

7001880

WASHER

5

7001807

ROD END

6

7001825

WASHER

7

7001752

ROD, THREADED

8

7001872

SCREW

9

7001806

PIN

10

7001771

LOCK ASSY

10

7001772

STOP

10

7001811

SLEEVE

10

7001817

TUBE

10

7001818

FLANGE

11

7001878

WASHER

12

7001867

NUT NYLON

13

7001870

SCREW

14

7001783

HOUSING, CARRIAGE

15

7001865

NUT

16

7001879

WASHER

17

7001819

SHIM

18

7001760

STOP, PIN RUBBER

19

7001835

WASHER

20

7001853

SCREW

21

7001864

NUT
