Запчасти Bobcat VR530C INTERMEDIATE BOOM ASSY (S/N 366011001 - 11999, 366111001 - 11999) MAIN FRAME

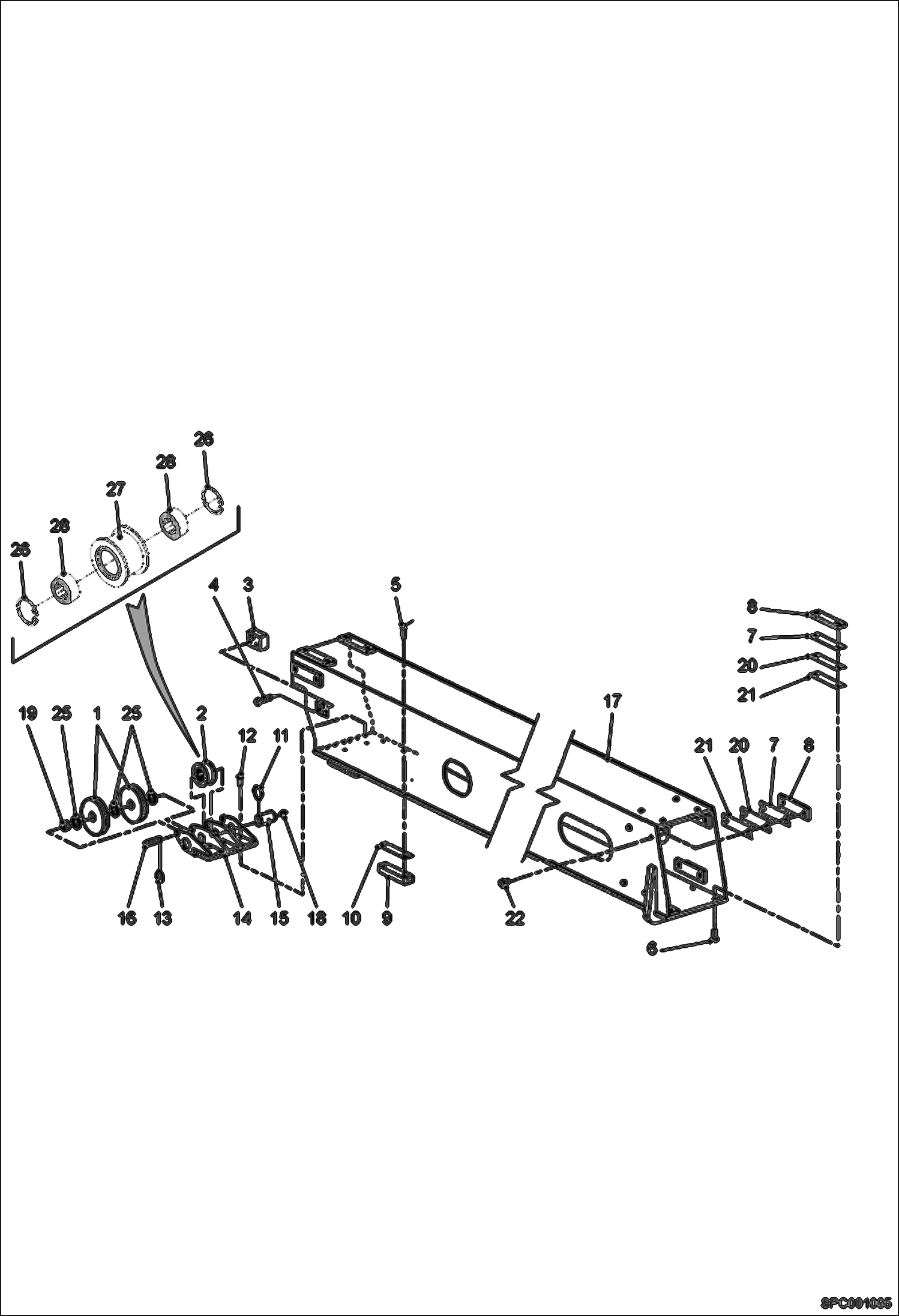

Схема запчастей Bobcat VR530C - INTERMEDIATE BOOM ASSY (S/N 366011001 - 11999, 366111001 - 11999) MAIN FRAME

Артикул

Название

Примечание

Количество

1

7001786

PULLEY (LARGE)

2

7001822

PULLEY (SMALL) ASSY

3

7001815

BLOCK

4

7001847

SCREW

5

7001876

SCREW

6

7001857

SCREW

7

7001801

SHIM

8

7001750

PAD, WEAR

9

7001782

PAD, WEAR

10

7001808

SHIM

11

7001842

RING, SNAP

12

7001862

SCREW

13

7001841

RING

14

7001757

WEDGE, FINGER WELD

15

7001759

PULLEY AXLE

16

7001758

PULLEY AXLE

17

7001788

BOOM, INTERMEDIATE

18

7001839

UNION

19

7001756

BUSHING

20

7001813

SHIM

21

7001814

SHIM

22

7001854

SCREW

25

7001825

WASHER

26

7001840

RING, SNAP

27

7001821

PULLEY

28

7001797

BEARING

Выбрано товаров: 26
