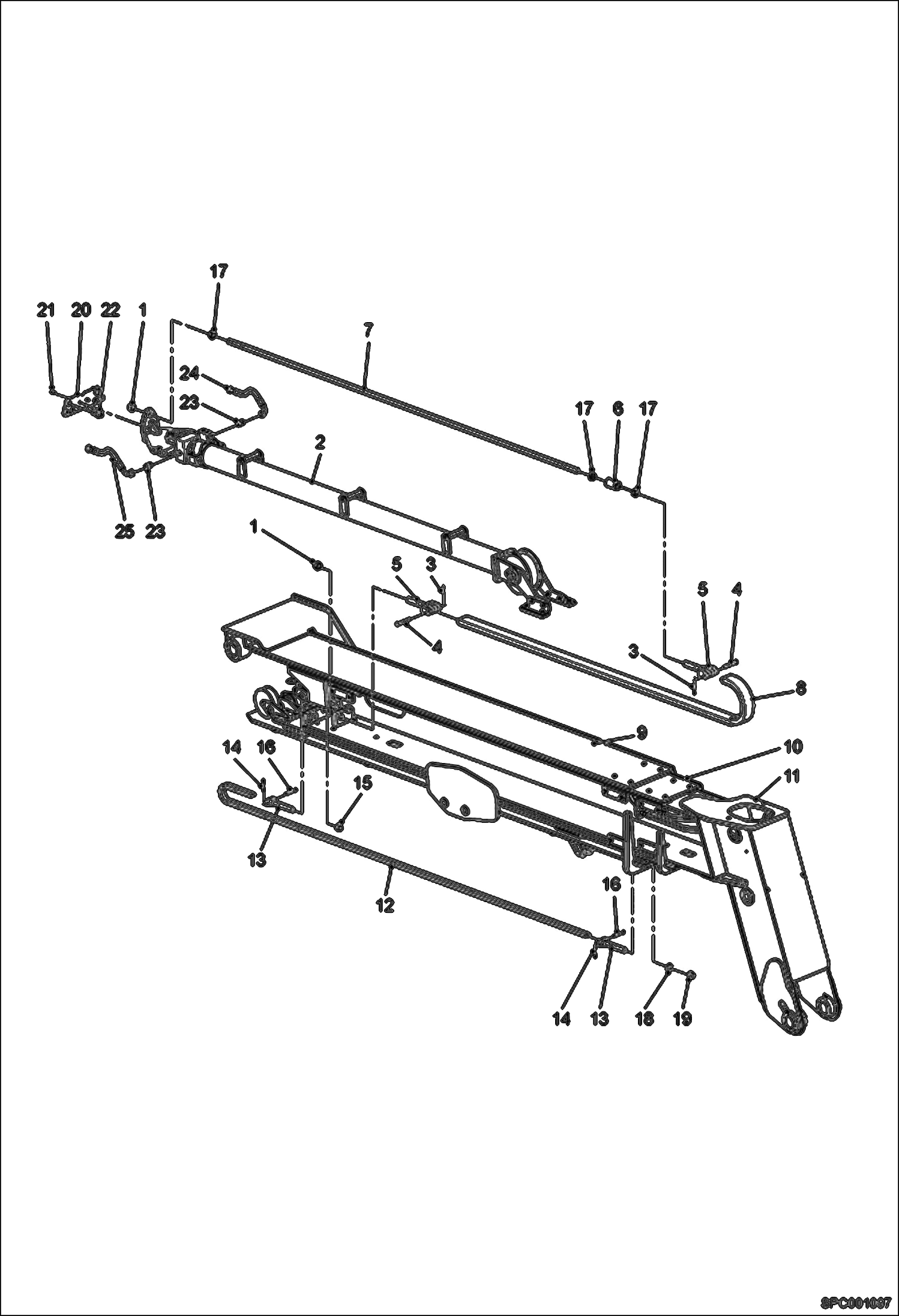

Запчасти Bobcat VR530C BOOM INSTALLATION II (S/N 366011001 - 11999, 366111001 - 11999) MAIN FRAME

1

7001851

NUT

2

7001746

CYLINDER, TELESCOPE

3

7001852

PIN

4

7001800

PIN

5

7001804

CHAIN, ANCHOR CHAIN

6

7001805

NUT, UNION

7

7001765

ROD, ANCHOR CHAIN

8

7001763

CHAIN

9

7001747

BOOM, FIXED ASSY

10

7001787

BOOM, INTERMEDIATE ASSY

11

7001748

BOOM, END ASSY

12

7001762

CHAIN

13

7001755

CHAIN, ANCHOR CHAIN

14

7001848

PIN

15

7001832

NUT, LOCK

16

7001829

PIN

17

7001850

NUT

18

7001830

RING

19

7001828

NUT

20

7001781

PLATE

21

7001859

SCREW

22

7001844

ADAPTER

23

7001836

ADAPTER

24

7001767

HOSE

25

7001768

HOSE
