Запчасти Bobcat VR530C BOOM INSTALLATION I (S/N 366011001 - 11999, 366111001 - 11999) MAIN FRAME

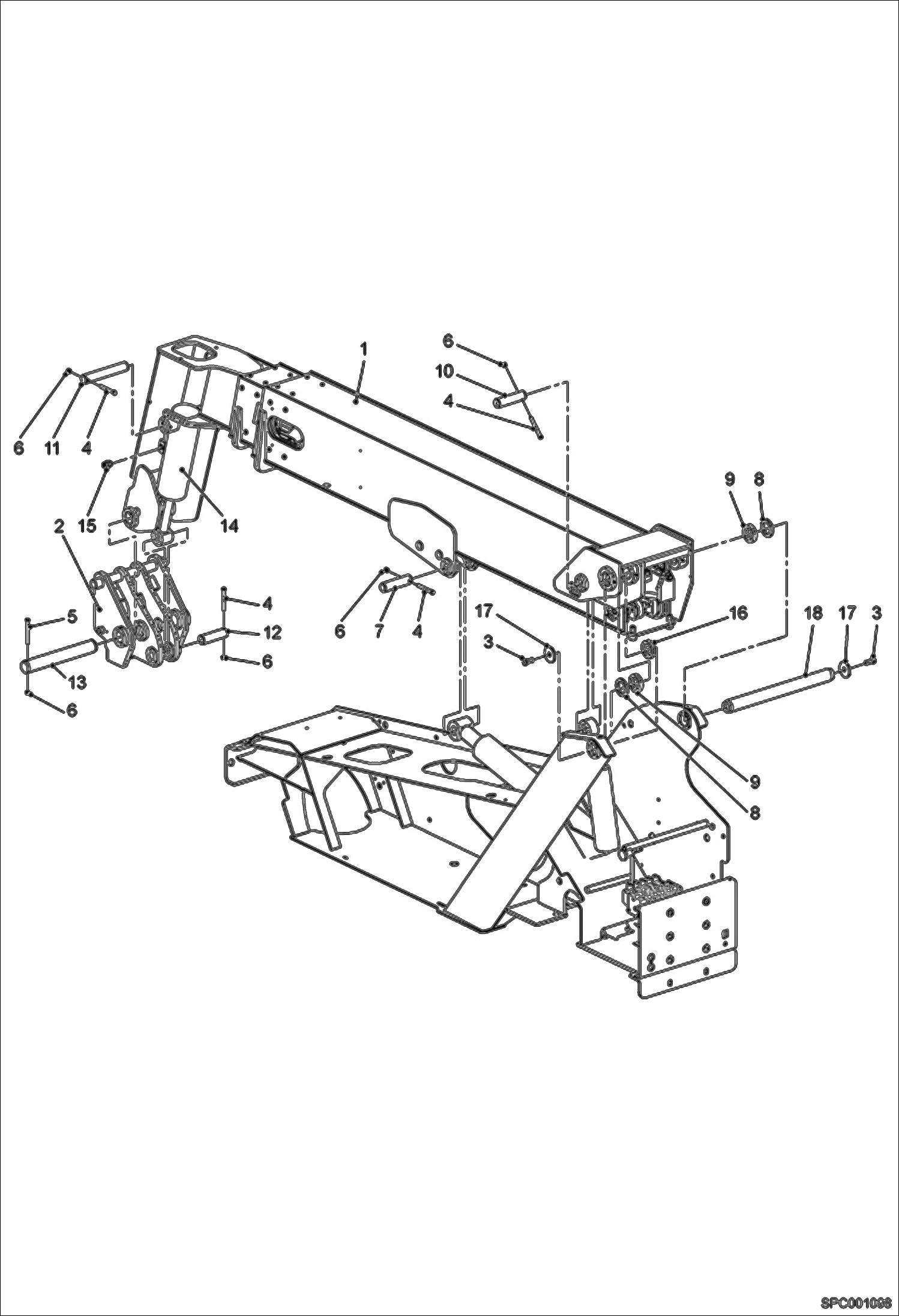

Схема запчастей Bobcat VR530C - BOOM INSTALLATION I (S/N 366011001 - 11999, 366111001 - 11999) MAIN FRAME

Артикул

Название

Примечание

Количество

1

7001745

BOOM, TELESCOPIC ASSY

2

7001773

HOUSING, CARRIAGE ASSY See Illustration CARRIAGE/ SPC001099

3

7001863

SCREW

4

IR96705033

CAPSCREW Was 7001869 - C

5

IR96712104

BOLT Was 7001873 - C

6

IR96704614

Nut Was 7001866 - C

7

7001785

PIN

8

7001798

WASHER

9

7001799

WASHER

10

7001789

PIN

11

PIN NLA Was 7001777 - A

12

7214127

PIN Was 80400-5 - A

13

7001775

PIN

14

7001769

CYLINDER, TILT

14

7001770

VALVE, COUNTERBALANCE

14

7001776

CYLINDER

14

64534-1

VALVE

14

100496-04H

SEAL KIT

14

93652-6

SEAL KIT

15

7001834

ADAPTER

16

7001790

RING

17

7214510

WASHER Was 77430-7 - A

18

89328-9

SPINDLE

Выбрано товаров: 23
