Запчасти Bobcat VR530C COWLING INSTALLATION MAIN FRAME

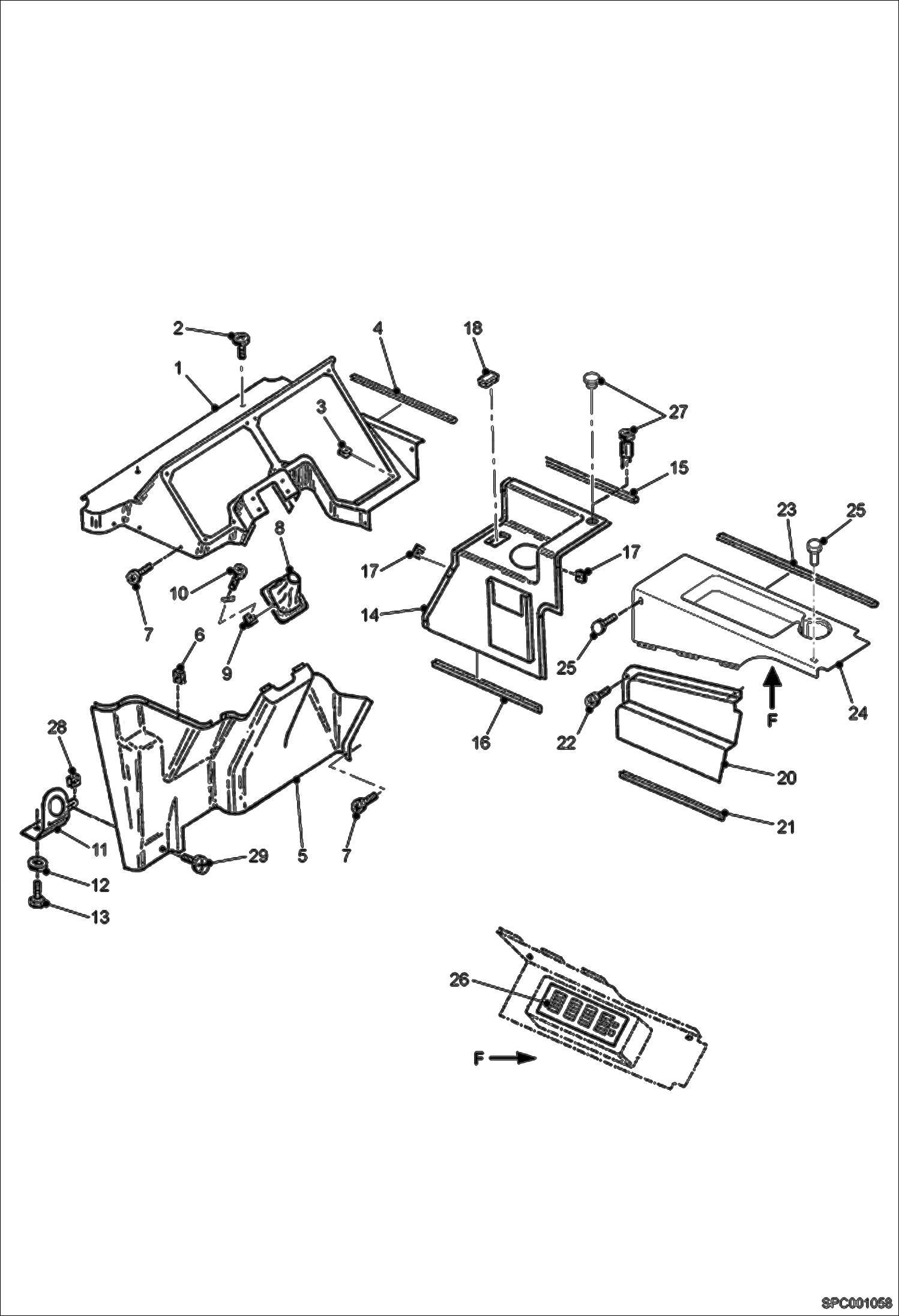

Схема запчастей Bobcat VR530C - COWLING INSTALLATION MAIN FRAME

Артикул

Название

Примечание

Количество

1

6910882

COWLING

1

6913054

DASH COWLING

2

79864-5

SCREW

3

6909903

CLIPS

4

TRIM, EDGE NAP - Order 430 mm of 78826.5 Was 6909930 - D

5

6910883

COWLING

5

6913053

STEERING COLUMN COWLING

6

6909903

CLIPS

7

6910505

SCREW

8

6909973

BELLOW , STEERING WHEEL

9

6909903

CLIPS

10

6909995

SCREW , TCB 4X12

11

6914561

BRACKET Was 6909974

12

05698-6

WASHER

13

01590-9

SCREW

14

6912458

COWLING

15

TRIM, EDGE NAP - Order 360 mm of 78826.5 Was 6909931 - D

16

TRIM, EDGE NAP - Order 340 mm of 78826.5 Was 6909933 - D

17

6909903

CLIPS

18

6909904

COVER

20

6917000

FUSE PANEL SIDE COWLING Was 6910881 - A

21

TRIM, EDGE NAP - Order 400 mm of 78826.5 Was 6909932 - D

22

6910505

SCREW

23

TRIM, EDGE NAP - Order 530 mm of 78826.5 Was 6909934 - D

24

6918139

COWLING Was 6910879 - A

24

6918140

REAR COWLING Was 6911021 - A

25

7228977

NUT, BUTTON Was 97098-8 - B

26

6912455

DECAL, FUSE BOX

27

97096-2

CIGARETTE LIGHTER

27

92299-7

PLUG

28

6914086

NUT

29

100331-01U

SCREW

Выбрано товаров: 32
