Запчасти Bobcat VR530C FRAME MAIN FRAME

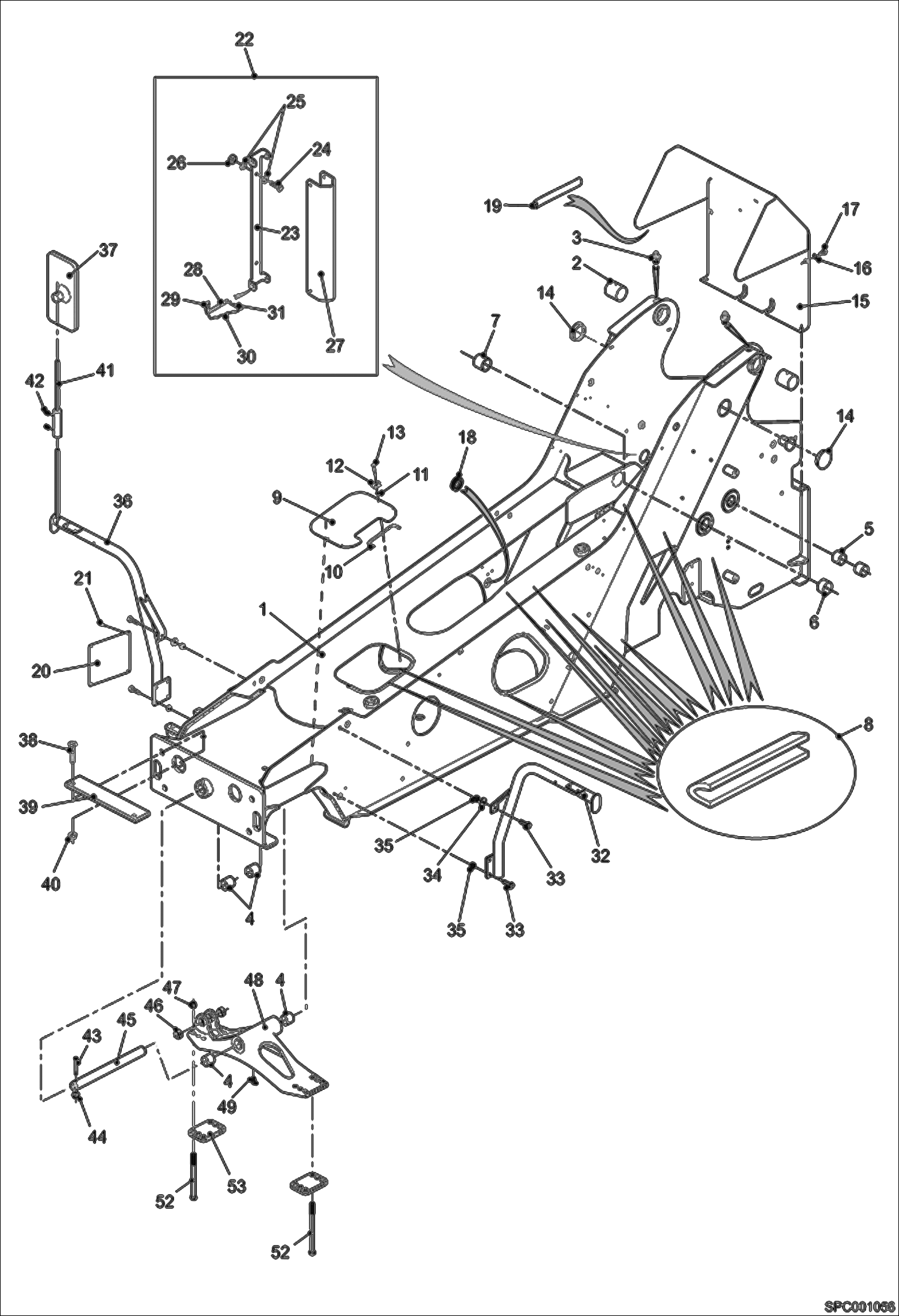

Схема запчастей Bobcat VR530C - FRAME MAIN FRAME

Артикул

Название

Примечание

Количество

1

6915048

FRAME Was 6913903

1

6915048

FRAME

2

7213359

BEARING, SWING Was 77380-4 - A

3

01775-6

GREASE NIPPLE

4

70811-5

BUSHING BEARING 50X55 L 50

5

6909439

BUSHING

6

70811-5

BUSHING BEARING 50X55 L 50 Was 77261-6

7

6909439

BUSHING Was 70811-5

8

80919-4

CLIP - 1METER 3000 mm (118.11'') long

9

79123-6

PLATE

10

79129-3

SEAL

11

13415-5

WASHER

12

79124-4

NUT

13

010338-02X

SCREW

14

6909712

HYDRAULIC OPERATION

15

6908250

PLATE

16

01719-4

WASHER

17

01604-8

SCREW

18

79288-7

GROMMET ASM56-38-46-10

19

62736-4

SEAL BULK/METER 1000 mm (39.37'') long

20

PLATE, SERIAL NO. NAP

21

43824-2

RIVET

22

6912354

RAM ABUTMENT ASSY W/Ref. 23-31

23

96344-7

BRACKET

24

4CM825

BOLT Was 01597-4 - B

25

01697-2

WASHER

26

01681-6

NUT Was 51851-4 - B

27

96338-9

STOP

28

7215740

PIN, LOCKING Was 6908976 - A

29

7168942

RING Was 58158-7 - B

30

7215741

CHAIN 500 mm (19.68'') long Was 48792-6 - A

31

95218-4

PIN

32

92088-4

BRACKET L.H.

33

01607-1

SCREW

34

000350-21R

WASHER

35

100345-09A

NUT

36

92085-0

SUPPORT R.H.

37

100432-51C

MIRROR, SIDE REAR Was 6922760 - A

38

1CM1040

BOLT Was 01608-9 - B

38

010329-24T

SCREW

39

6913019

ARM ABUTMENT

39

6914220

Arm abutment

40

100345-09A

NUT

41

6914566

EXTENSION

42

6910619

SCREW

43

7CM10100

SCREW HEX Was 65397-2 - A

44

7218933

SEAT Was 7181512 - B

45

6909147

SPINDLE

46

32974-8

BUSH

47

100345-20M

NUT

48

6911386

SUPPORT

49

01782-2

LUBRICATOR

52

48500-3

SCREW

53

101241-25J

AXLE FIX PLATE

Выбрано товаров: 54
