Запчасти Bobcat VR530C SECURITY CIRCUIT (Frame Leveling) ELECTRICAL SYSTEM

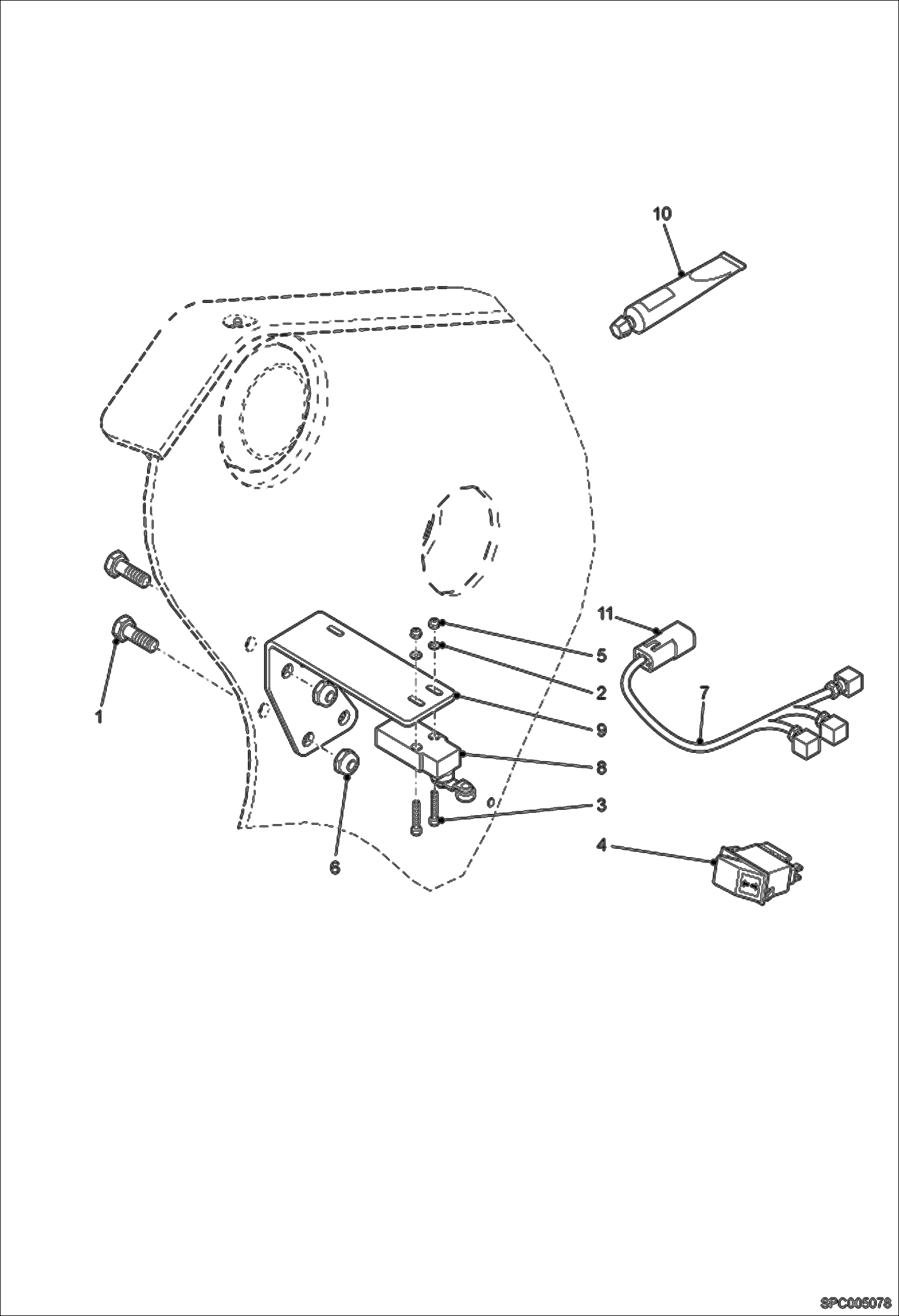

Схема запчастей Bobcat VR530C - SECURITY CIRCUIT (Frame Leveling) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

01607-1

SCREW Was 01606-3 - A

2

007346-02F

WASHER

3

53100-4

SCREW

4

96598-8

SWITCH

5

100345-04U

NUT

6

100345-09A

NUT

7

6910891

WIRE HARNESS

8

6911738

SWITCH

9

6918226

SUPPORT Was 6915030 - A

10

6901596

GREASE

11

6913818

CABLE FIXING SADDLE

Выбрано товаров: 11
