Запчасти Bobcat VR530C ELECTRICAL CIRCUIT ENGINE ELECTRICAL SYSTEM

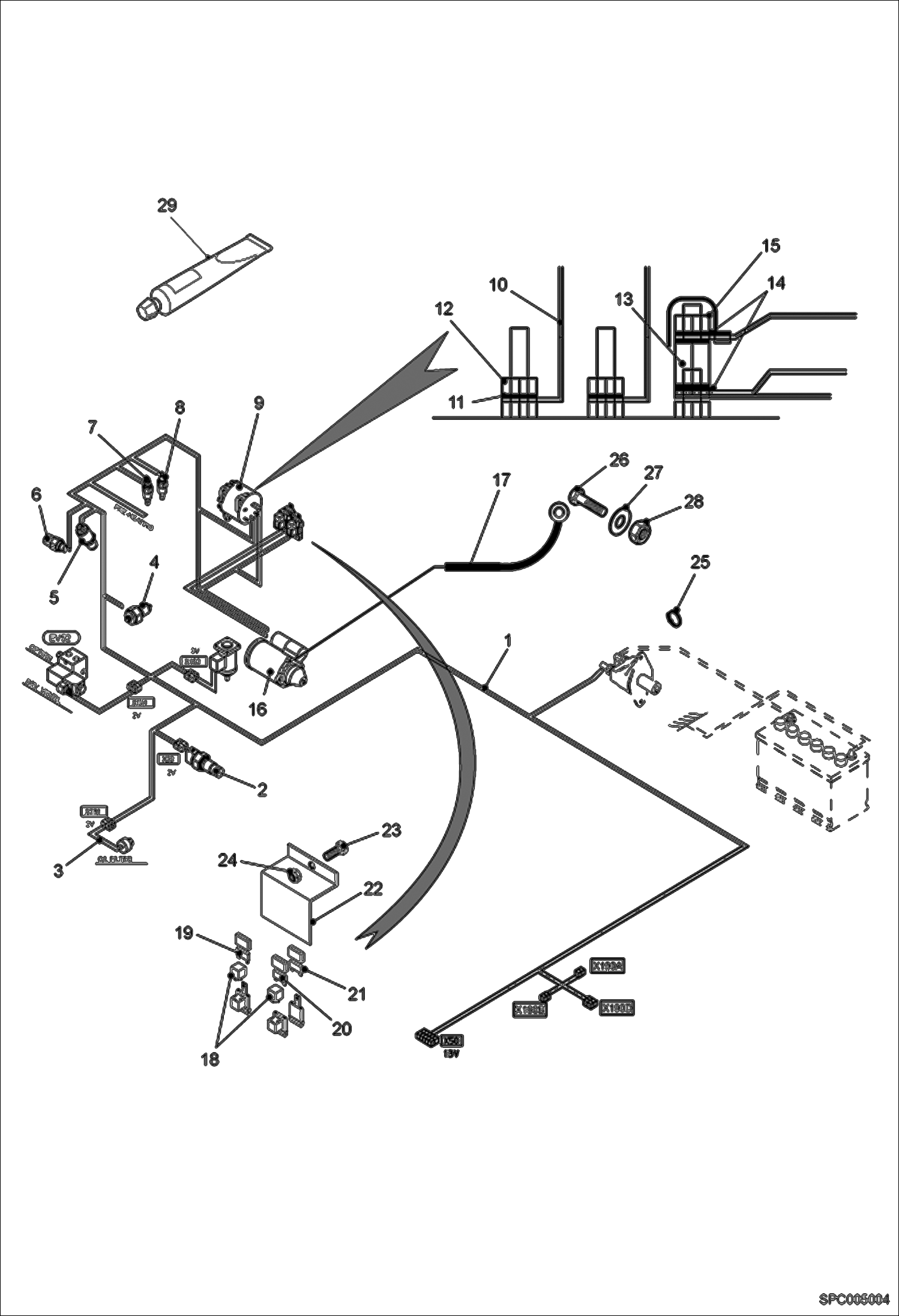

Схема запчастей Bobcat VR530C - ELECTRICAL CIRCUIT ENGINE ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

6915845

ENGINE WIRING HARNESS Was 6911724 - A

2

6917185

SENDER, TEMP OIL HYD

3

6912549

FILTER, PLUGGING INDICATOR

4

26278-2

CONTACT

5

7022466

SOLENOID 12V Was 97175-4 - A

6

6911895

THERMOSTAT

7

6911911

SENDER

8

6911400

WATER SWITCH TEMPER.

9

6911377

ALTERNATOR ESA 85 AMP (EUROPE)

10

79926-2

CONNECTION

11

13415-5

WASHER

12

4DM5

NUT Was 01665-9 - A

13

96613-5

SPACER

14

13416-3

WASHER

15

01666-7

NUT

16

6911913

STARTER MOTOR

17

018472-83R

CABLE

18

79930-4

RELAY black

19

6909767

FUSE 70 A 70A

20

79947-8

FUSE 50A 50A

21

79946-0

FUSE 40A 40A

22

6916979

PROTECTOR Was 78895-0 - A

23

1CM820

BOLT Was 01596-6 - B

24

01681-6

NUT Was 51851-4 - B

25

7214998

STRAP, TIE Was 50917-4 - A

26

01606-3

SCREW

27

000350-03W

WASHER

28

100345-09A

NUT

29

6901596

GREASE

Выбрано товаров: 29
