Запчасти Bobcat VR530C HYDRAULIC CONTROL VALVE (Tilt Section) HYDRAULIC SYSTEM

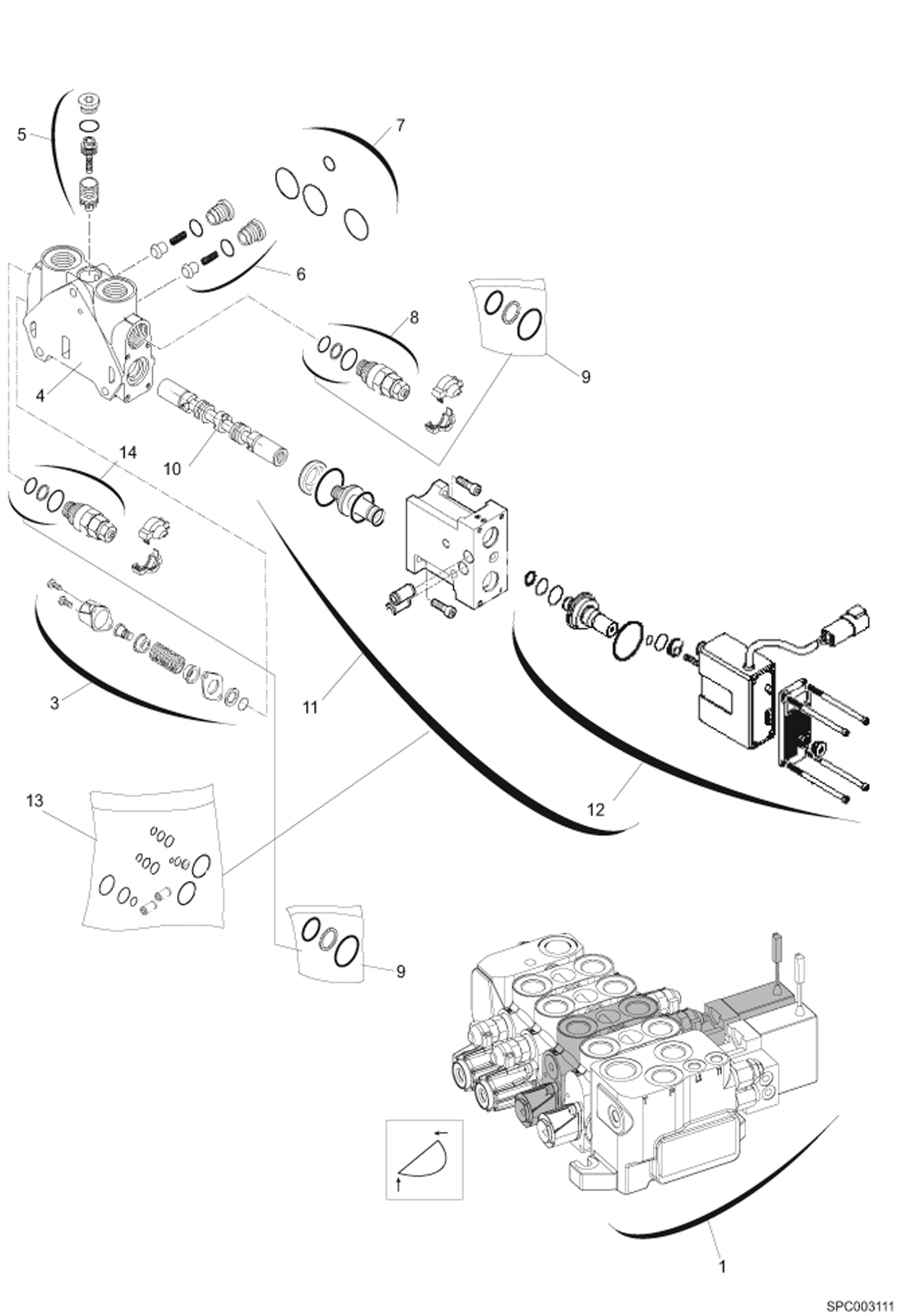

Схема запчастей Bobcat VR530C - HYDRAULIC CONTROL VALVE (Tilt Section) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6912490

DISTRIBUTOR

3

6910714

SPOOL RETURN

4

VALVE

5

97302-4

KIT PRESS COMP

6

97303-2

NO RETURN VALVE KIT

7

97295-0

SEAL KIT

8

6685249

VALVE,RELIEF W/Ref. 9 Was 54090-6 - B,D

9

6910713

SEAL KIT

10

SPOOL, VALVE

11

6912126

ELECTROHYDRO ACTUATION W/Ref. 13

12

6910715

VALVE, TELESCOPIC

13

6910717

SEAL KIT

14

6685249

VALVE,RELIEF W/Ref. 9 Was 54090-6 - B,D

Выбрано товаров: 13
