Запчасти Bobcat VR530C HYDRAULIC CONTROL VALVE (Assy) HYDRAULIC SYSTEM

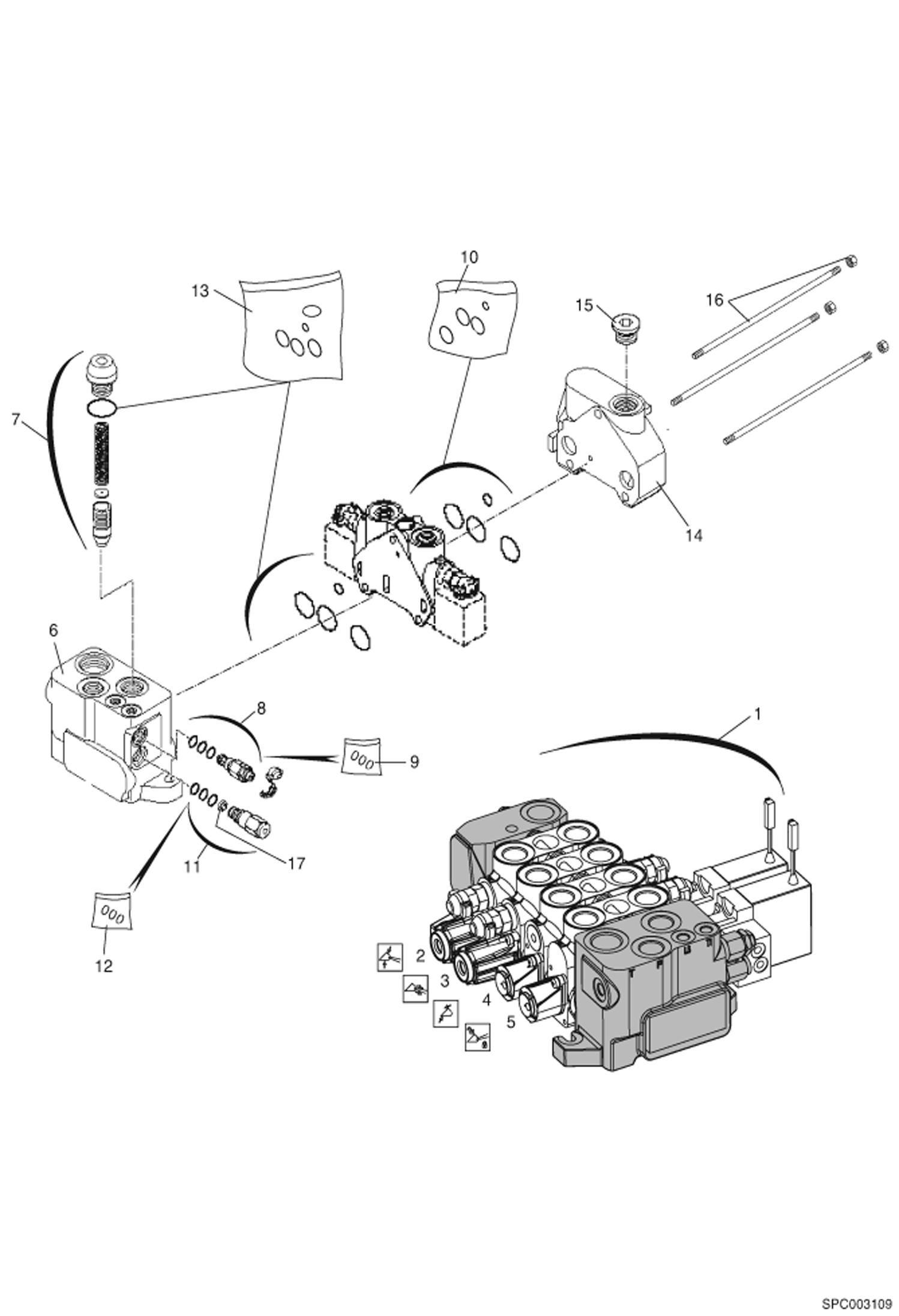

Схема запчастей Bobcat VR530C - HYDRAULIC CONTROL VALVE (Assy) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6912490

DISTRIBUTOR See Illustration HEATING/VENTILATION FAN/ EM1793

2

6910749

LIFTING ELEMENT See Illustration HYDRAULIC CONTROL VALVE/ EM8678

3

6910748

TELESCOPE ELEMENT

4

7012479

ELEMENT, TELESCOPE Was 6910745 - A

5

7012480

ELEMENT, EQUIPMENT See Illustration HEATING/VENTILATION FAN/ EM1793 Was 6910743 - A

6

6910742

INLET ELEMENT

7

6910704

REGULATION KIT load sense relief valve

8

97300-8

PRESS RELIEF VALVE 265 bar - W/Ref. 9

9

6910708

SEAL KIT

10

97295-0

SEAL KIT

11

6910705

FLOW REGULATOR W/Ref. 12 & 17

12

6910708

SEAL KIT

13

6910710

SEAL KIT

14

6910706

OUTLET ELEMENT

15

6910709

PLUG

16

6910707

TIE ROD KIT

17

6687064

FILTER Was 97297-6 - A

Выбрано товаров: 17
