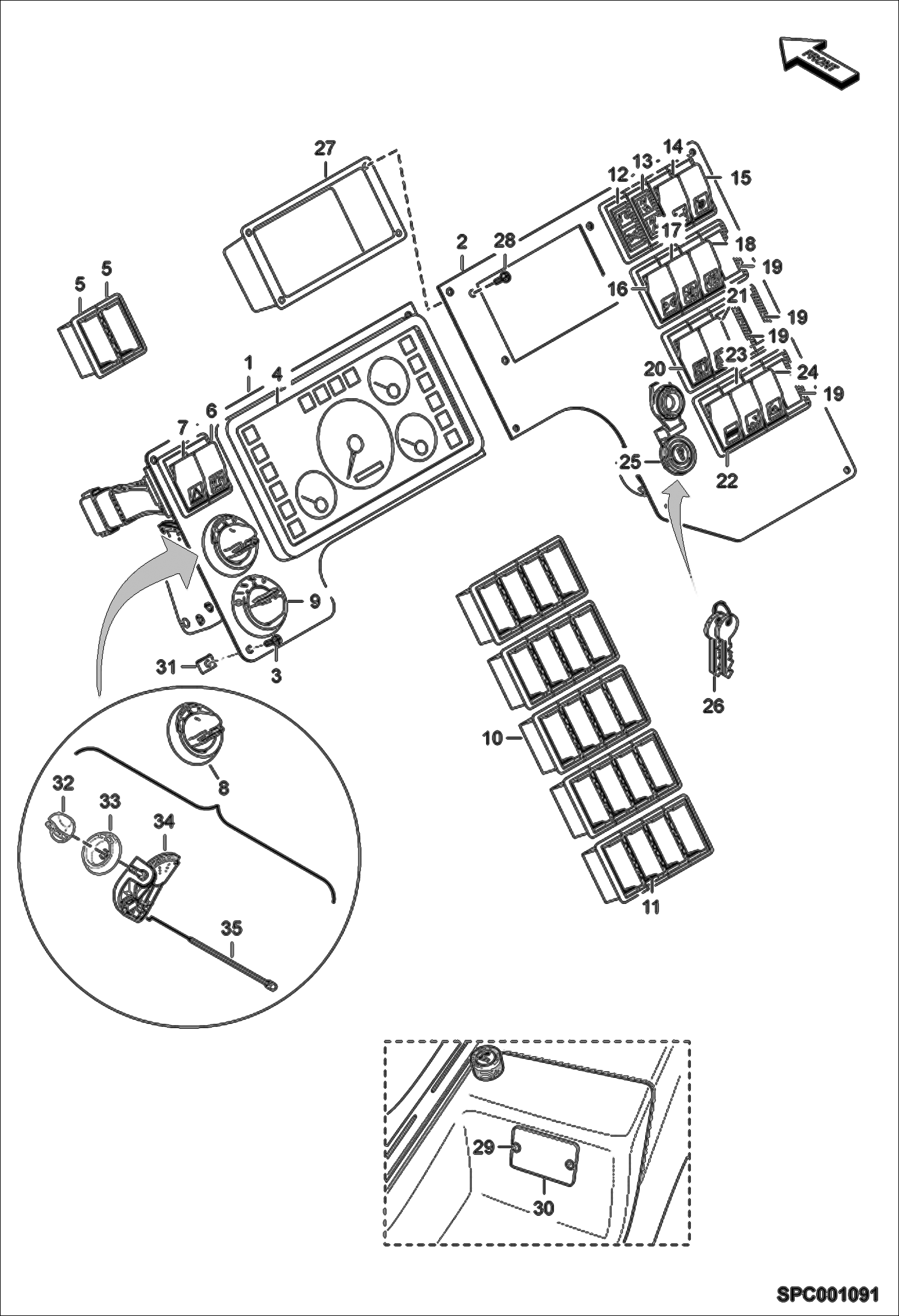

Запчасти Bobcat VR518 CONTROL PANEL (S/N 364611001 - 11999) MAIN FRAME

1

96080-7

PLATE LH

2

97534-2

CONTROL PANEL CARTER RH Was 6914170 - A

3

6910505

SCREW

4

6909356

INSTRUMENT , MODULE

5

80220-7

SUPPORT W/Ref. 6-7

6

96591-3

SWITCH, BEACON

7

96590-5

SWITCH, HAZARD

8

6926588

HEATING CONTROL includes cable - W/Ref. 32-35 Was 96609-3 - A

9

96608-5

SWITCH

10

80220-7

SUPPORT For outer left and right positions

11

80221-5

SUPPORT For middle positions

12

96595-4

INDICATOR, TRAILER TURN

13

96594-7

INDICATOR, STEERING MODE

14

96593-9

SWITCH, STEERING MODE

15

96592-1

SWITCH, LEVER

16

96600-2

SWITCH, HEADLIGHT

17

96601-0

SWITCH, LIGHT

18

96597-0

SWITCH, LIGHT FOG REAR

19

65784-1

CAP option - reverse fan

20

96602-8

SWITCH, REAR WIPER

21

96603-6

SWITCH, WIPER ROOF option

22

97519-3

SWITCH, TRANSMISSION MODE

23

6911728

LOCKING-DECOMPRESSION SWITCH front aux hyd - on/off Was 96606-9 - A

24

6910895

SWITCH, HYD AUX

25

6928151

SWITCH, IGNITION (WITHOUT CAP) W/Ref. 25-26 Was 55438-6 - B

26

6926414

SET OF KEYS Was 57189-3 - A

27

6910884

BOX

28

80107-6

SCREW

29

6914586

SUPPORT

30

6910313

PLATE

31

6909903

CLIPS

32

7012297

CONTROLLER

33

7012298

CAP

34

7012299

CONTROL BLOCK

35

CABLE NAP - Order Ref. 8 Was 7015535 - D
