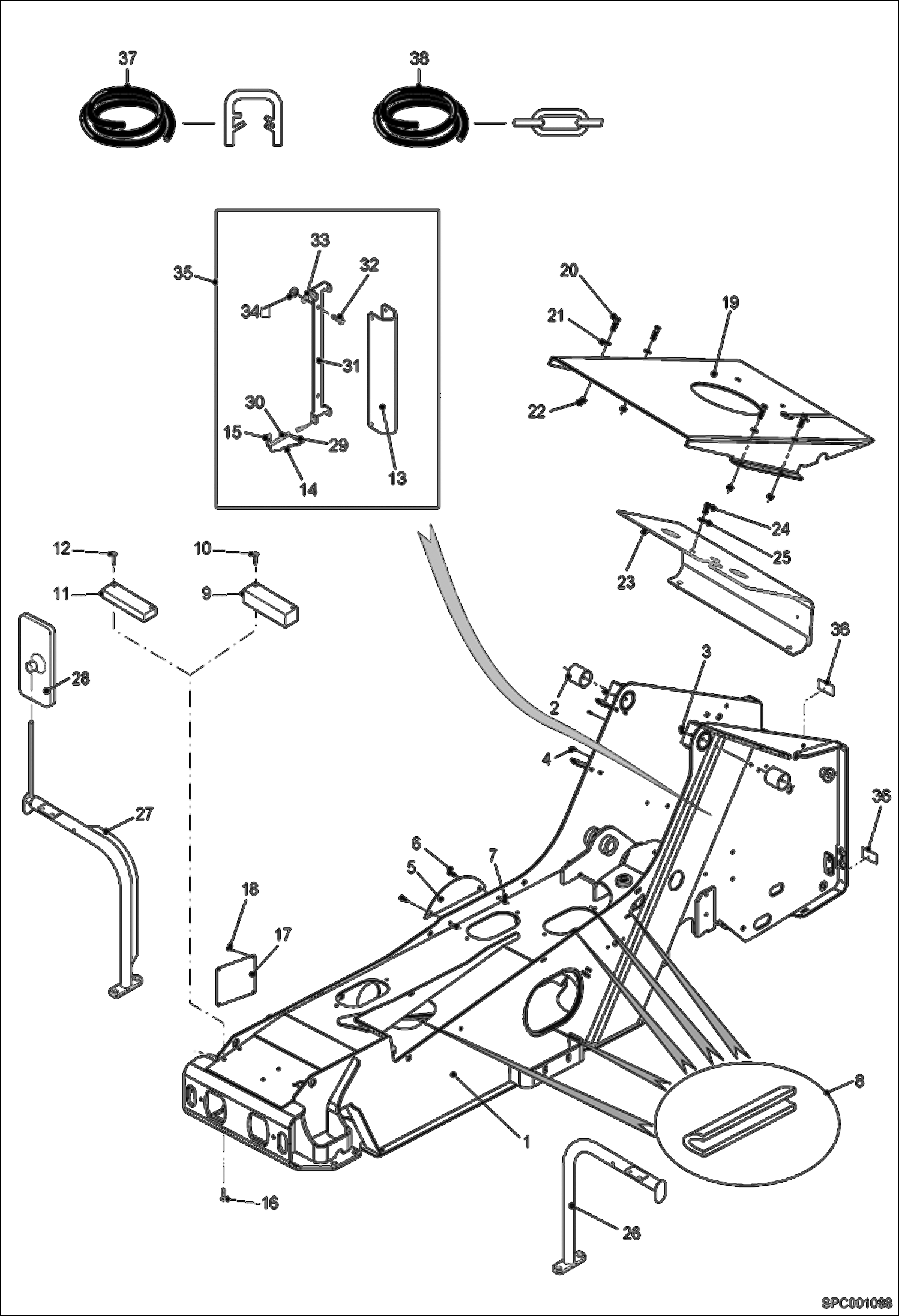

Запчасти Bobcat VR518 FRAME MAIN FRAME

1

6911488

FRAME

2

7213359

BEARING, SWING Was 77380-4 - A

3

01775-6

GREASE NIPPLE

4

96541-8

RIVET

5

92708-7

PLATE

6

01605-5

SCREW

7

100345-09A

NUT

8

TRIM, EDGE NAP - 2500 mm (98.42'') long - order Ref. 37

9

6914715

STOP 90 MM 90 mm - for 17'' tires Was 84489-4 - A

10

01638-6

SCREW

11

6914693

STOP 50 MM 50 mm - for 20'' tires Was 84489-4 - A

12

01638-6

SCREW

13

96336-3

STOP

14

CHAIN NAP - 500 mm (19.68'') long - order Ref. 38

15

7168942

RING Was 58158-7 - B

16

01606-3

SCREW

17

PLATE, SERIAL NO. NAP

17

PLATE, SERIAL NO. NAP

18

43824-2

RIVET

19

6922688

REAR COVER

20

01598-2

SCREW

21

000350-02V

WASHER

22

01681-6

NUT Was 51851-4 - B

23

6922689

REAR COVER Was 6916267 - A

24

1CM820

BOLT Was 01596-6 - B

25

000350-20Q

WASHER

26

89097-0

SUPPORT

27

89096-2

SUPPORT

28

100432-51C

MIRROR, SIDE REAR

29

95218-4

PIN

30

7215740

PIN, LOCKING Was 6908976 - A

31

96342-1

BRACKET

32

01598-2

SCREW

33

000350-02V

WASHER

34

01681-6

NUT Was 51851-4 - B

35

RAM ABUTMENT ASSY W/Ref. 13-15 & 29-34

36

7214281

DECAL, REFLECTIVE Was 59736-9 - A

37

80919-4

CLIP - 1METER bulk - sold per meter

38

7215741

CHAIN bulk - sold per meter Was 48792-6 - A
