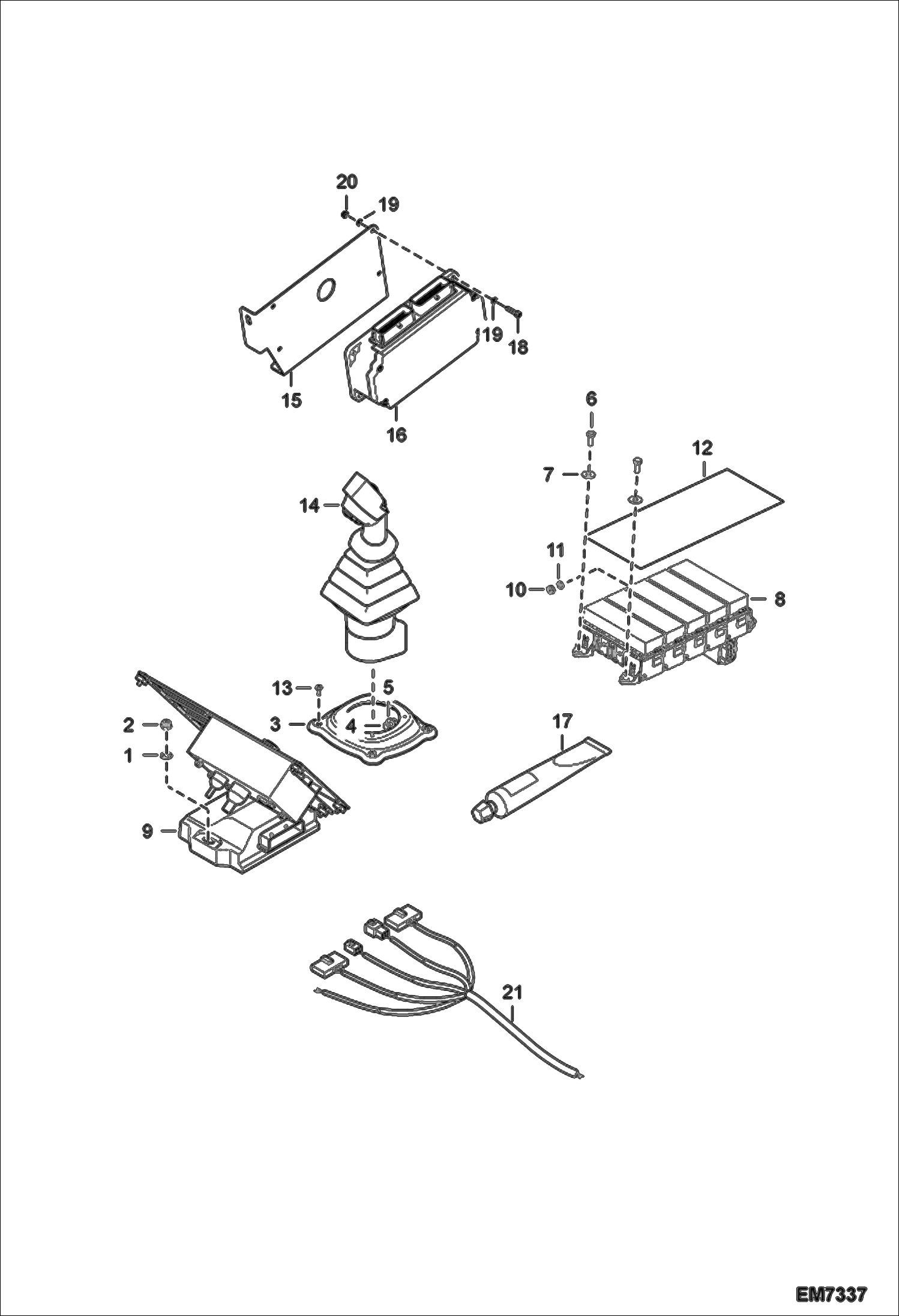

Запчасти Bobcat V723 JOYSTICK / SUSMIC INSTALLATION ELECTRICAL SYSTEM

1

01697-2

WASHER

2

01681-6

NUT Was 51851-4 - B

3

6909205

COVER , DUST

4

01666-7

NUT

5

01717-8

WASHER

6

01590-9

SCREW

7

29272-2

WASHER

8

FUSE BOX NAP

9

6911325

ELECTRIC BOX

10

01666-7

NUT

11

94574-1

WASHER

12

6912455

DECAL, FUSE BOX

13

6910697

SCREW

14

6915268

MANIPULATOR Was 6910314 - A

15

6923638

SUPPORT Was 6909206 - A

16

6922919

BCC 570 also Order Ref. 21 Was 6919190 - A

16

6919191

CONTROL BOX Was 6913048 - A

17

6901596

GREASE

18

61416-4

SCREW

19

007346-02F

WASHER

20

100345-04U

NUT

21

6927147

CONNECTOR, INTERFACE
