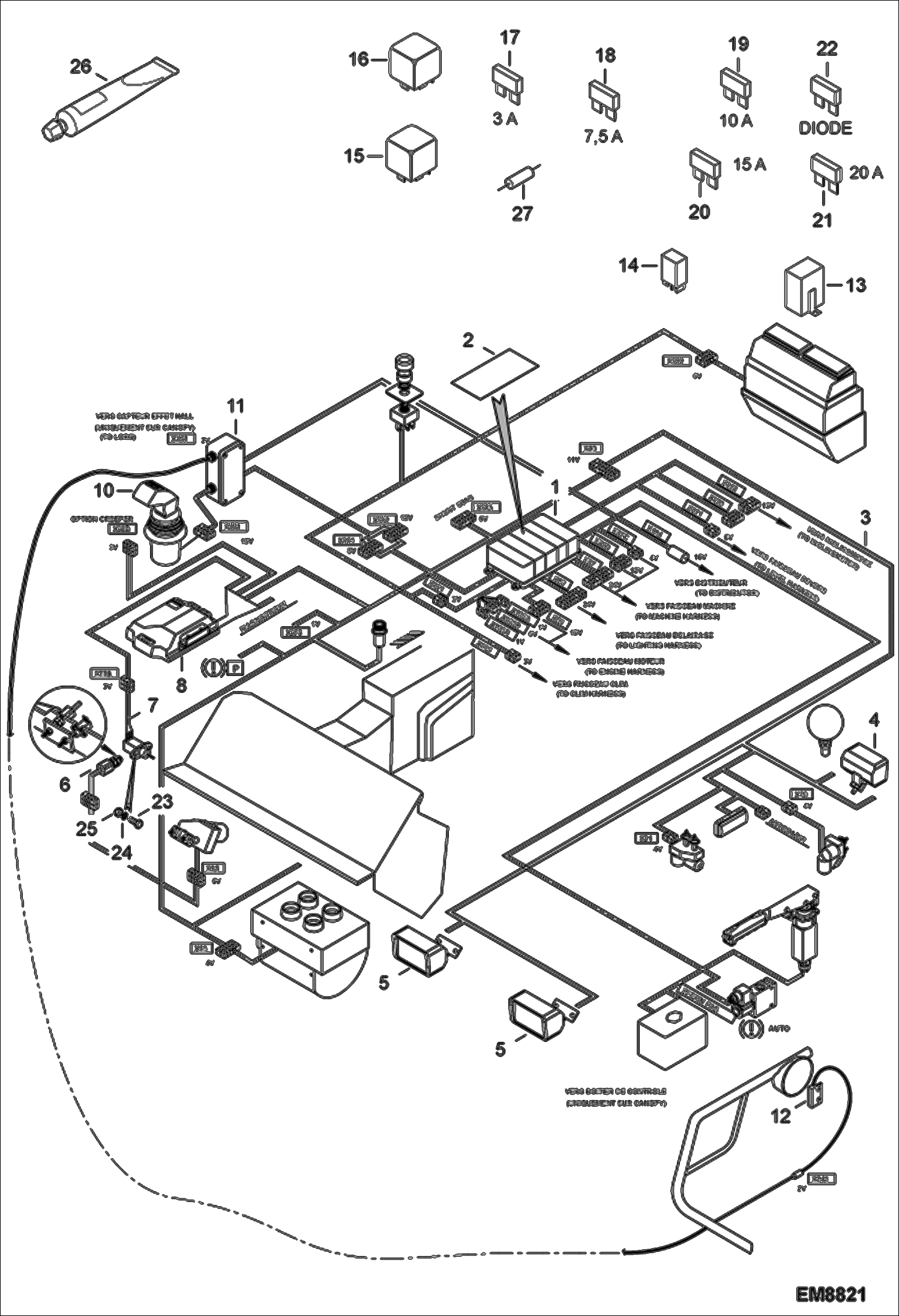

Запчасти Bobcat V723 ELECTRICAL CIRCUIT CAB ELECTRICAL SYSTEM

1

6911727

FUSE BOX ASSY AND WIRING W/Ref. 13-22

2

6912455

DECAL, FUSE BOX

3

97236-4

WIRING

4

78816-6

WORK LIGHT REAR

4

6960571

BULB Was 7200932 - A

5

78815-8

WORK LIGHT

5

6960571

BULB Was 7200932 - A

6

6918227

SWITCH DETECTOR Was 6909324

7

SENSOR , INCHING NLA - Order 6934897 - Was 6909383 - A

8

6911325

ELECTRIC BOX

10

6915268

MANIPULATOR Was 6910314 - A

11

6922919

BCC 570 Was 6919190 - A

11

6919191

CONTROL BOX Was 6913048 - A

12

6909372

SENSOR , LORS ,HALL EFFECT ,

13

96623-4

WINKER RELAY

14

6910955

RELAY,MICRO

15

79930-4

RELAY black

16

100411-05U

RELAY green

17

64120-9

FUSE 3A - 3 A

18

57792-4

FUSE 7.5A 7.5A - 7.5 A

19

57752-8

FUSE 10A - 10 A

20

57793-2

FUSE 15A - 15 A

21

57753-6

FUSE 20A - 20 A

22

80226-4

DIODE

23

01478-7

SCREW

24

6910952

WASHER JZC5

25

100345-05V

NUT

26

6901596

GREASE

27

101472-20M

DIODE
