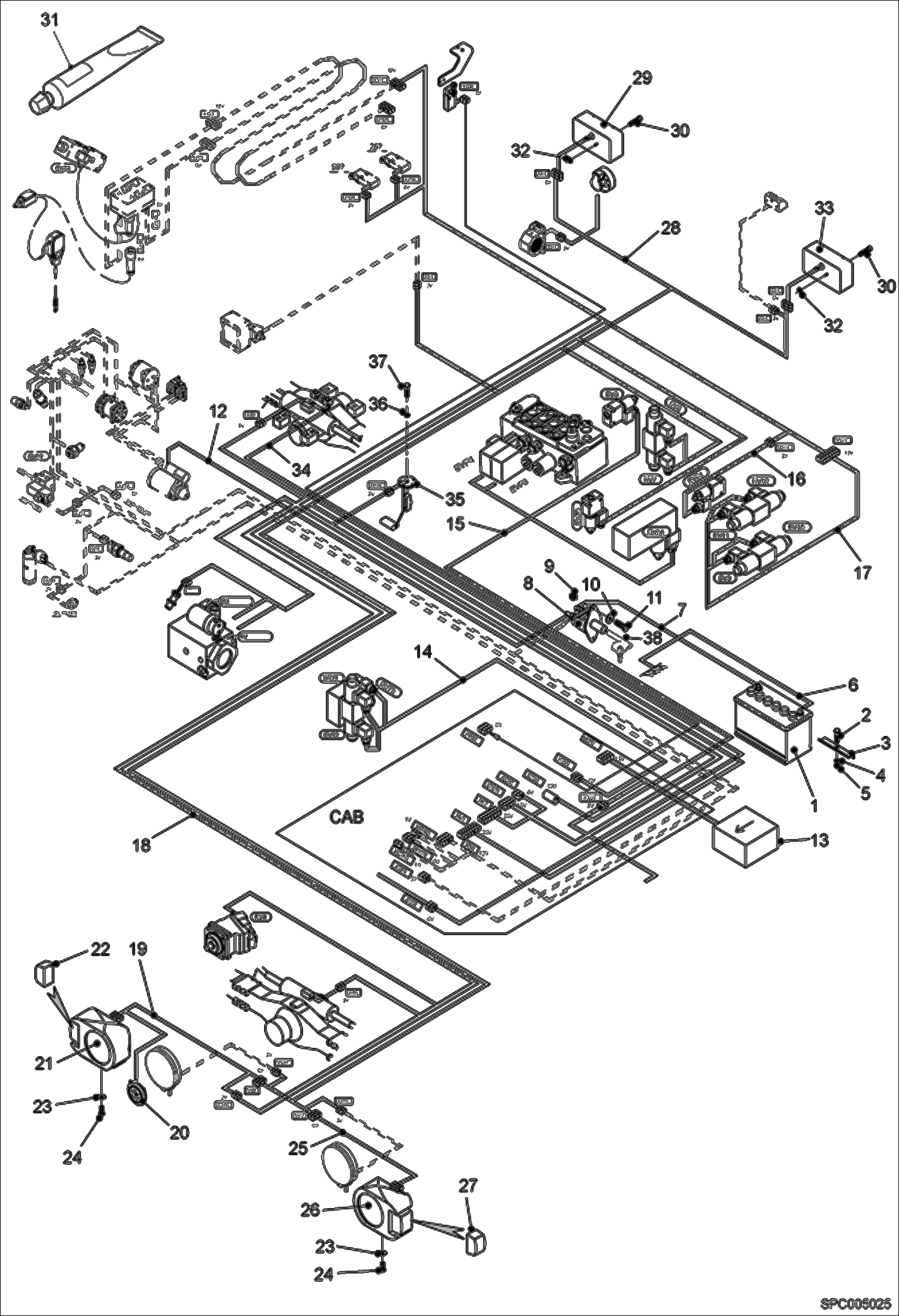

Запчасти Bobcat V723 ELECTRICAL CIRCUIT CHASSIS ELECTRICAL SYSTEM

1

6665427

BATTERY, DRY 950 AMP Was 96058-3 - A

2

01598-2

SCREW

3

77136-0

BRACKET

4

000350-02V

WASHER

5

01681-6

NUT Was 51851-4 - B

6

78869-5

BATTERY CABLE negative

7

79861-1

BATTERY CABLE positive

8

65764-3

BATTERY, DISCONNECT W/Ref. 38

9

100345-06W

NUT

10

000350-01U

WASHER

11

01591-7

SCREW

13

6914946

Inclinometer Was 6911367 - A

14

6910891

WIRE HARNESS

15

6911357

HARNESS , VALVE

16

6913674

HARNESS

17

96589-7

WIRE HARNESS

18

6911726

HARNESS , MAIN

19

6917889

HARNESS Was 96587-1

20

100417-11D

HORN

21

79533-6

LIGHT RH - W/Ref. 22

21

6666570

BULB 40W Was 000405-62P - A

21

27362-3

BULB, HEAD LIGHTS 4W

22

27089-2

BULB, FRONT AND REAR LIGHT 21W

22

59758-3

RIGHT FLASHING LIGHT COVER

23

01718-6

WASHER

24

1CM820

BOLT Was 01596-6 - B

25

79539-3

WIRE HARNESS LH

26

79534-4

LIGHT LH - W/Ref. 27

26

6666570

BULB 40W Was 000405-62P - A

26

27362-3

BULB, HEAD LIGHTS 4W

27

59948-0

LEFT FLASHING LIGHT COVER

27

27089-2

BULB, FRONT AND REAR LIGHT 21W

28

98087-0

HARNESS , LIGHT

29

7225546

LIGHT, REAR RH Was 82265-0 - A

29

97260-4

GLASS,RT LIGHT

29

27089-2

BULB, FRONT AND REAR LIGHT 21W

29

6909955

BULB 21/5W

30

100329-01C

SCREW Was 33786-5

31

6901596

GREASE

32

7225547

WASHER Was 6921479 - A

33

7225545

LIGHT, REAR LH Was 82266-8 - A

33

97261-2

GLASS,LFT LIGHT

33

27089-2

BULB, FRONT AND REAR LIGHT 21W

33

6909955

BULB 21/5W

34

WIRE HARNESS

35

6909815

FUEL GAUGE

36

13415-5

WASHER

37

6918271

SCREW

38

66181-9

HANDLE
