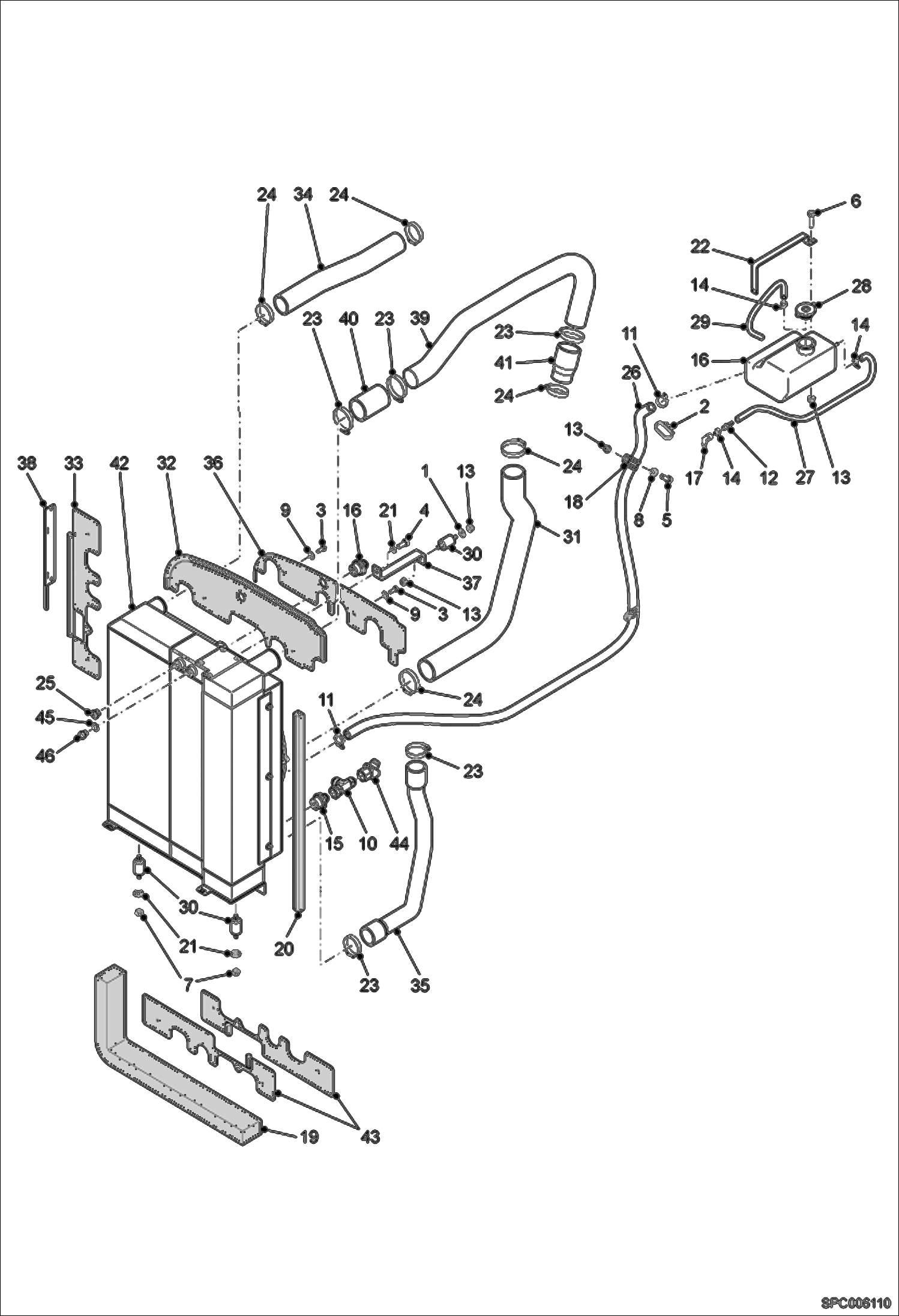

Запчасти Bobcat V723 COOLING SYSTEM INSTALLATION (S/N A8HP11001 - 12060, A8HK11001 - 11002) POWER UNIT

1

000350-02V

WASHER

2

6624289

STRAP, TIE

3

01590-9

SCREW

4

1CM820

BOLT Was 01596-6 - B

5

4CM825

BOLT Was 01597-4 - B

6

01598-2

SCREW

7

4DM8

NUT Was 01668-3 - B

8

01697-2

WASHER

9

01717-8

WASHER

10

008372-34M

UNION

11

11734-1

COLLAR BC 9 20X32

12

014375-97F

UNION

13

01681-6

NUT Was 51851-4 - B

14

5HM14

CLAMP Was 62231-6 - A

15

68609-7

UNION 1.1/16 JIC 1 BSPP

16

78688-9

EXPANSION TANK

17

78745-7

ELBOW PIECE

18

84729-3

COLLAR

19

88394-2

ADHESIVE SPONGE

20

88395-9

ADHESIVE SPONGE

21

89519-3

WASHER

22

90490-4

PLATE

23

100369-55H

COLLAR

24

42HS30

CLAMP, HOSE Was 100369-80K - A

25

100374-14H

PLUG

26

6908901

HOSE D19 L2050

27

6908902

HOSE D10 L1080

28

6909875

PLUG , RADIATOR Was 6908975 - B, D

29

6910264

HOSE D7L400

30

6910966

BUSHING , RUBBER , RADIATOR

31

6910970

HOSE

32

6911746

BEAD L1010 BULK/METER

33

6914219

SEAL

34

6919939

HOSE

35

6921108

HOSE

36

6921188

PLATE

37

6921191

PLATE

38

6921241

PLATE

39

6923939

PIPE

40

6924096

SLEEVE

41

6924097

REDUCER SLEEVE

42

6933946

RADIATOR See Illustration RADIATOR/ EM1385 Was 6924387 - A

43

6925059

SEAL

44

12K8

ELBOW

45

34765-8

COPPER RING

46

6911759

PLUG MALE M14X1.25 ALLEN
