Запчасти Bobcat V723 SEAT SUSPENSION MAIN FRAME

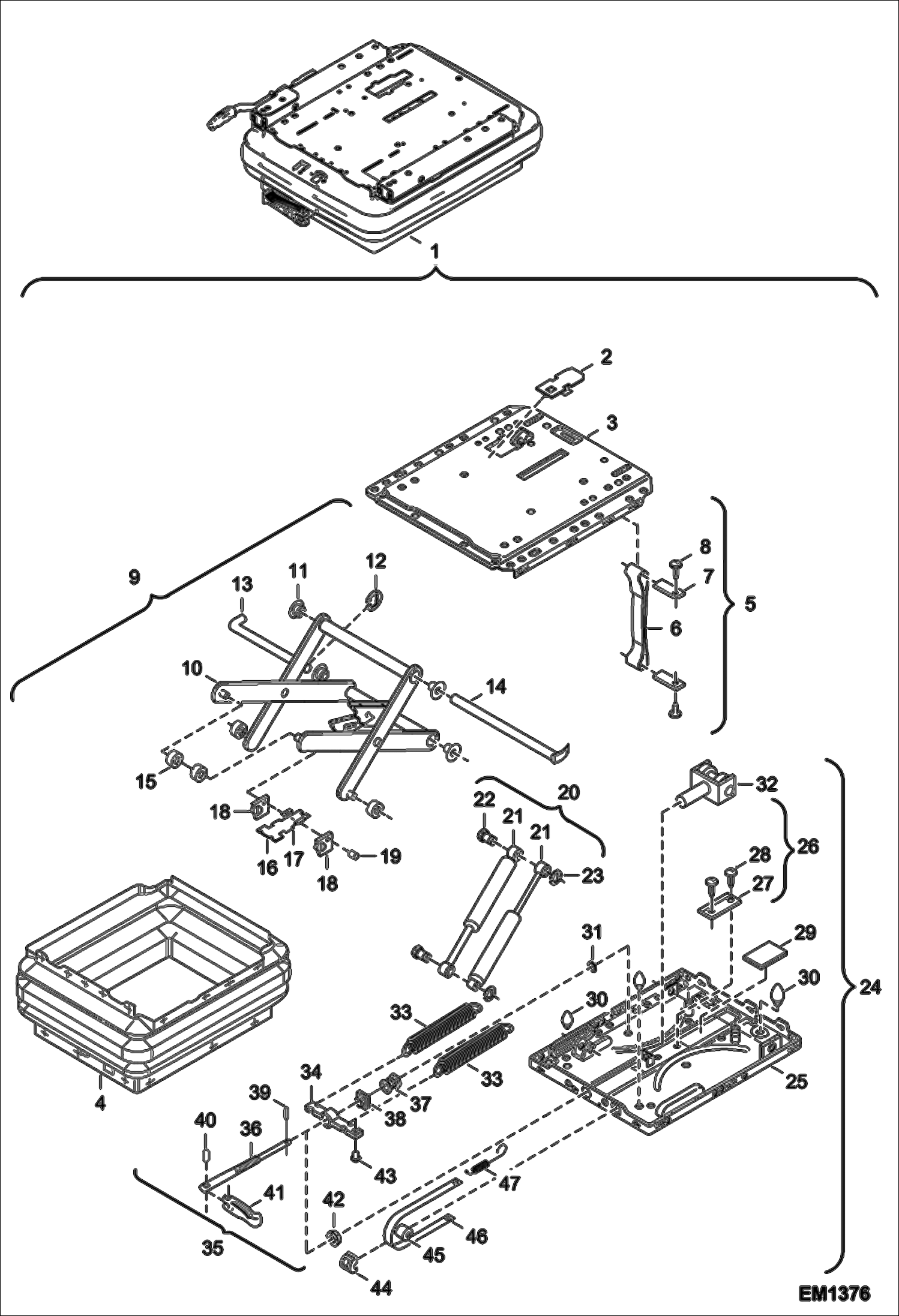

Схема запчастей Bobcat V723 - SEAT SUSPENSION MAIN FRAME

Артикул

Название

Примечание

Количество

1

SUSPENSION ASSY NAP - Ref. 2-47

2

97100-2

COVER

3

97101-0

BRACKET

4

97103-6

BELLOW

5

97106-9

STRAP Ref. 6-8

6

STRAP NAP - Order Ref. 5

7

97105-1

PLATE

8

97104-4

RIVET

9

97110-1

ARM Ref. 10-19

10

ARM NAP - Order Ref. 9

11

97108-5

BUSHING

12

6650440

WASHER Was 97109-3 - A

13

6650499

BOLT Was 97107-7 - A

14

97111-9

PIVOT

15

97112-7

ROLLER

16

97113-5

PLATE

17

97114-3

SPRING

17

7012325

SPRING

18

97115-0

PLATE

19

6650470

BOLT Was 97116-8 - A

20

97118-4

CYLINDER Ref. 21-23

21

CYLINDER NAP - Order Ref. 20

22

6650475

BOLT Was 97117-6 - A

23

6650441

WASHER Was 97119-2 - A

24

97140-8

BOTTOM BRACKET Ref. 25-33

25

SUPPORT NAP - Order Ref. 24

26

97122-6

BRACKET Ref. 27-28

27

PLATE NAP - Order Ref. 26

28

97121-8

RIVET

29

97123-4

PLATE

30

97124-2

SET OF CUP

31

6650459

WASHER Was 97125-9 - A

32

97120-0

BRACKET

33

97127-5

SPRING

34

97129-1

BRACKET

35

97134-1

ROD Ref. 36-42

36

ROD NAP - Order Ref. 35

37

97126-7

STOP

38

01670-9

NUT

39

97131-7

PIN

40

97132-5

PIN

41

97133-3

HANDLE

42

97139-0

BUSHING

43

97130-9

STOP

44

97135-8

GUIDE

45

97136-6

ROLLER

46

97137-4

TAPE

47

97138-2

SPRING

Выбрано товаров: 48
