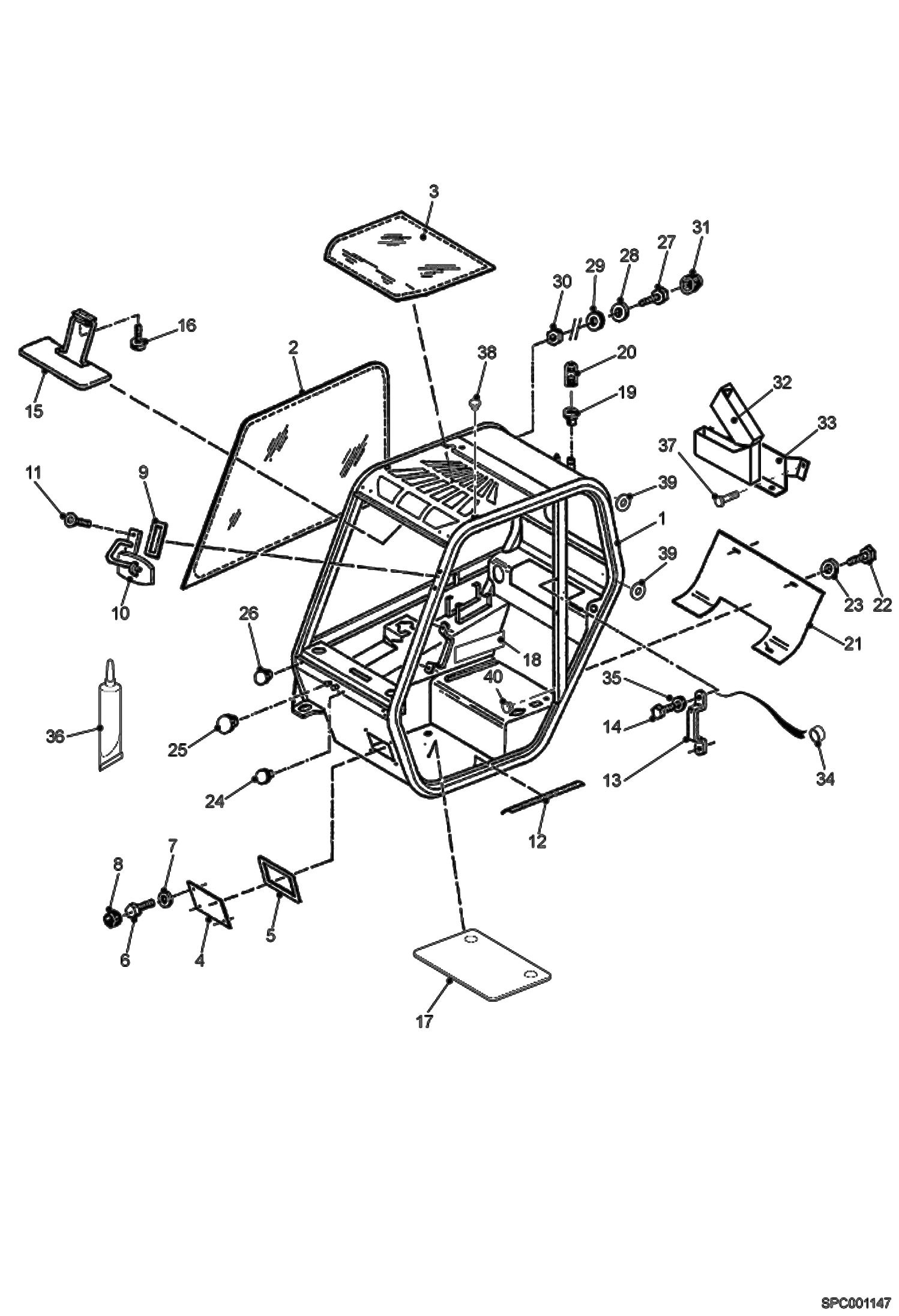

Запчасти Bobcat V723 OPERATOR CANOPY (A8HK11001 & Above) MAIN FRAME

1

6911003

FRAME

2

6908788

RH WINDOW PANE RH

3

6908786

WINDOW, TOP ROOF

4

6909200

COVER

5

6909929

SEAL , FOAM 10X4 L 700

6

01590-9

SCREW

7

29272-2

WASHER

8

63332-1

CAP

9

SEAL NAP - Order Ref. 10

10

79903-1

MIRROR, SIDE REAR W/bracket

10

6925400

MIRROR, W/O BRACKET W/O bracket

11

6909997

SCREW FHC M6X16

12

6915508

NON SKID

13

63349-5

HANDLE

14

01591-7

SCREW

15

7024867

SUNSCREEN Was 79902-3 - B

16

6909998

SCREW , TBC 5X12

17

6914753

GROUND CARPET

18

6910908

FOAM STRIP

19

78818-2

CONNECTION

20

78819-0

PLUG

21

96074-0

SUPPORT

22

01590-9

SCREW

23

01696-4

WASHER

24

6909906

PLUG

25

6909907

PLUG

26

6909908

PLUG

27

1CM820

BOLT Was 01596-6 - B

28

6909963

WASHER, FIBER 13X22X2

29

000346-11V

WASHER

30

4DM8

NUT Was 01668-3 - B

31

63333-9

CAP , NUT 8

32

6708827

CONTAINER

33

6909786

MANUAL HOLDER BRACKETT

34

6914407

SPACER

35

29272-2

WASHER

36

64509-3

GLUE

37

6910937

SCREW

38

57702-3

PLUG

39

6910930

GUIDE

40

6910931

PLUG
