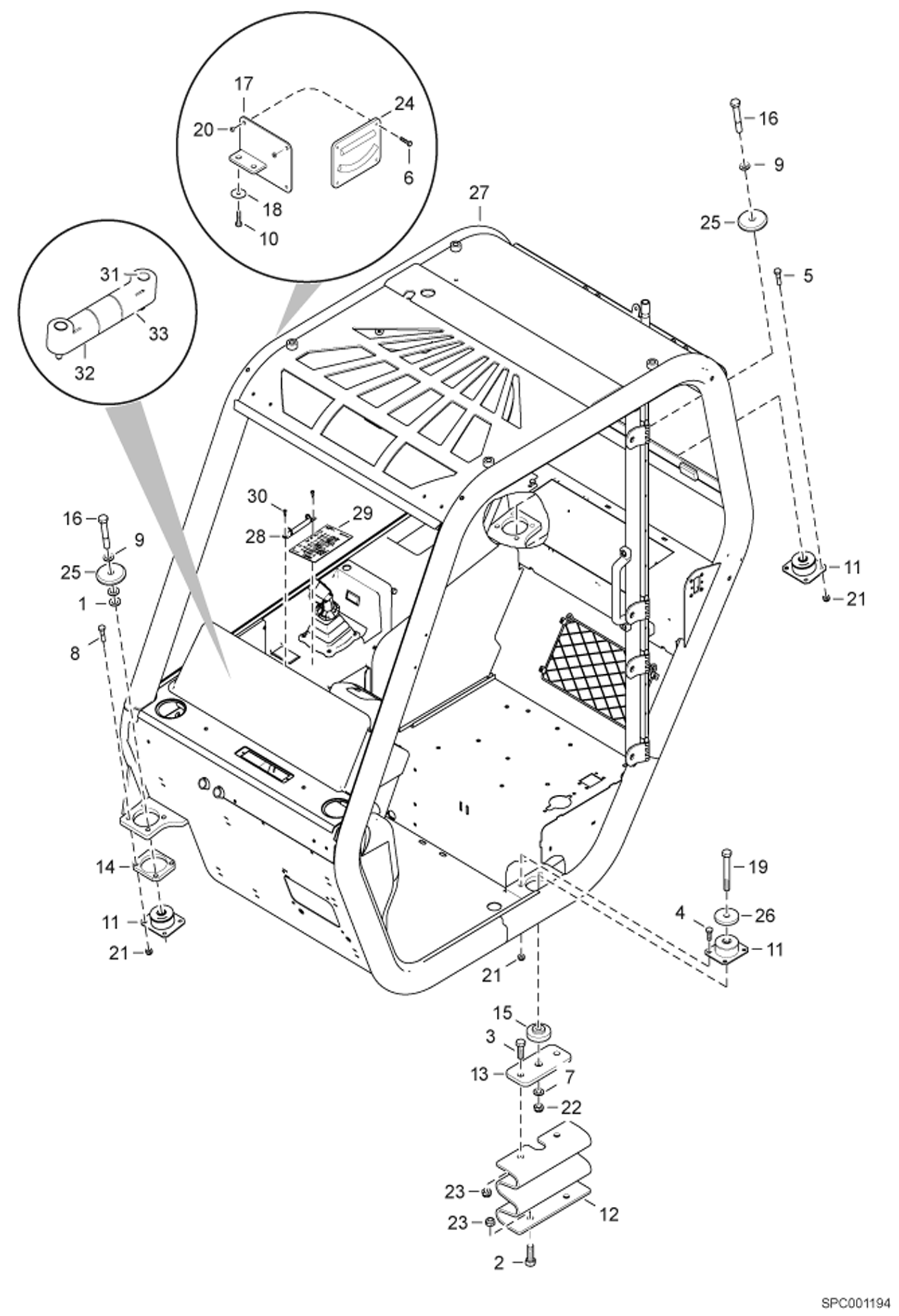

Запчасти Bobcat V723 CAB & FIXATION (S/N A8HL11000 & Above, A8HP11000 & Above) MAIN FRAME

1

000350-06A

WASHER

2

01547-9

SCREW

3

01549-5

SCREW

4

01606-3

SCREW

5

01607-1

SCREW

6

7220283

SCREW Was 01657-6 - A

7

01701-2

WASHER

8

1CM1045

BOLT Was 10944-7 - A

9

13778-6

WASHER

10

15354-4

SCREW

11

7214961

MOUNT, CAB Was 78021-3 - A

12

7214960

PLATE, ROPS Was 78856-2 - A

13

78867-9

SUPPORT

14

79868-6

SHIM

15

7214964

WASHER, CAB Was 79872-8 - A

16

7CM1680

BOLT Was 90245-2 - A

17

92303-7

CLINOMTR SUPPORT

18

94574-1

WASHER

19

8CM16120

SCREW Was 100338-07M - A

20

100345-04U

NUT

21

100345-09A

NUT

22

100345-15G

NUT

23

100345-16H

NUT

24

7220190

CLINOMETER Was 100416-32S - A

25

7214962

WASHER Was 6917690 - A

26

7214962

WASHER Was 6917690 - A

27

CAB NAP

28

78863-8

SUPPORT

29

INDEX CARD see accessories & options - tires

30

79864-5

SCREW

31

57G616

SCREW

32

7207851

LEVEL, WATER

33

7213464

SPRING
