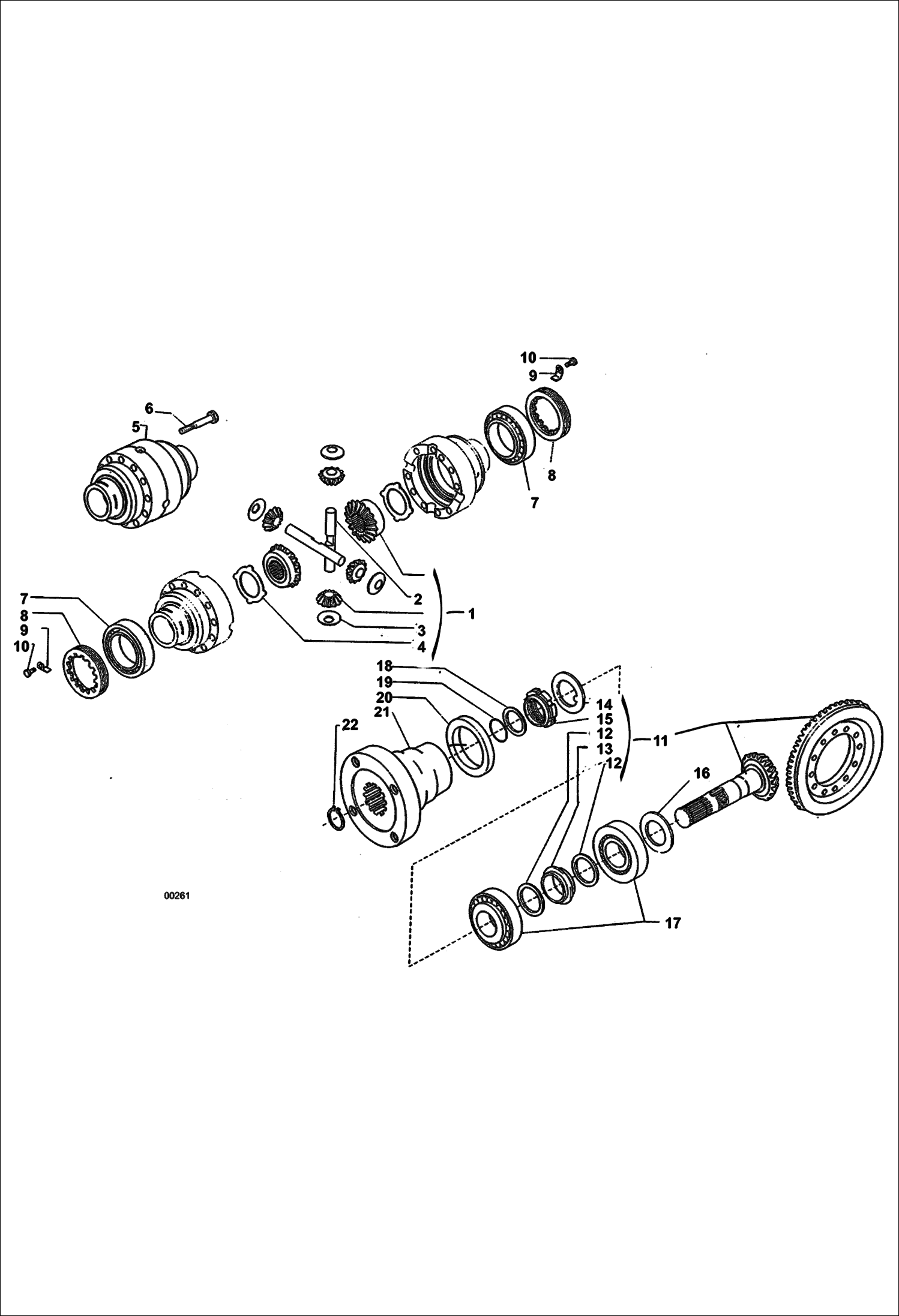

Запчасти Bobcat V623 REAR AXLE - DIFFERENTIAL DRIVE TRAIN

1

71209-1

DIFFERENTIAL W/Ref 1-4

2

PIN NLA - Order Diffferential Kit - Was 100485-55S - A

3

100485-56T

WASHER

4

75789-8

WASHER Was 63228-1 - A

5

89921-1

BOX

6

100338-39W

SCREW Was 100388-39W - D

7

00909-2

BEARING Was 000398-08U - A

8

100345-40J

COLLAR

9

75775-7

PLATE

10

66048-0

SCREW

11

75791-4

BEWEL GEAR W/Ref 11-15

12

64851-9

WASHER

13

101288-39H

SPACER

14

100348-06X

WASHER

15

100345-37F

NUT

16

75779-9

SHIM Thickness 2.50 mm

16

75780-7

SHIM Thickness 2.60 mm

16

75781-5

SHIM Thickness 2.70 mm

16

75782-3

SHIM Thickness 2.80 mm

16

75783-1

SHIM Thickness 2.90 mm

16

75784-9

SHIM Thickness 3.00 mm

16

75785-6

SHIM Thickness 3.10 mm

16

75786-4

SHIM Thickness 3.20 mm

16

75787-2

SHIM Thickness 3.30 mm

16

75788-0

SHIM Thickness 3.40 mm

17

07187-8

BEARING

18

75802-9

WASHER

19

75728-6

COLLAR

20

75804-5

SEAL

21

75806-0

BRACKET

22

75805-2

CLIP
