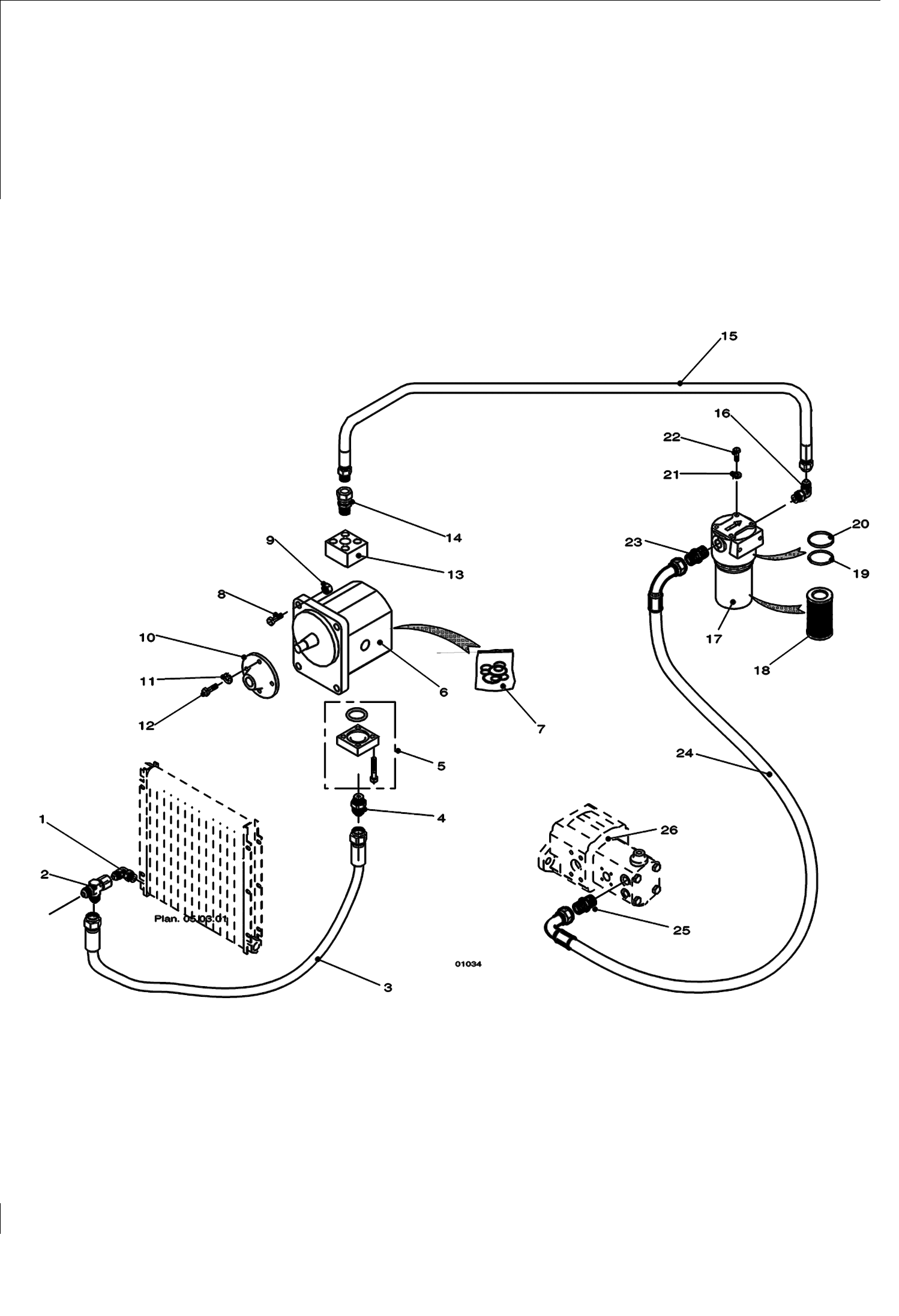

Запчасти Bobcat V623 VENTILATION POWER UNIT

1

100370-31R

ELBOW PIECE

2

008372-34M

UNION

3

96752-1

HOSE

4

100375-40U

UNION

5

82430-0

BRACKET

6

68407-6

MOTOR

7

59955-5

SEAL KIT, COOLING FAN MOTOR

8

01598-2

SCREW

9

51851-4

NUT

10

68705-3

HUB

11

11463-7

WASHER

12

1CM816

BOLT Was 01595-8 - A

13

78769-7

BRACKET

14

100375-38S

UNION

15

96753-9

HOSE

16

100370-06P

ELBOW PIECE

17

82138-9

FILTER

18

82139-7

ELEMENT

19

92595-8

SEAL

20

92596-6

SEAL

21

11463-7

WASHER

22

01596-6

SCREW

23

100375-56M

UNION

24

96754-7

HOSE

25

022375-04U

UNION

26

82193-4

PUMP See Illustration HYDRAULIC PUMP - DETAILS/ V01071

26

6688049

BOLT, SINGLE 10mm X 130mm - single bolt- order qty needed

26

6688050

BOLT, SINGLE 10mmx100mm - single bolt - order qty needed

26

7001037

BOLT, SINGLE 14mmx100mm - single bolt - order qty needed
