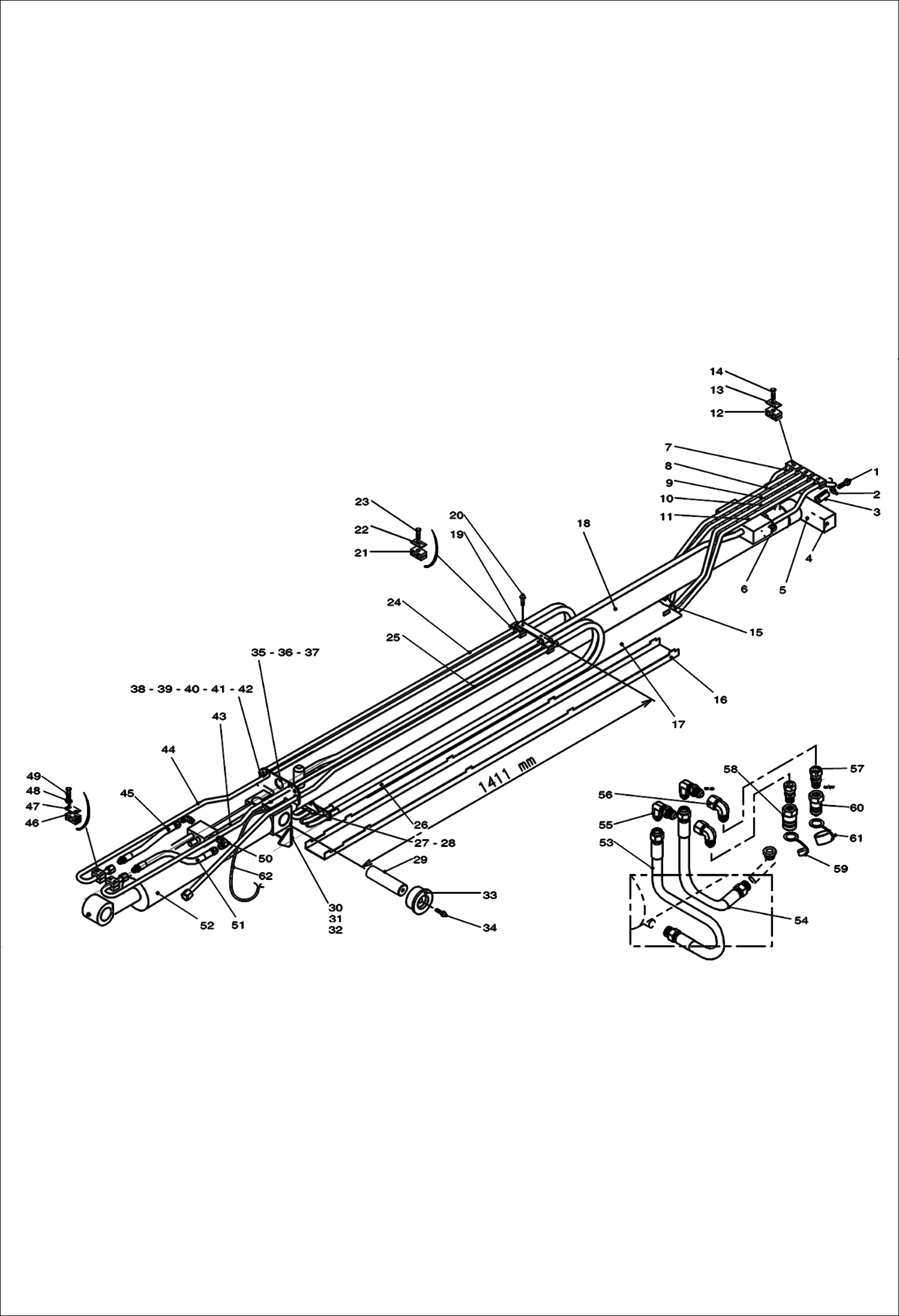

Запчасти Bobcat V623 ARM HYDRAULIC SUPPLY WORK EQUIPMENT

1

77492-7

SCREW

2

13778-6

WASHER

3

100357-03X

PIN

4

77798-7

BRACKET

5

88523-8

BRACKET

6

014375-30H

UNION

7

77792-0

PIPE

8

77386-1

PIPE

9

77387-9

PIPE

10

77388-7

PIPE

11

77389-5

PIPE

12

55932-8

COLLAR

13

54215-9

PLATE

14

01579-2

SCREW

15

77791-2

SPACER

16

77396-0

SUPPORT

17

77652-6

PLATE

18

90796-4

CYLINDER See Illustration COMPENSATION RAM/ V00206

19

89390-9

BRACKET

20

1CM816

BOLT Was 01595-8 - A

21

55932-8

COLLAR

22

54215-9

PLATE

23

01578-4

SCREW

24

77777-1

PIPE

25

77778-9

PIPE

26

77397-8

HOSE

27

77655-9

SPACER

28

77402-6

SUPPORT

29

84627-9

PIN

30

77794-6

PLATE

31

01720-2

WASHER

32

01604-8

SCREW

33

84626-1

PLUG

34

84630-3

SCREW

35

77784-7

PLATE

36

01720-2

WASHER

37

01604-8

SCREW

38

77394-5

BRACKET

39

32090-3

SCREW

40

100345-09A

NUT

41

01604-8

SCREW

42

100345-09A

NUT

43

90180-1

TUBE

44

90179-3

TUBE

45

80407-0

HOSE ASSEM

46

61358-8

COLLAR

47

61357-0

PLATE

48

01717-8

WASHER

49

001338-08T

SCREW

50

65285-9

ELBOW PIECE

51

94414-0

HOSE

52

6917920

HYDRAULIC CYLINDER See Illustration TILTING ARM/ V00194 Was 90788-1 - A

53

76367-2

HOSE

54

77398-6

HOSE

55

010370-57L

ELBOW UNION

56

010370-90W

ELBOW PIECE

57

022375-06W

UNION

58

95993-2

COUPLER 1/2''F FP G1/2''F

59

96514-5

CAP Was 15612-5 - B

60

95994-0

COUPLER 1/2''M FP G1/2''F

61

96513-7

CAP Was 15613-3 - B

62

96474-2

BOOM WIRE HARNESS Was 84731-9 - B
