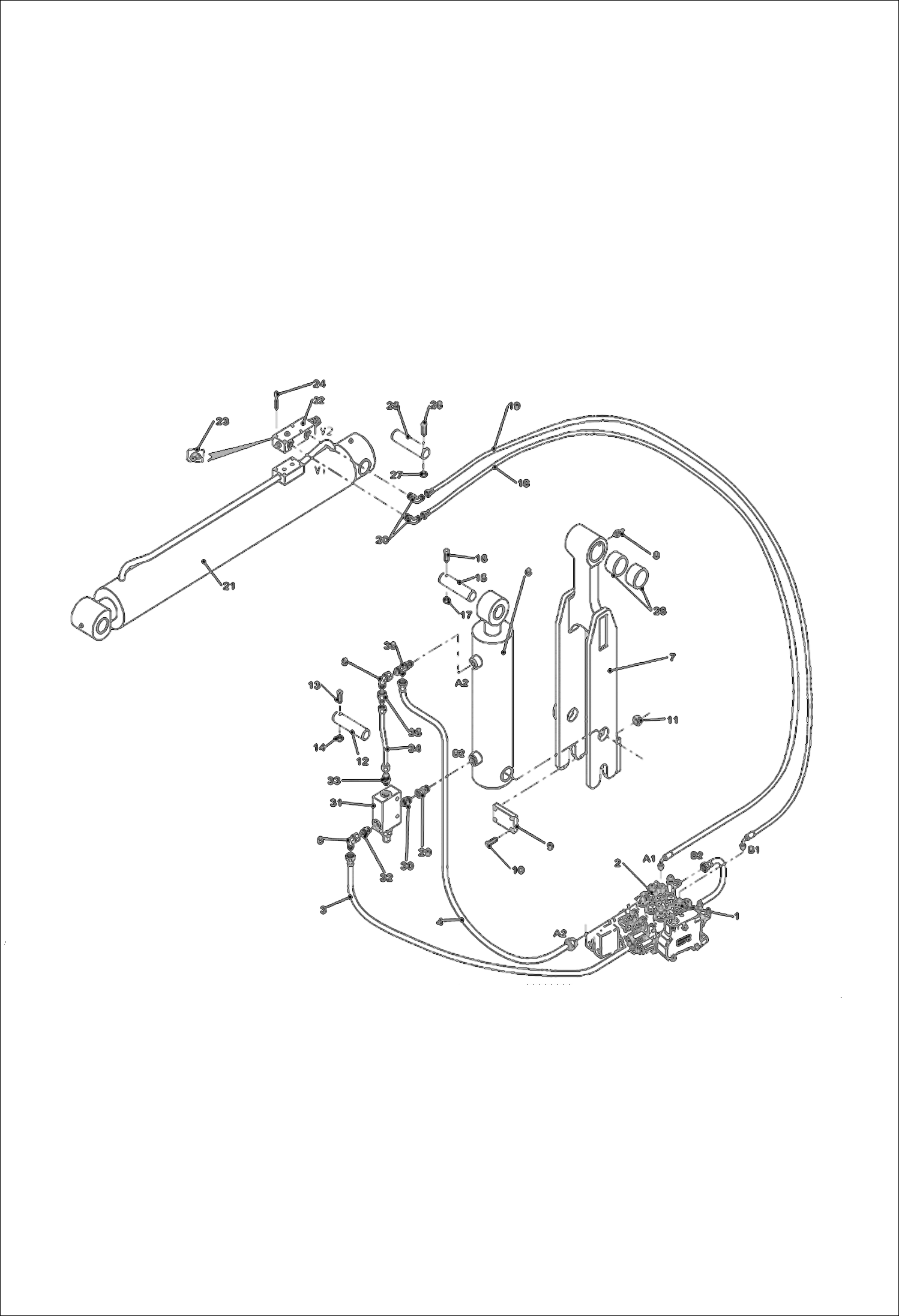

Запчасти Bobcat V623 ARM HYDRAULIC SUPPLY 3671 12501 & Abv, 3672 12501 & Abv. 3674 11001 & Abv, 3675 11001 & Abv. WORK EQUIPMENT

1

014375-02C

UNION 7/8 JIC 3/4 BSPP

2

008372-28F

UNION

3

83933-2

HOSE

4

6909253

HOSE TJ 7/8 12,7 TJ45 7/8 L1070

5

010370-90W

ELBOW PIECE

6

90798-0

CYLINDER See Illustration COMPENSATION RAM/ V00206

7

90153-8

BRACKET

8

01775-6

GREASE NIPPLE

9

89347-9

PLATE

10

01536-2

SCREW

11

000345-96E

NUT

12

77453-9

PIN

13

65397-2

SCREW

14

100345-09A

NUT

15

77425-7

PIN, COTTER

16

65397-2

SCREW

17

100345-09A

NUT

18

96789-3

HOSE

19

96788-5

HOSE

20

65285-9

ELBOW PIECE

21

90774-1

CYLINDER, LIFT See Illustration LIFTING ARM/ V00207

22

VALVE NLA - Order 6909363 valve - Was 82127-2 - A

22

6909363

VALVE Also Order 56028-4 plug

22

56028-4

PLUG , MALE 1/4 BSPP 6 P.CREU

23

93131-1

SEAL KIT

24

88299-3

SCREW

25

77454-7

SPINDLE

26

65397-2

SCREW

27

100345-09A

NUT

28

77448-9

BUSH

29

022375-06W

UNION

30

100375-39T

UNION 7/8 JIC 3/8 BSP

31

98235-5

BAL.VALVE

32

100375-39T

UNION 7/8 JIC 3/8 BSP

33

65614-0

UNION

34

98275-1

HYD.PIPE

35

65641-3

ADAPTER

36

100372-08J

T PIECE
