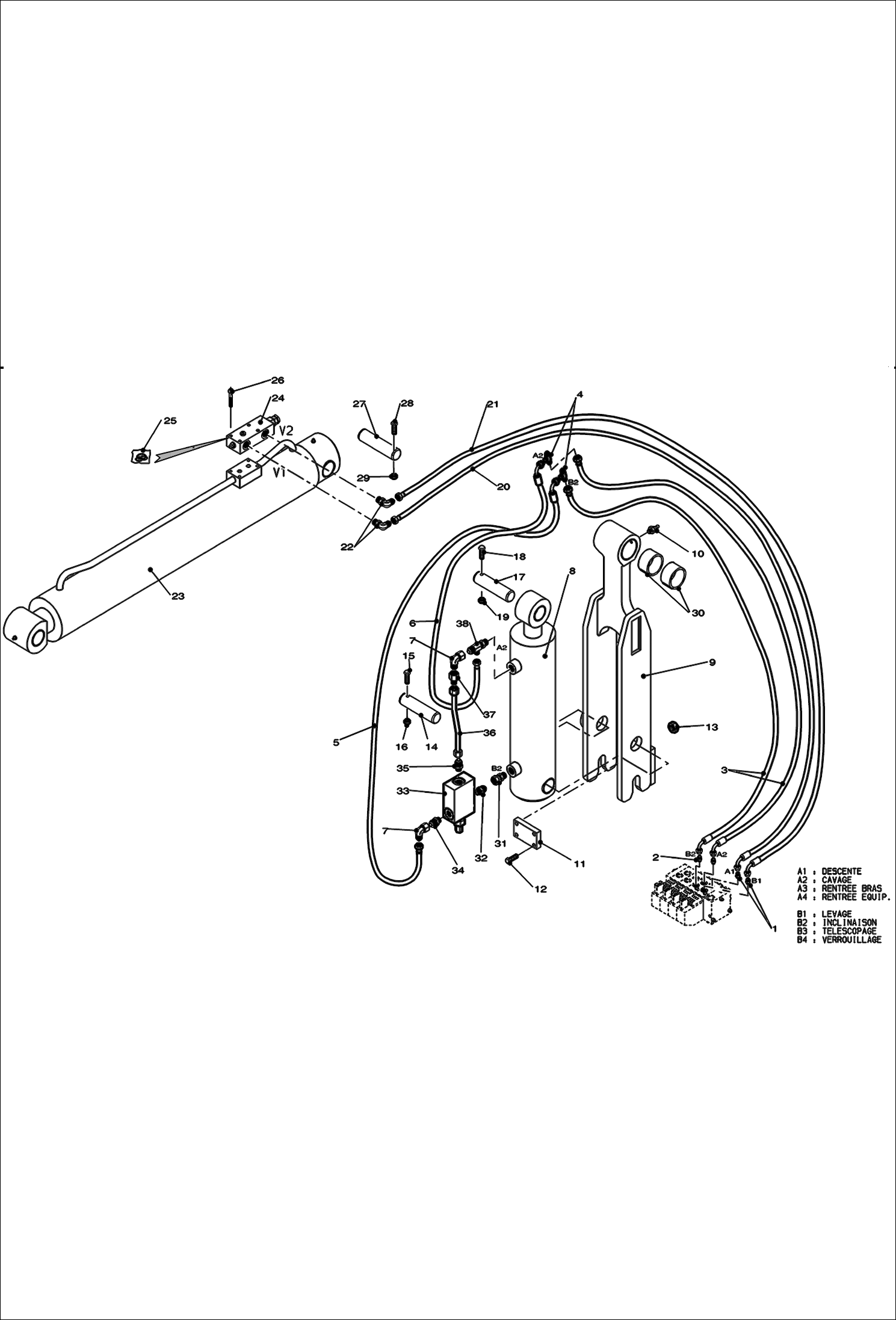

Запчасти Bobcat V623 ARM HYDRAULIC SUPPLY 367111192 & Abv. 367211001 & Abv. WORK EQUIPMENT

1

014375-30H

UNION

2

014375-30H

UNION

3

96780-2

HOSE

4

008372-25C

UNION

5

65486-3

HOSE

6

65635-5

HOSE ASSEM

7

010370-90W

ELBOW PIECE

8

90798-0

CYLINDER See Illustration COMPENSATION RAM/ V00206

9

90153-8

BRACKET

10

01775-6

GREASE NIPPLE

11

89347-9

PLATE

12

01536-2

SCREW

13

000345-96E

NUT

14

77453-9

PIN

15

65397-2

SCREW

16

100345-09A

NUT

17

77425-7

PIN, COTTER

18

65397-2

SCREW

19

100345-09A

NUT

20

96789-3

HOSE

21

96788-5

HOSE

22

65285-9

ELBOW PIECE

23

90774-1

CYLINDER, LIFT See Illustration LIFTING ARM/ V00207

24

VALVE NLA - Order 6909363 valve - Was 82127-2 - A

24

6909363

VALVE Also Order 56028-4 plug

24

56028-4

PLUG , MALE 1/4 BSPP 6 P.CREU

25

93131-1

SEAL KIT

26

88299-3

SCREW

27

77454-7

SPINDLE

28

65397-2

SCREW

29

100345-09A

NUT

30

77448-9

BUSH

31

022375-06W

UNION

32

100375-39T

UNION 7/8 JIC 3/8 BSP

33

98235-5

BAL.VALVE

34

100375-39T

UNION 7/8 JIC 3/8 BSP

35

65614-0

UNION

36

98275-1

HYD.PIPE

37

65614-3

ADAPTER

38

100372-08J

T PIECE
