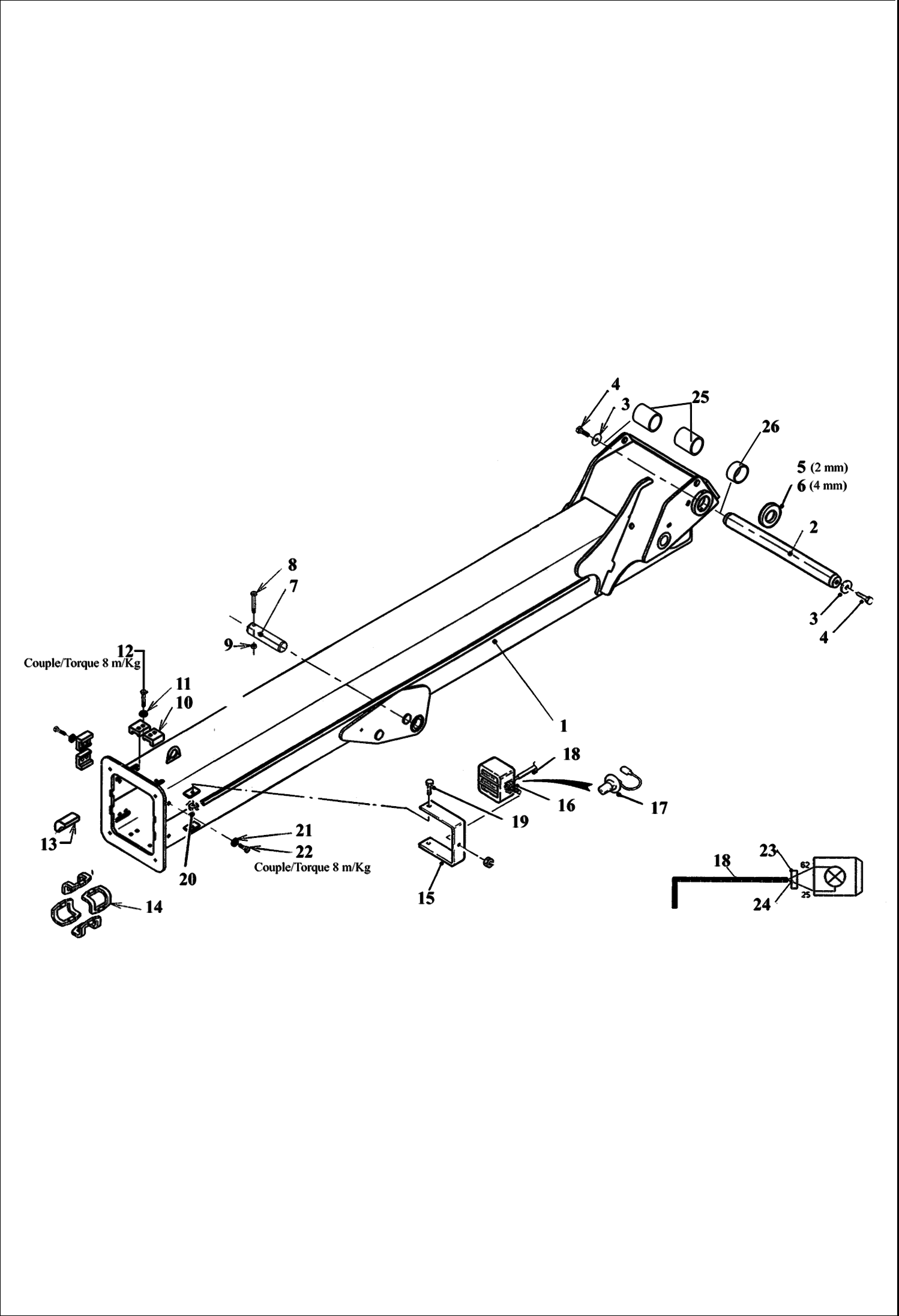

Запчасти Bobcat V623 ARM WORK EQUIPMENT

1

89293-5

ARM

2

89328-9

SPINDLE

3

77430-7

WASHER

4

44001-6

SCREW

5

79428-9

WASHER 2 mm

6

79429-7

WASHER 4 mm

7

77419-0

PIN, MOUNTING CYLINDER LIFT

8

65397-2

SCREW

9

100345-09A

NUT

10

88404-9

SHIM

11

89332-1

WASHER

12

88497-3

SCREW

13

88403-1

SHOE

14

88401-5

SUPPORT

15

84675-8

PROTECTOR

16

79908-0

HEAD LIGHT

17

58446-6

BULB, FRONT WORK LIGHT (BOOM)

18

78920-6

WIRE HARNESS

19

01605-5

SCREW

20

100345-09A

NUT

21

89332-1

WASHER

22

01616-2

SCREW

23

79906-4

CONNECTION

24

12940-3

CLIP

25

77380-4

BUSHING

26

89323-0

BUSHING
