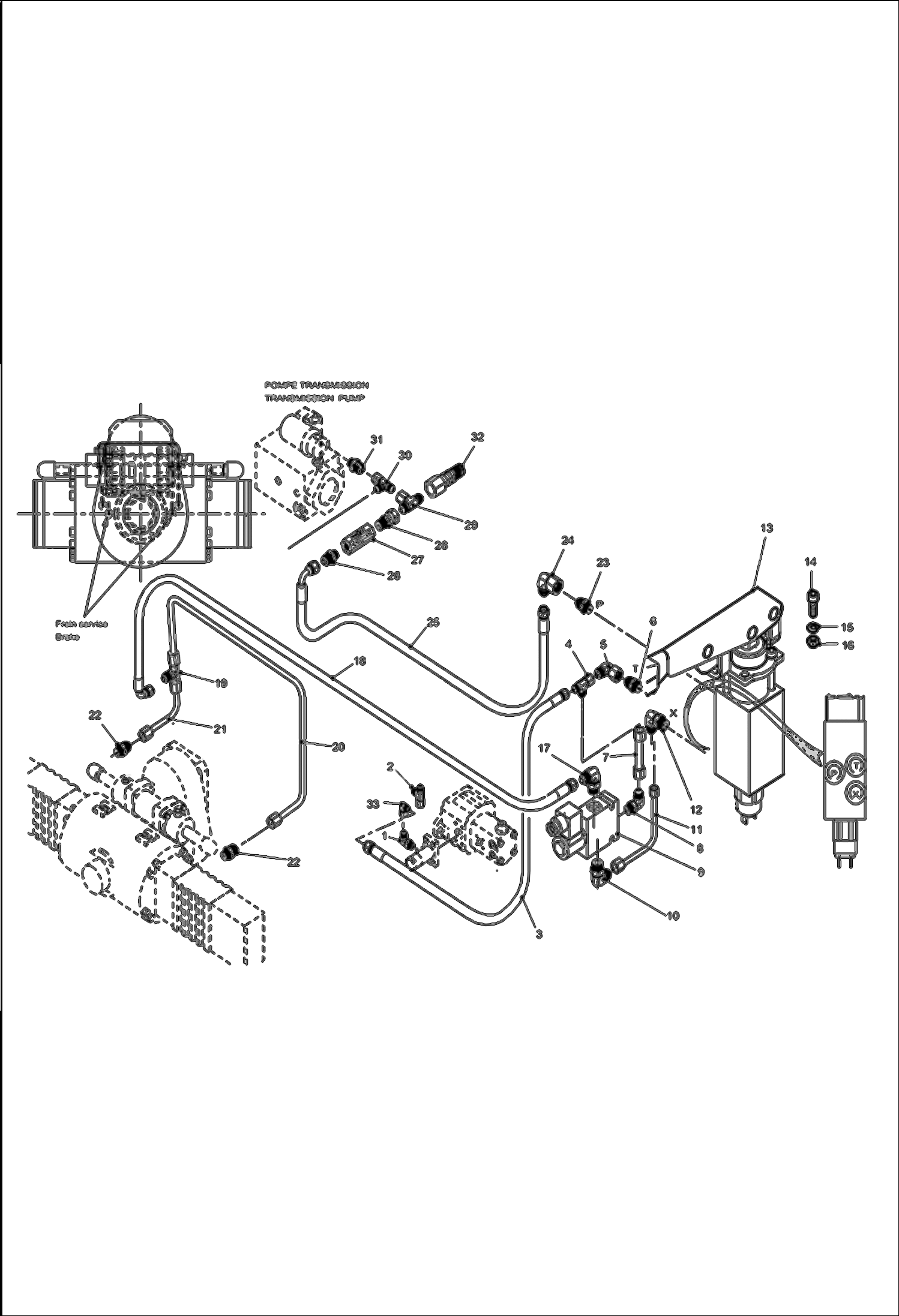

Запчасти Bobcat V623 PARKING BRAKE S/N 3671 11001-12003 S/N 3672 11001-12003 CHASSIS

1

010370-94B

ELBOW PIECE

2

008372-02C

UNION Before 15 DEC. 2002

3

96801-6

HOSE

4

008372-02C

UNION

5

008372-01B

ELBOW PIECE

6

70941-0

UNION

7

96382-7

TUBELINE

8

015370-13R

UNION Was 96409-8 - A

9

95983-3

VALVE 3/2 CE12V 15L 210B

10

100370-18C

ELBOW PIECE

11

96383-5

TUBELINE

12

100370-11U

UNION

13

HANDLE BRAKE LEVER NLA - Order 98385-8 - Was 90501-8 - A

13

98385-8

HAND BRAKE LEVER See Illustration HANDLE BRAKE LEVER/ V01051 Was 90501-8 - A

14

10167-5

SCREW

15

13416-3

WASHER

16

100345-06W

NUT

17

100370-18C

ELBOW PIECE

18

92991-9

HOSE

19

62849-5

UNION

20

90191-8

TUBE

21

89475-8

PIPE

22

100375-71D

UNION

23

90289-0

UNION

24

100370-29P

ELBOW PIECE

25

85112-1

HOSE

26

022375-31Z

UNION

27

100433-41X

VALVE

28

022375-30X

UNION

29

100372-23A

UNION

30

100372-06G

UNION

31

67046-3

UNION

32

82170-2

PRESSURE CONNECTOR

33

008372-01B

ELBOW PIECE
