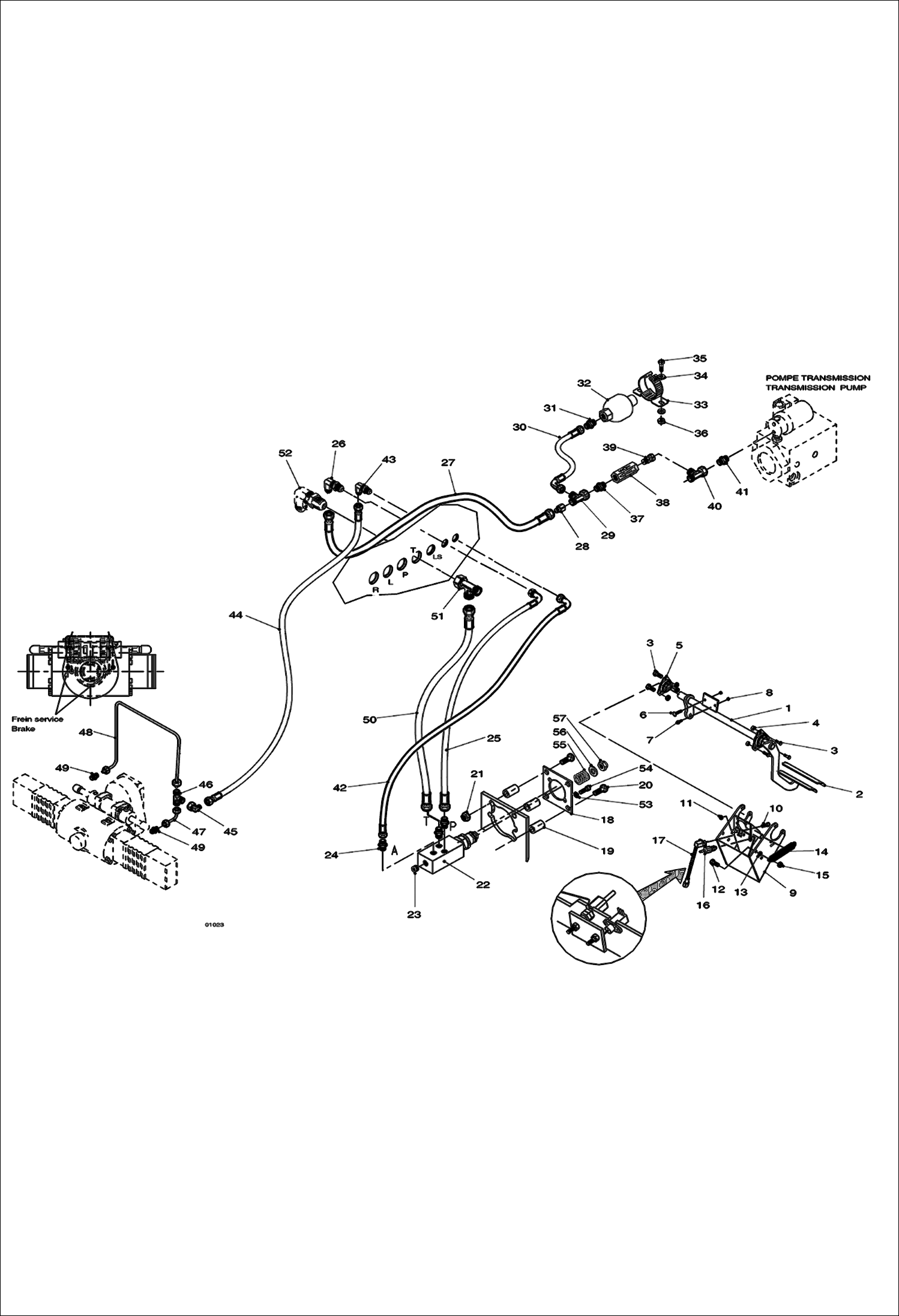

Запчасти Bobcat V623 BRAKE CIRCUIT S/N 3671 11001 -12003 S/N 3672 11001-12003 CHASSIS

1

95507-8

PEDAL ASMBLY

2

RUBBER NLA - Was 97508-6 - A

3

01605-5

SCREW

4

100345-09A

NUT

5

77919-9

BRACKET

6

62185-4

SCREW

7

01597-4

SCREW

8

51851-4

NUT

9

96089-8

SUPPORT

10

100329-01C

SCREW

11

100345-05V

NUT

12

1CM1040

BOLT Was 01608-9 Was 01608-9 - A

13

01669-1

NUT

14

01124-7

SPRING

15

100345-09A

NUT

16

89092-1

DETECTOR

17

79940-3

DETECTOR

18

96054-2

SPACER

19

96061-7

SPACER

20

01598-2

SCREW

21

51851-4

NUT

22

90807-9

CONTROL SERVICE BRAKE SC 40B M_5B

23

78927-1

PLUG

24

90289-0

UNION Was 100375-17U - A

25

96773-7

HOSE

26

100370-40B

ELBOW PIECE

27

96800-8

HOSE

28

100375-73F

UNION

29

100372-06G

UNION

30

79490-9

HOSE

31

77912-4

UNION

32

96365-2

ACCUMULATOR , HYDRAULIC

33

96368-6

COLLAR , MOUNT 75MM DIA.

34

01697-2

WASHER

35

01597-4

SCREW

36

51851-4

NUT

37

022375-31Z

UNION

38

100433-41X

VALVE

39

022375-30X

UNION

40

100372-06G

UNION

41

67046-3

UNION

42

96773-7

HOSE

43

67196-6

UNION

44

94993-3

HOSE

45

72294-2

ELBOW UNION

46

62849-5

UNION

47

89474-1

PIPE

48

89477-4

PIPE

49

100375-71D

UNION

50

96772-9

HOSE

51

008372-02C

UNION

52

010370-87T

ELBOW PIECE

53

000350-01U

WASHER

54

15354-4

SCREW

55

96656-4

SPRING

56

96655-6

WASHER

57

000342-17S

NUT
