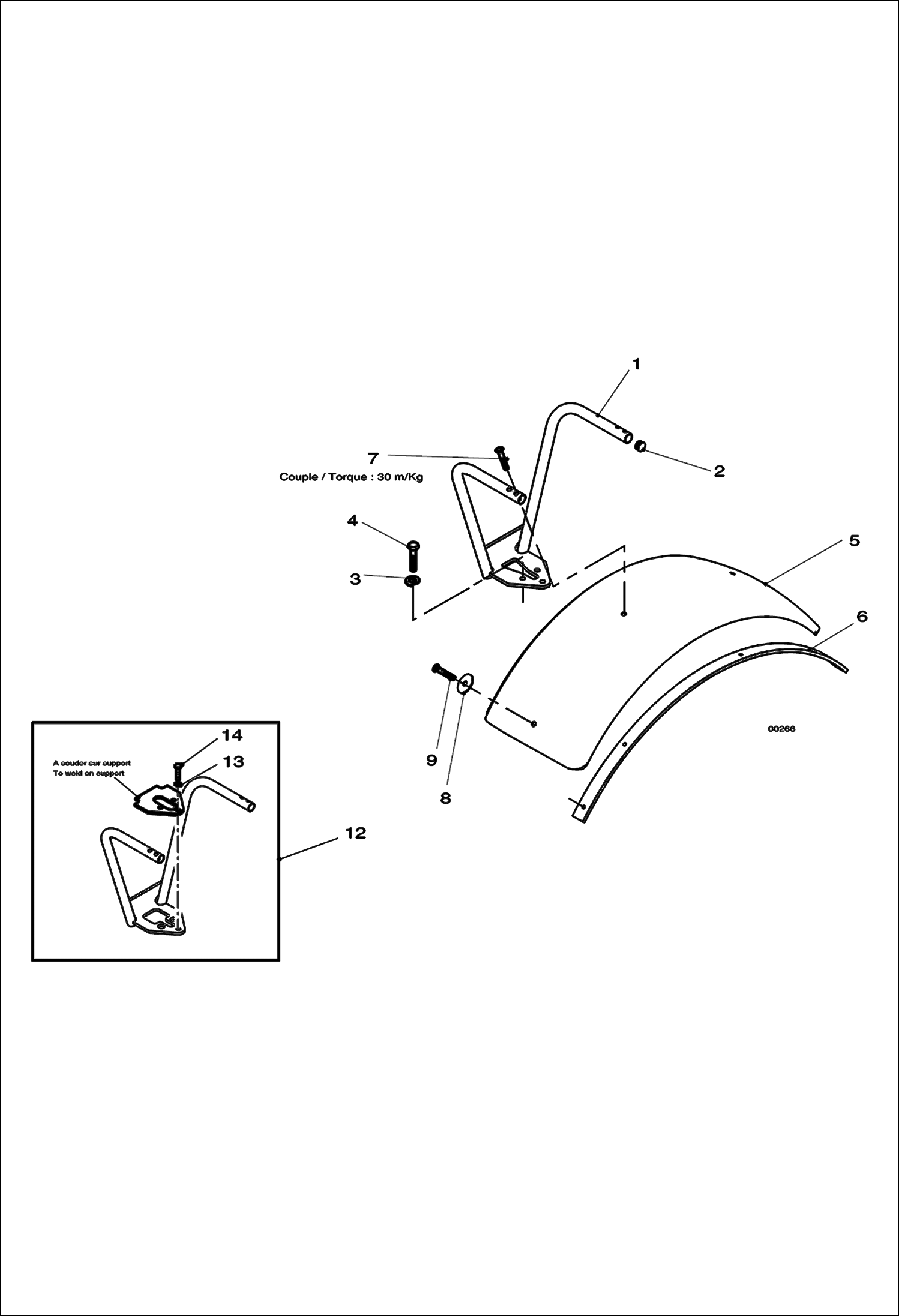

Запчасти Bobcat V623 MUDGUARD DRIVE TRAIN

1

SUPPORT NLA - Order 96922-0 - W/Ref 3 & 4

1

96922-0

MUDGUARD Was 90486-2, W/Ref 3 & 4 - A

2

79297-8

PLUG

3

89332-1

WASHER Was 11464-5 - A

4

76029-8

SCREW

5

78568-3

WING

6

78569-1

REINFORCEMENT

7

79293-7

SCREW Torque: 30m/Kg

8

001350-04T

WASHER

9

79294-5

SCREW

12

98009-4

MUDGUARD REINFORCEMENT KIT W/Ref 12-14

13

89332-1

WASHER

14

90314-6

SCREW
