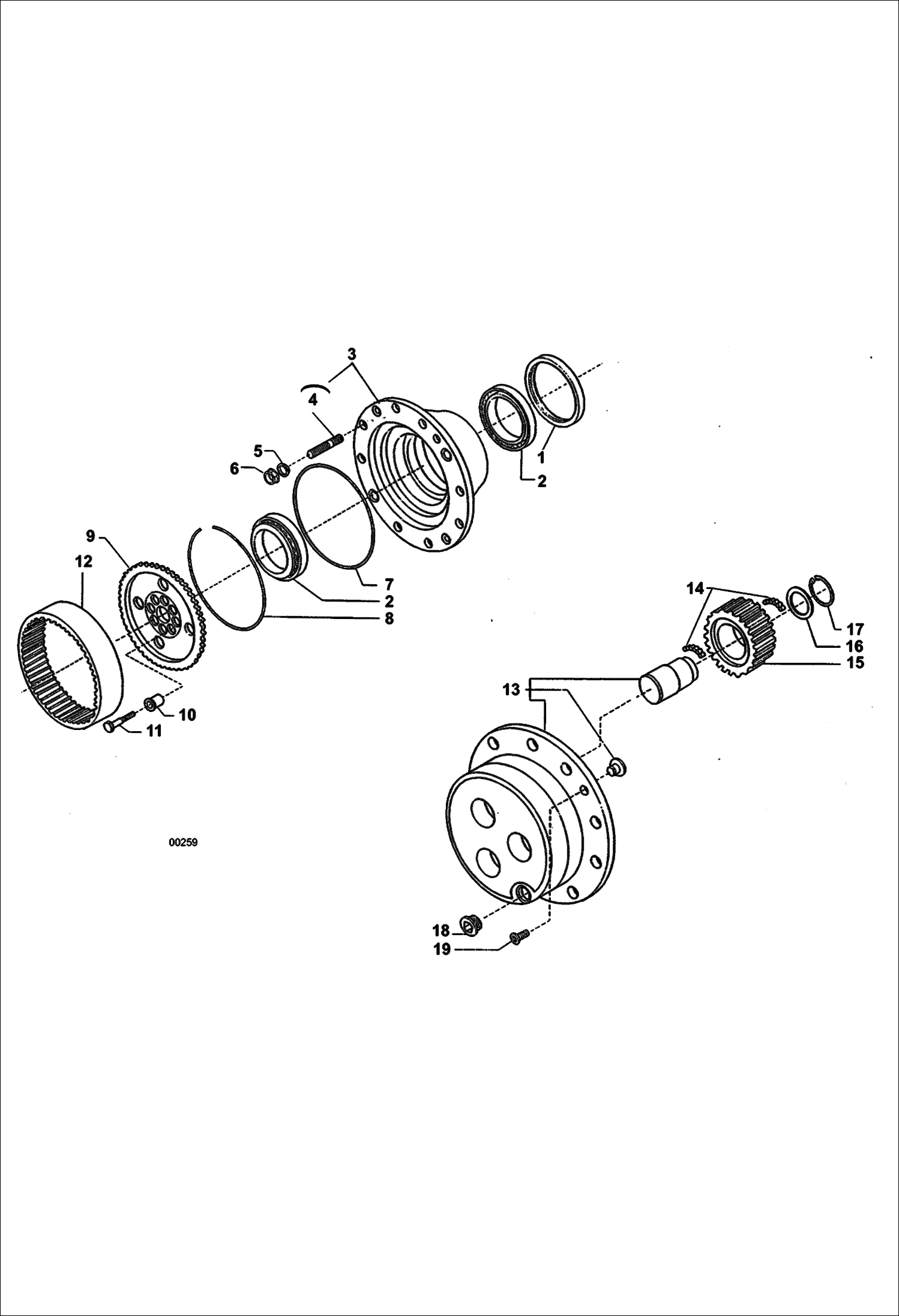

Запчасти Bobcat V623 REAR AXLE - REDUCER DRIVE TRAIN

1

63233-1

SEAL 150 x 176 x 16 AXLE #1098 & BELOW

1

97414-7

SEAL 150 x 180 x 16 AXLE 1099 & Abv.

2

100398-15S

SLEEVE

3

97413-9

WHEEL SPINDLE - BEFORE 2002 WAS 75823-5, AXLE # 1098 & BELOW, ALSO ORDER 97417-7, W/Ref 4

3

97413-9

WHEEL SPINDLE - AFTER 2003 AXLE # 1099 & Abv. W/Ref. 4

4

75822-7

STUD

5

100349-02C

WASHER

6

100345-41K

NUT

7

75277-4

SEAL

8

75824-3

RING

9

75825-0

SUPPORT

10

89963-3

SLEEVE

11

89964-1

SCREW

12

75826-8

TOOTHED RING

13

75830-0

CARRIER, PINION

14

75834-2

10 NEEDLE BEARING Pack of 10 ( 56 needles/pinions)

15

75833-4

PINION, AXLE FRONT

16

75832-6

WASHER

17

75831-8

SNAP RING

18

100374-32C

PLUG

19

100324-04M

SCREW
