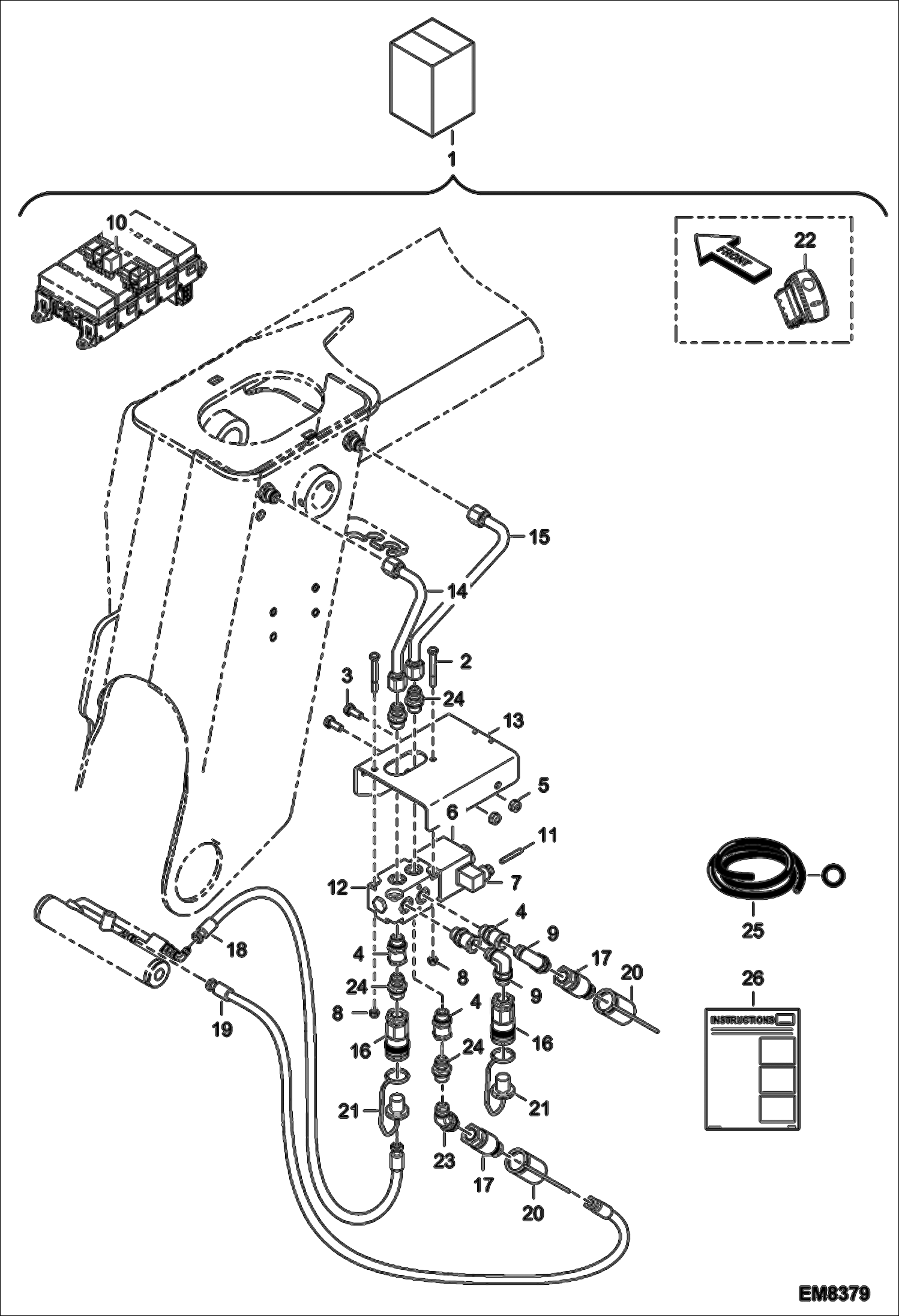

Запчасти Bobcat V518 2ND HYDRAULIC FUNCTION ON BOOM KIT ACCESSORIES & OPTIONS

1

6924317

KIT, 2ND HYDRAULIC FUNCTION ON BOOM Ref. 2-26

1

6925379

KIT, 2ND HYDRAULIC FUNCTION ON BOOM Ref. 2-26

2

01511-5

SCREW

3

01605-5

SCREW

4

7225156

FITTING, HYD Was 022375-06W - A

5

100345-09A

NUT

6

101472-20M

DIODE

7

41282-5

CONNECTOR

8

01681-6

NUT Was 51851-4 - B

9

65285-9

ELBOW PIECE

10

6910955

RELAY,MICRO

11

INSULATION NAP - 100 mm (3.94'') long - Order Ref. 25

12

92131-2

ELECTRO VALVE

13

92132-0

HOUSING

14

94193-0

TUBELINE

15

94194-8

TUBELINE

16

7186826

COUPLER, QUICK FEMALE Was 95993-2 - A

17

7225159

COUPLER, HYD Was 95994-0 - A

18

96397-5

HOSE

19

96398-3

HOSE

20

7225160

CAP, COUPLER Was 96513-7 - A

21

7225161

CAP, COUPLER Was 96514-5 - A

22

96604-4

SWITCH

22

6927713

SWITCH

23

100371-06X

ELBOW

24

014375-30H

UNION

25

74470-6

SHEATH bulk - sold per foot

26

6986829

INSTRUCTIONS, INSTALLATION
