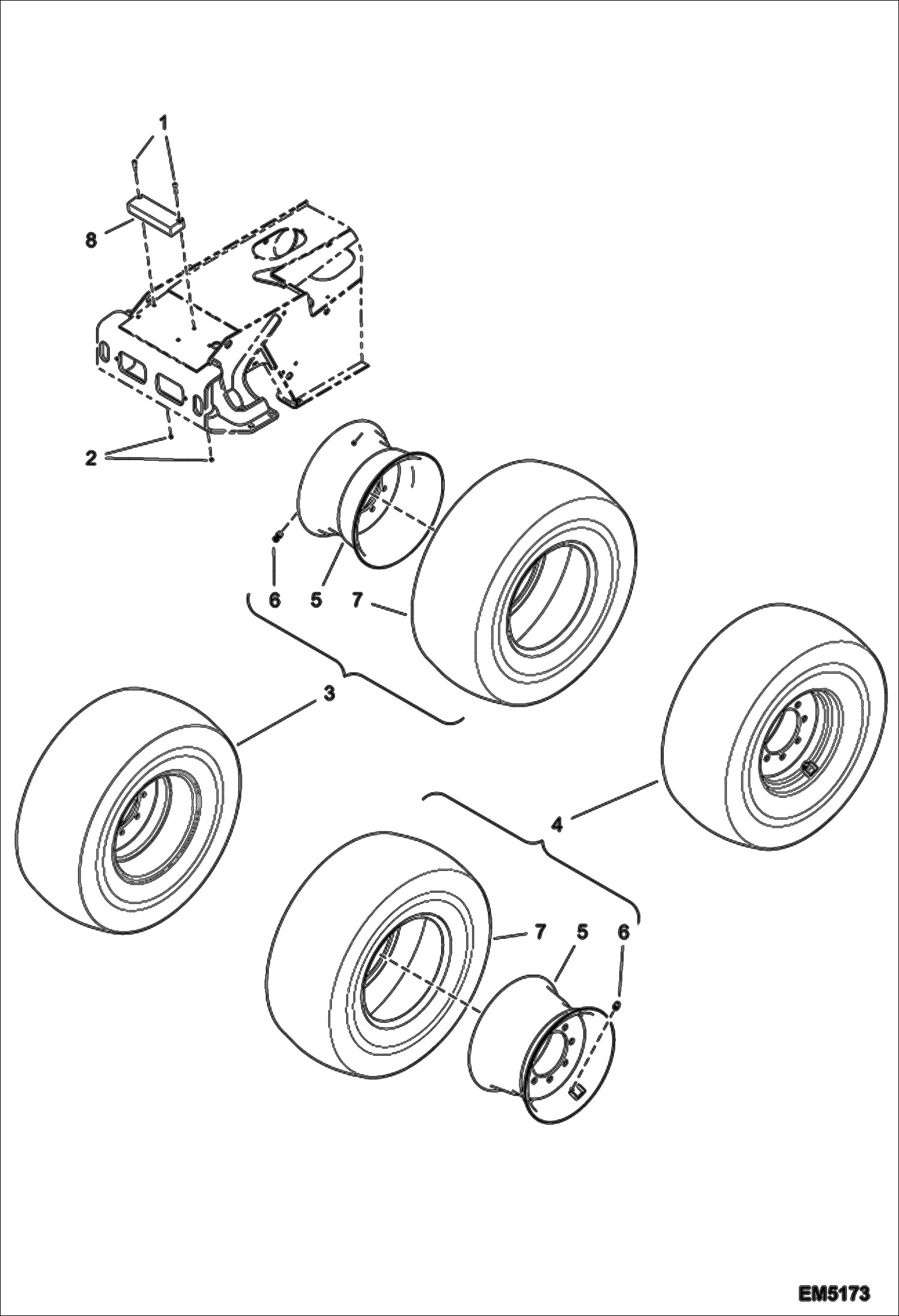

Запчасти Bobcat V518 WHEELS (Titan 400/70-R20 150B) ACCESSORIES & OPTIONS

1

14039-2

SCREW

2

100345-09A

NUT

3

6914953

R.H. WHEEL ASSY TITAN 400/70-20 150B W/Ref. 5-7

4

6914952

L.H. WHEEL ASSY TITAN 400/70-20 150B W/Ref. 5-7

5

6914894-O

RIM

6

7192607

VALVE Was 100426-06B - A

7

7192647

TIRE Titan 400/70-20 Was 6909321 - B,D

8

6914693

STOP 50 MM 50 mm
