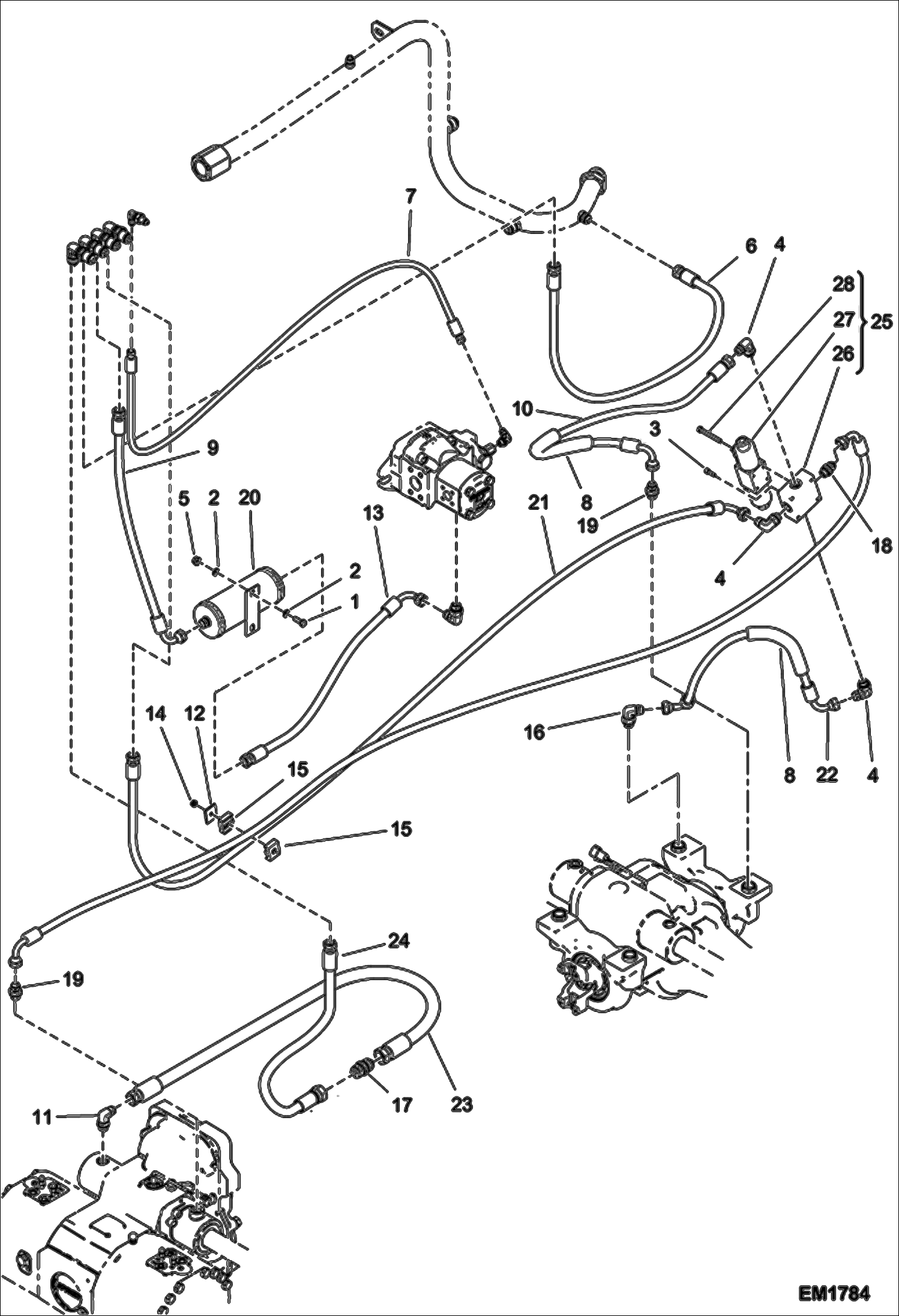

Запчасти Bobcat V518 STEERING HOSE & FITTINGS (W/Damper) ACCESSORIES & OPTIONS

1

4CM825

BOLT Was 01597-4 - B

2

01697-2

WASHER

3

10167-5

SCREW

4

010370-94B

ELBOW PIECE

5

01681-6

NUT Was 51851-4 - B

6

79147-5

HOSE +

7

79148-3

HOSE

8

82090-2

SHEATH

9

96775-2

HOSE

10

96776-0

HOSE

11

6917976

ELBOW UNION

12

100212-53R

COVER PLATE

13

100319-28U

HOSE

14

100345-06W

NUT

15

100369-18T

COLLAR

16

7228465

FITTING, HYD ELBOW Was 100370-06P - A

17

100375-37R

UNION

18

100375-38S

UNION

19

100375-56M

UNION

20

6933832

DAMPER W/O SCREW WELDED W/O welded screw Was 6914316 - A

21

6915278

HOSE-FLEXIBLE

22

6916885

HOSE Was 96792-7

23

6917974

HOSE

24

6917975

HOSE

25

98347-8

BLOCK W/Ref. 26-28

26

98348-6

SUPPORT

27

98349-4

VALVE

28

79160-8

SCREW
