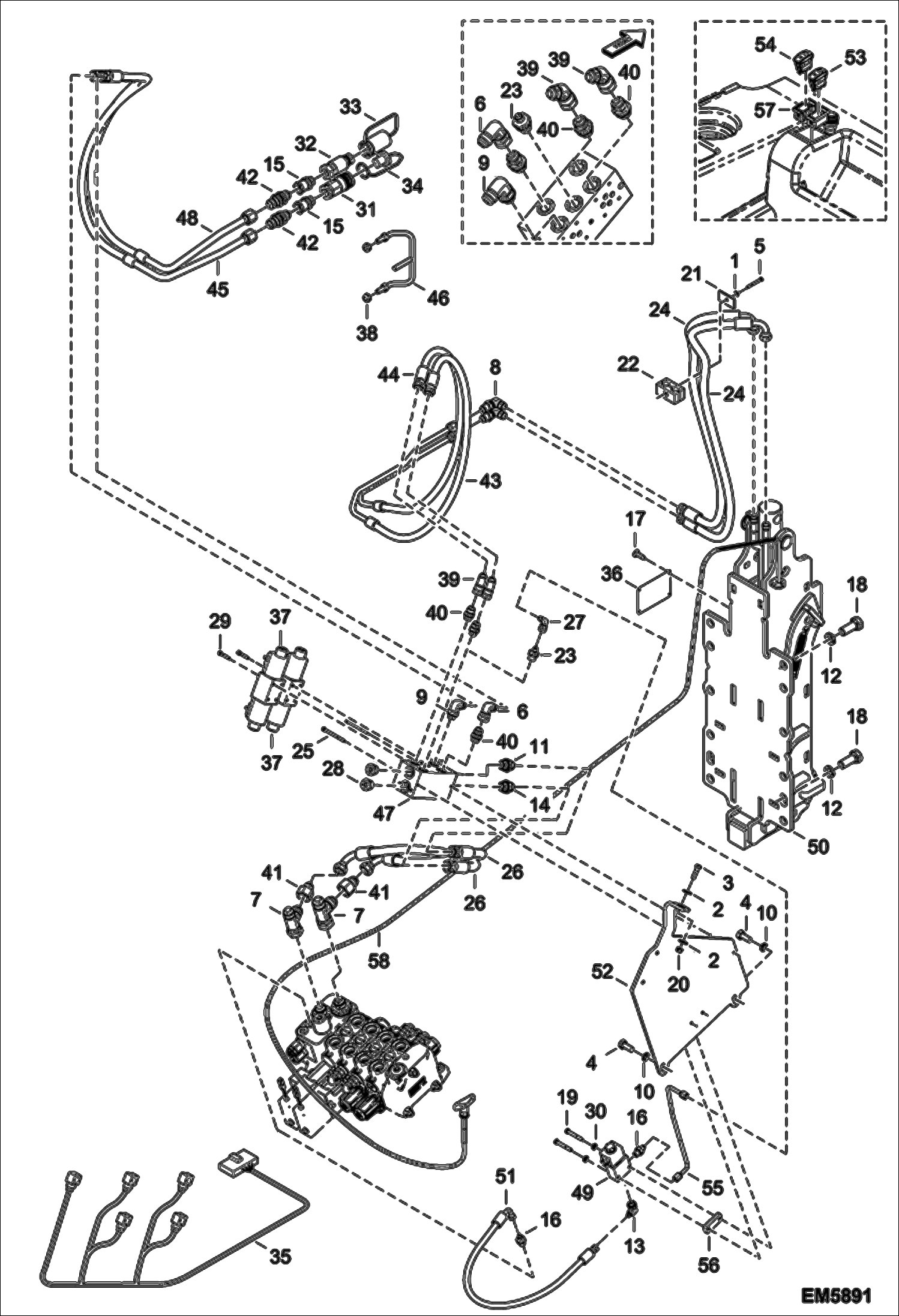

Запчасти Bobcat V518 REAR HYDRAULIC HOOK & AUXILIARY HYDRAULICS (S/N A8G813002 - 14999, A8G913002 - 14999) ACCESSORIES & OPTIONS

1

000350-01U

WASHER

2

000350-20Q

WASHER

3

01598-2

SCREW

4

01612-1

SCREW H M 12- 30/ CL 8.8 ZJ8

5

008338-28K

SCREW

6

008372-01B

ELBOW PIECE

7

008372-34M

UNION

8

010370-87T

ELBOW PIECE

9

010370-94B

ELBOW PIECE

10

11689-7

WASHER

11

014375-30H

UNION

12

15323-9

WASHER

13

7186826

COUPLER, QUICK FEMALE Was 95993-2 - A

14

022375-04U

UNION

15

7225156

FITTING, HYD Was 022375-06W - A

16

022375-28V

UNION

17

43824-2

RIVET

18

44001-6

SCREW

19

1CM650

SCREW Was 48829-6 - A

20

01681-6

NUT Was 51851-4 - B

21

54215-9

PLATE

22

55605-0

COLLAR

23

65614-0

UNION

24

65716-3

HOSE, HYD

25

68566-9

SCREW

26

70225-8

HOSE

27

72294-2

ELBOW UNION

28

78743-2

PLUG

29

79160-8

SCREW

30

94574-1

WASHER

31

7186826

COUPLER, QUICK FEMALE Was 95993-2 - A

32

7225159

COUPLER, HYD Was 95994-0 - A

33

7225160

CAP, COUPLER Was 96513-7 - A

34

7225161

CAP, COUPLER Was 96514-5 - A

35

96589-7

WIRE HARNESS

36

PLATE, SERIAL NO. NAP

37

98360-1

VALVE, CONTROL

38

100345-09A

NUT

39

100371-17K

ELBOW

40

100375-38S

UNION

41

100375-44Z

REDUCER 1.1/16JIC 7/8JIC (20-16)

42

100375-52H

UNION

43

6909893

HOSE

44

6909894

HOSE

45

6910275

Hose

46

6910517

PROTECTOR

47

6911079

HYDRAULIC BLOCK

48

6911164

HOSE

49

6911845

SOLENOID 2-2

50

6917366

HOOK

51

6922045

HOSE

52

6922991

SUPPORT

53

6927721

SWITCH, HYD HOOK

54

6927725

SWITCH, REAR HYD

55

6927949

HYDRAULIC TUBE

56

6927957

SPACER

57

7178511

SOCKET, END

58

7009791

CABLE PULL
