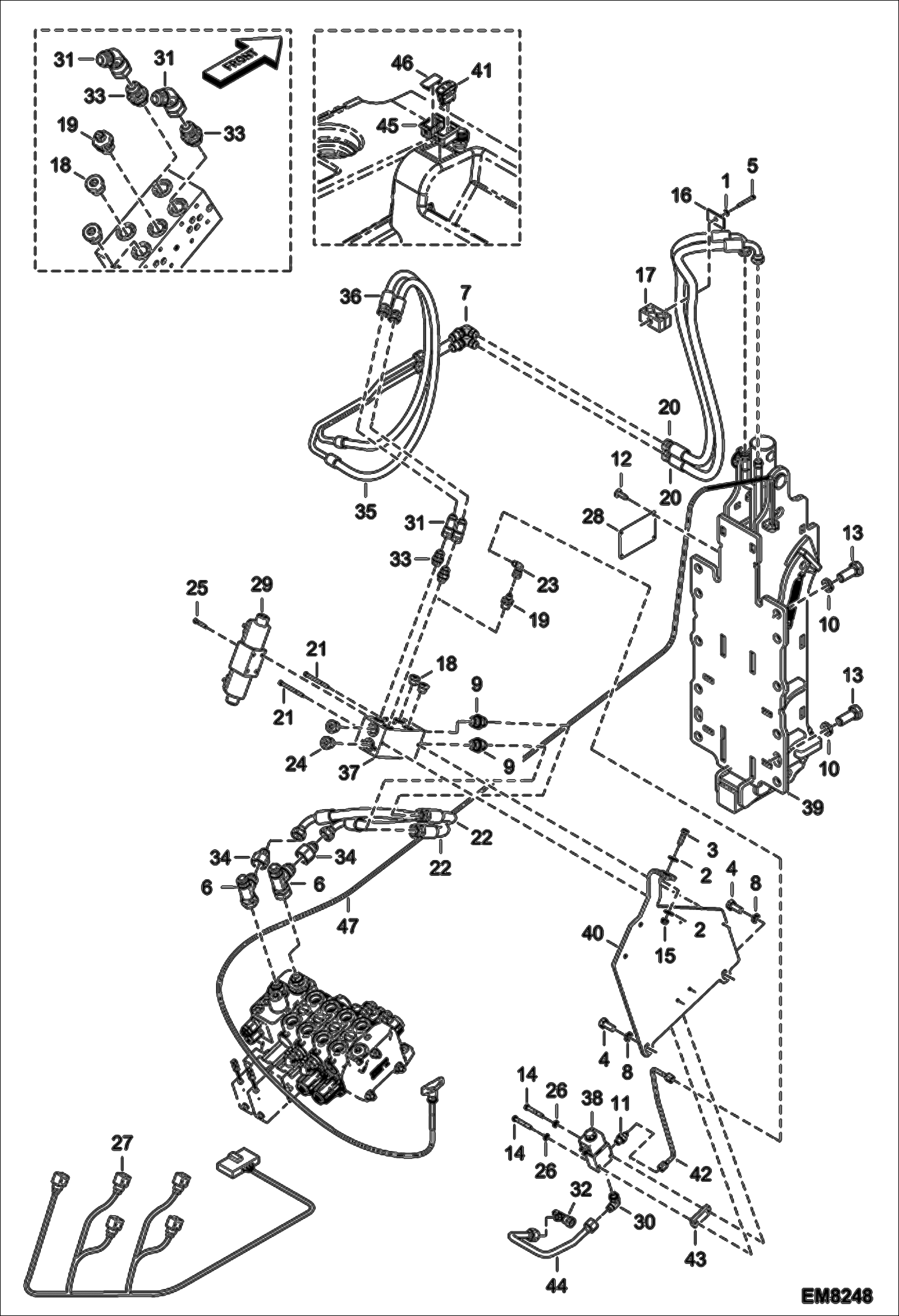

Запчасти Bobcat V518 REAR HYDRAULIC HOOK CIRCUITRY (S/N A8G815000 & Above, A8G915000 & Above) ACCESSORIES & OPTIONS

1

000350-01U

WASHER

2

000350-20Q

WASHER

3

01598-2

SCREW

4

01612-1

SCREW H M 12- 30/ CL 8.8 ZJ8

5

008338-28K

SCREW

6

008372-34M

UNION

7

010370-87T

ELBOW PIECE

8

11689-7

WASHER

9

014375-30H

UNION

10

15323-9

WASHER

11

022375-28V

UNION

12

43824-2

RIVET

13

44001-6

SCREW

14

1CM650

SCREW Was 48829-6 - A

15

01681-6

NUT Was 51851-4 - B

16

54215-9

PLATE

17

55605-0

COLLAR

18

56029-2

PLUG MALE 3/8 BSP ALLEN

19

65614-0

UNION

20

65716-3

HOSE, HYD

21

68566-9

SCREW

22

70225-8

HOSE

23

72294-2

ELBOW UNION

24

78743-2

PLUG

25

79160-8

SCREW

26

94574-1

WASHER

27

96589-7

WIRE HARNESS

28

PLATE, SERIAL NO. NAP

29

98360-1

VALVE, CONTROL

30

100370-18C

ELBOW PIECE

31

100371-17K

ELBOW

32

100372-06G

UNION

33

100375-38S

UNION

34

100375-44Z

REDUCER 1.1/16JIC 7/8JIC (20-16)

35

6909893

HOSE

36

6909894

HOSE

37

6911079

HYDRAULIC BLOCK

38

6911845

SOLENOID 2-2

39

6917366

HOOK

40

6922991

SUPPORT

41

6927721

SWITCH, HYD HOOK

42

6927949

HYDRAULIC TUBE

43

6927957

SPACER

44

6933444

TUBELINE

45

7178511

SOCKET, END

46

7178513

CAP, SOCKET

47

7009791

CABLE PULL
