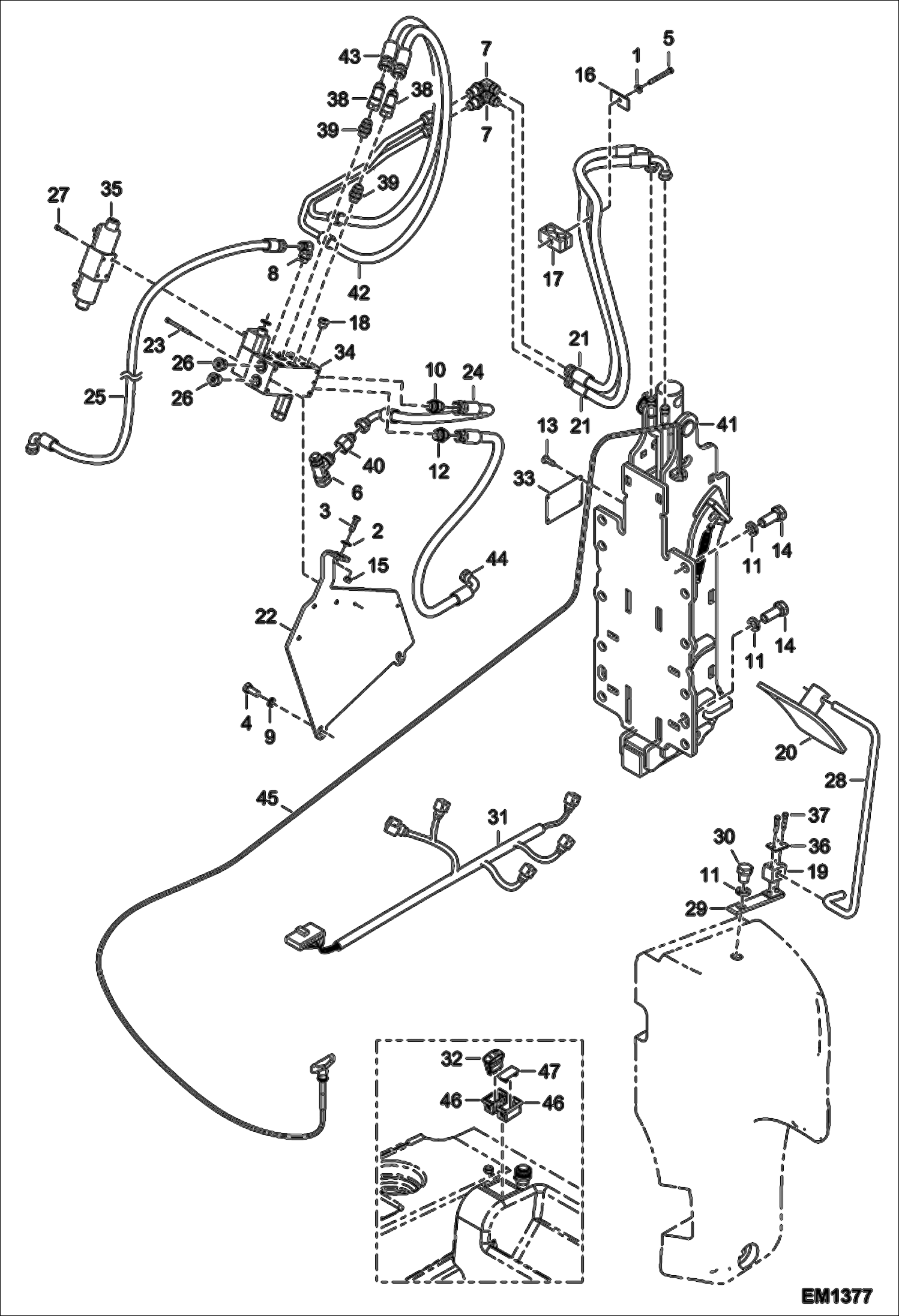

Запчасти Bobcat V518 REAR HYDRAULIC HOOK CIRCUITRY (S/N A8G811001 - 13001, A8G911001 - 13001) ACCESSORIES & OPTIONS

1

000350-01U

WASHER

2

000350-20Q

WASHER

3

01598-2

SCREW

4

01612-1

SCREW H M 12- 30/ CL 8.8 ZJ8

5

008338-28K

SCREW

6

008372-34M

UNION

7

010370-87T

ELBOW PIECE

8

010370-94B

ELBOW PIECE

9

11689-7

WASHER

10

014375-30H

UNION

11

15323-9

WASHER

12

022375-04U

UNION

13

43824-2

RIVET

14

44001-6

SCREW

15

01681-6

NUT Was 51851-4 - B

16

54215-9

PLATE

17

55605-0

COLLAR

18

56029-2

PLUG MALE 3/8 BSP ALLEN

19

7179623

SLEEVE Was 61358-8 - A

20

63860-1

MIROR

21

65716-3

HOSE, HYD Was 6910391 - A

22

6922991

SUPPORT Was 6916562 - A

23

68566-9

SCREW

24

70225-8

HOSE

25

72281-9

HOSE

26

78743-2

PLUG

27

79160-8

SCREW

28

79300-0

PIPE

29

84648-5

PLATE

30

96467-6

SCREW

31

96589-7

WIRE HARNESS

32

96598-8

SWITCH

32

6927721

SWITCH, HYD HOOK

33

PLATE, CE NAP Was 98167-0 - D

34

98356-9

AUXILIARY BLOCK

35

98360-1

VALVE, CONTROL

36

100228-57K

COVER

37

100338-23F

SCREW

38

100371-17K

ELBOW

39

100375-38S

UNION

40

100375-44Z

REDUCER 1.1/16JIC 7/8JIC (20-16)

41

6917366

HOOK

42

6909893

HOSE

43

6909894

HOSE

44

6910391

Adapter

45

7009791

CABLE PULL

46

7178511

SOCKET, END

47

7178513

CAP, SOCKET
