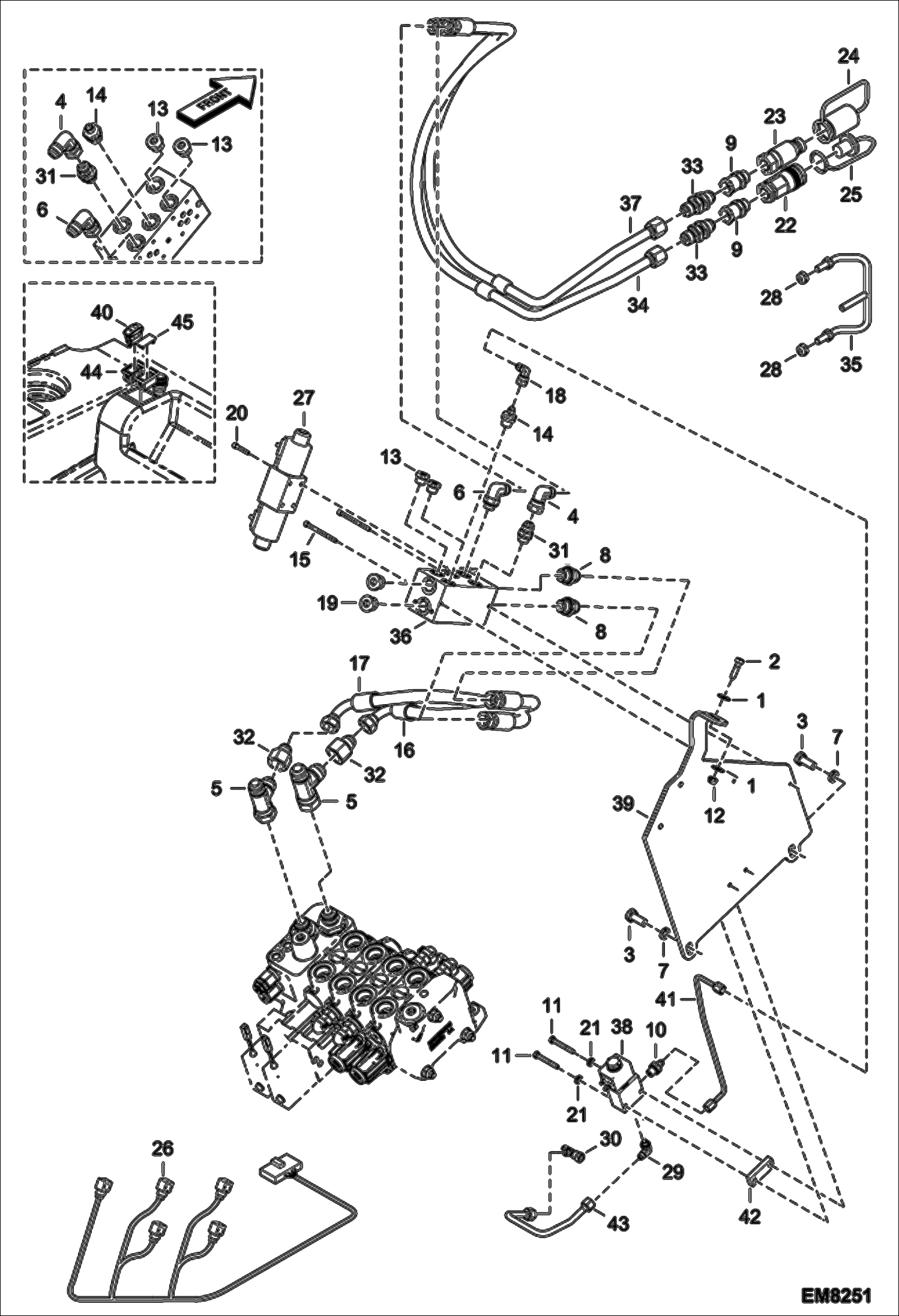

Запчасти Bobcat V518 REAR AUXILIARY HYDRAULICS (S/N A8G815000 & Above, A8G915000 & Above) ACCESSORIES & OPTIONS

1

000350-20Q

WASHER

2

01598-2

SCREW

3

01612-1

SCREW H M 12- 30/ CL 8.8 ZJ8

4

008372-01B

ELBOW PIECE

5

008372-34M

UNION

6

010370-94B

ELBOW PIECE

7

11689-7

WASHER

8

014375-30H

UNION

9

7225156

FITTING, HYD Was 022375-06W - A

10

022375-28V

UNION

11

1CM650

SCREW Was 48829-6 - A

12

01681-6

NUT Was 51851-4 - B

13

56029-2

PLUG MALE 3/8 BSP ALLEN

14

65614-0

UNION

15

68566-9

SCREW

16

70225-8

HOSE

17

70225-8

HOSE

18

72294-2

ELBOW UNION

19

78743-2

PLUG

20

79160-8

SCREW

21

94574-1

WASHER

22

7186826

COUPLER, QUICK FEMALE Was 95993-2 - A

23

7225159

COUPLER, HYD Was 95994-0 - A

24

7225160

CAP, COUPLER Was 96513-7 - A

25

7225161

CAP, COUPLER Was 96514-5 - A

26

96589-7

WIRE HARNESS

27

98360-1

VALVE, CONTROL

28

100345-09A

NUT

29

100370-18C

ELBOW PIECE

30

100372-06G

UNION

31

100375-38S

UNION

32

100375-44Z

REDUCER 1.1/16JIC 7/8JIC (20-16)

33

100375-52H

UNION

34

6910275

Hose

35

6910517

PROTECTOR

36

6911079

HYDRAULIC BLOCK

37

6911164

HOSE

38

6911845

SOLENOID 2-2

39

6922991

SUPPORT

40

6927725

SWITCH, REAR HYD

41

6927949

HYDRAULIC TUBE

42

6927957

SPACER

43

6933444

TUBELINE

44

7178511

SOCKET, END

45

7178513

CAP, SOCKET
