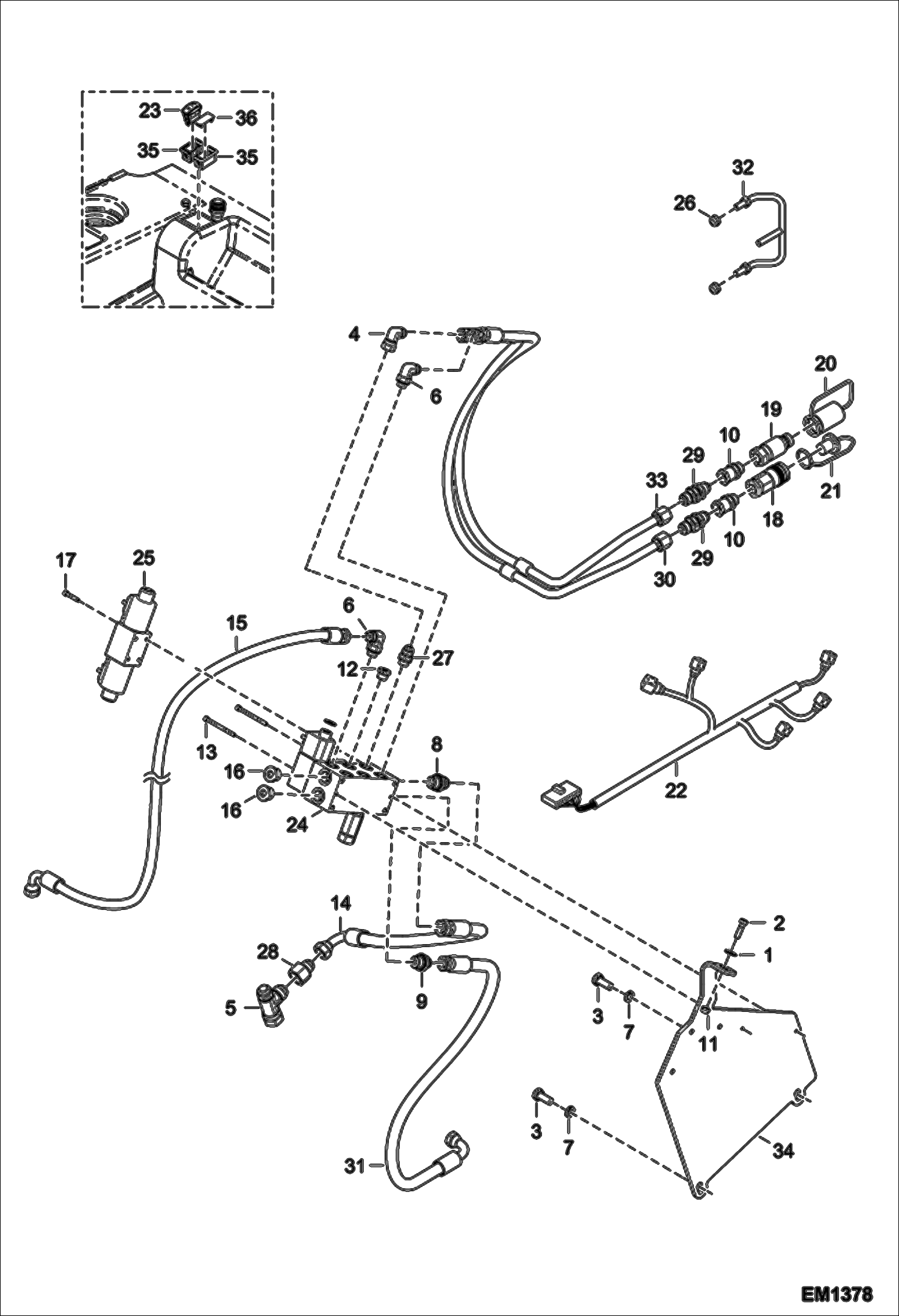

Запчасти Bobcat V518 REAR AUXILIARY HYDRAULICS (S/N A8G811001 - 13001, A8G911001 - 13001) ACCESSORIES & OPTIONS

1

000350-20Q

WASHER

2

01598-2

SCREW

3

01612-1

SCREW H M 12- 30/ CL 8.8 ZJ8

4

008372-01B

ELBOW PIECE

5

008372-34M

UNION

6

010370-94B

ELBOW PIECE

7

11689-7

WASHER

8

014375-30H

UNION

9

022375-04U

UNION

10

7225156

FITTING, HYD Was 022375-06W - A

11

01681-6

NUT Was 51851-4 - B

12

56029-2

PLUG MALE 3/8 BSP ALLEN

13

68566-9

SCREW

14

70225-8

HOSE

15

72281-9

HOSE

16

78743-2

PLUG

17

79160-8

SCREW

18

7186826

COUPLER, QUICK FEMALE Was 95993-2 - A

19

7225159

COUPLER, HYD Was 95994-0 - A

20

7225160

CAP, COUPLER Was 96513-7 - A

21

7225161

CAP, COUPLER Was 96514-5 - A

22

96589-7

WIRE HARNESS

23

96599-6

SWITCH

23

6927725

SWITCH, REAR HYD

24

98356-9

AUXILIARY BLOCK

25

98360-1

VALVE, CONTROL

26

100345-09A

NUT

27

100375-38S

UNION

28

100375-44Z

REDUCER 1.1/16JIC 7/8JIC (20-16)

29

100375-52H

UNION

30

6910275

Hose

31

6910391

Adapter

32

6910517

PROTECTOR

33

6911164

HOSE

34

6922991

SUPPORT Was 6916562 - A

35

7178511

SOCKET, END

36

7178513

CAP, SOCKET
