Запчасти Bobcat V518 EXTRA COOLING (S/N A8G812050 & Above, A8G912002 & Above) ACCESSORIES & OPTIONS

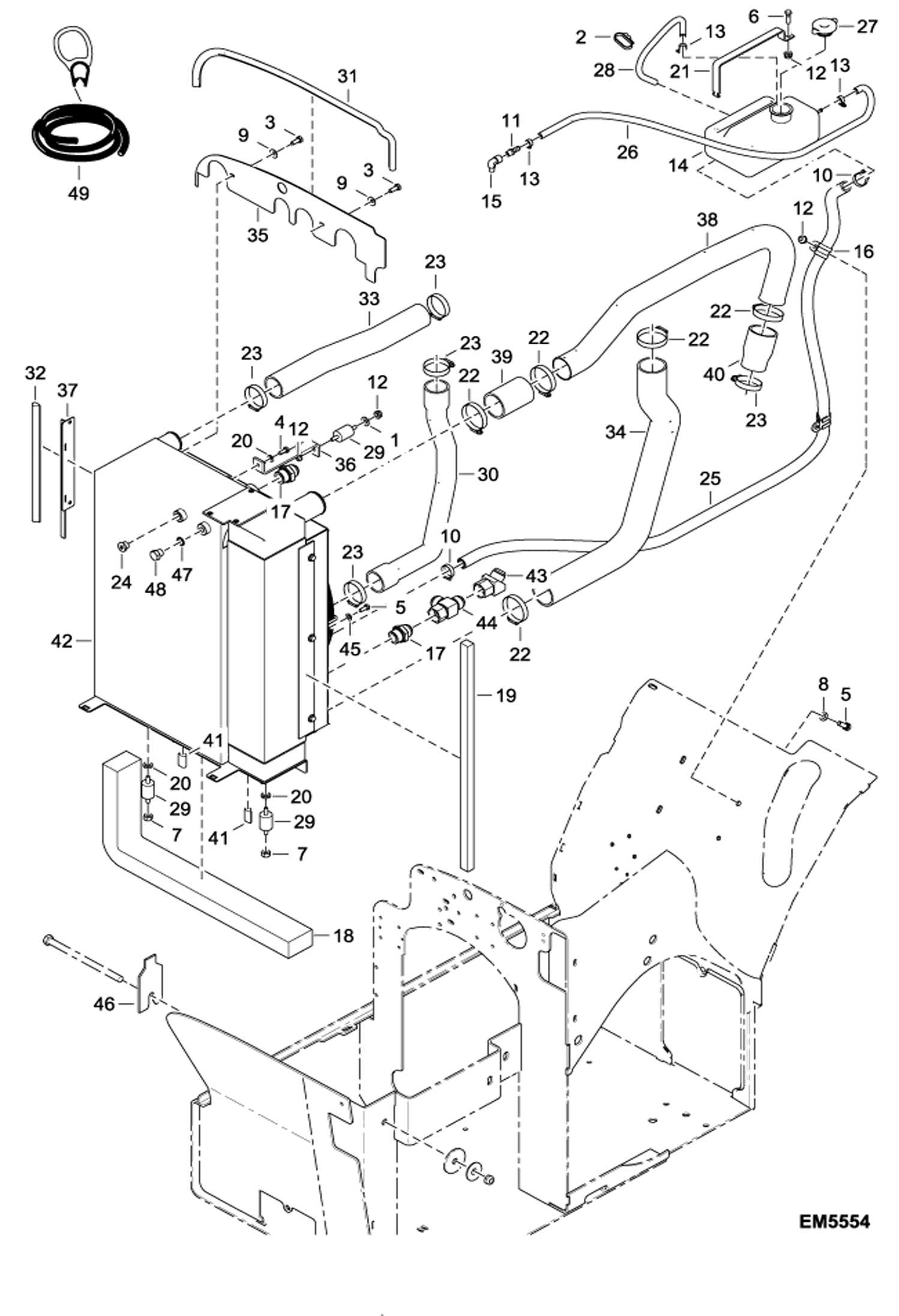

Схема запчастей Bobcat V518 - EXTRA COOLING (S/N A8G812050 & Above, A8G912002 & Above) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

000350-02V

WASHER

2

6624289

STRAP, TIE

3

01590-9

SCREW

4

1CM820

BOLT Was 01596-6 - B

5

4CM825

BOLT Was 01597-4 - B

6

01598-2

SCREW

7

4DM8

NUT Was 01668-3 - B

8

01697-2

WASHER

9

01717-8

WASHER

10

11734-1

COLLAR BC 9 20X32

11

014375-97F

UNION

12

01681-6

NUT Was 51851-4 - B

13

5HM14

CLAMP Was 62231-6 - A

14

78688-9

EXPANSION TANK

15

78745-7

ELBOW PIECE

16

84729-3

COLLAR

17

85170-9

UNION 1.5/16JIC 1 BSP

18

88394-2

ADHESIVE SPONGE

19

88395-9

ADHESIVE SPONGE

20

89519-3

WASHER

21

90490-4

PLATE

22

100369-55H

COLLAR

23

42HS30

CLAMP, HOSE Was 100369-80K - A

24

100374-14H

PLUG

25

6908901

HOSE D19 L2050

26

6908902

HOSE D10 L1080

27

6909875

PLUG , RADIATOR

28

6910264

HOSE D7L400

29

6910966

BUSHING , RUBBER , RADIATOR

30

6910970

HOSE

31

TRIM, EDGE NAP - 950 mm (37.4'') long - Order Ref. 49

32

TRIM, EDGE NAP - 360 mm (14.2'') long - Order Ref. 49

33

6919939

HOSE

34

6921108

HOSE

35

6921188

PLATE

36

6921191

PLATE

37

6921241

PLATE

38

6923939

PIPE

39

6924096

SLEEVE

40

6924097

REDUCER SLEEVE

41

TRIM, EDGE NAP - 35 mm (1.4'') long - Order Ref. 49

42

6933947

RADIATOR See Illustration EXTRA COOLING RADIATOR/ EM8429 Was 6927758 - A

43

12K10

FITTING

44

13K10

TEE

45

6932420

SPACER

46

6934751

PLATE

47

34765-8

COPPER RING

48

6911759

PLUG MALE M14X1.25 ALLEN

49

62736-4

SEAL BULK/METER bulk - sold per foot

Выбрано товаров: 49
