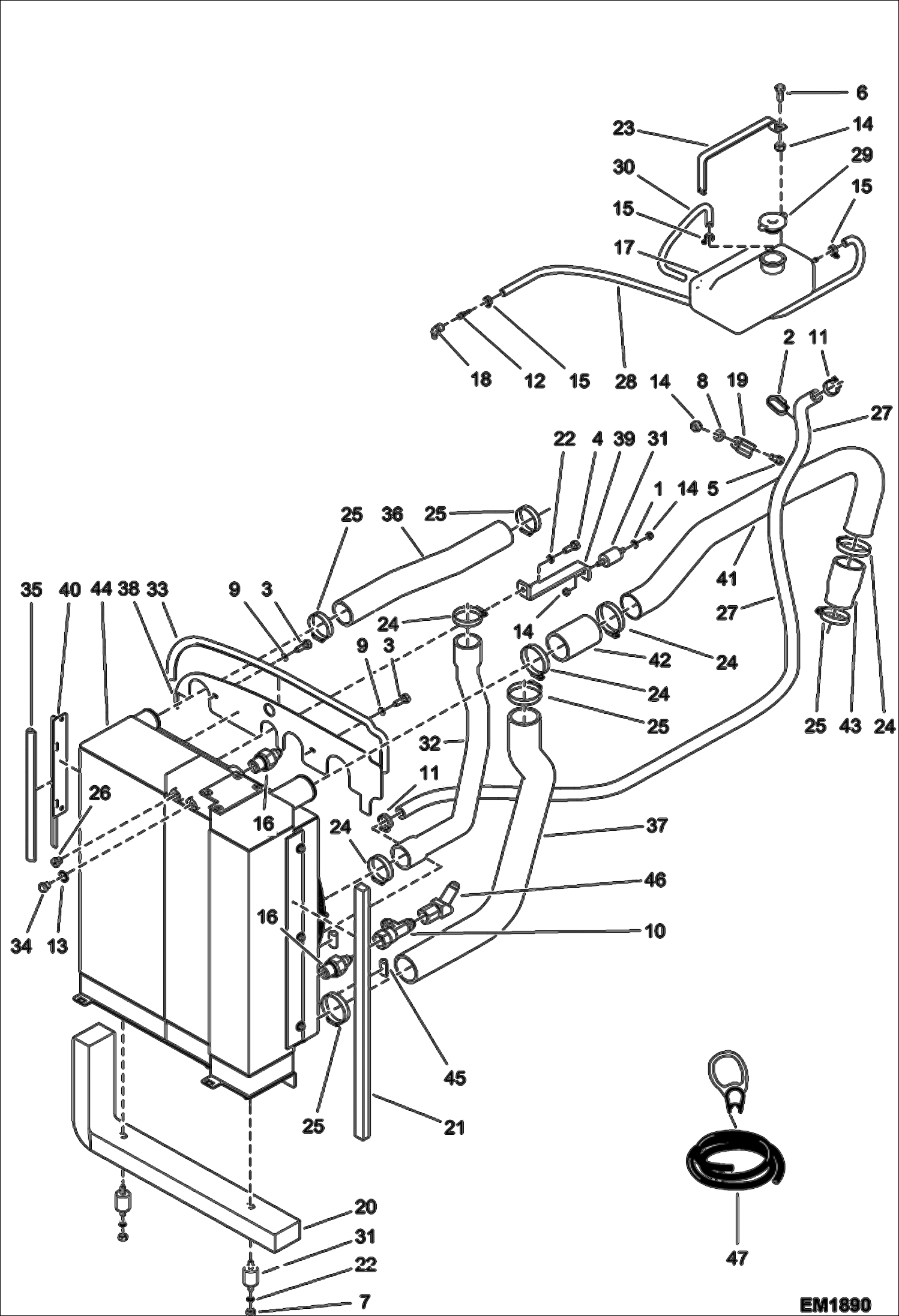

Запчасти Bobcat V518 COOLING SYSTEM INSTALLATION (S/N A8G811001-12049, A8G911001-12001) POWER UNIT

1

000350-02V

WASHER

2

6624289

STRAP, TIE

3

01590-9

SCREW

4

1CM820

BOLT Was 01596-6 - B

5

4CM825

BOLT Was 01597-4 - B

6

01598-2

SCREW

7

4DM8

NUT Was 01668-3 - B

8

01697-2

WASHER

9

01717-8

WASHER

10

008372-34M

UNION

11

11734-1

COLLAR BC 9 20X32

12

014375-97F

UNION

13

34765-8

COPPER RING

14

01681-6

NUT Was 51851-4 - B

15

5HM14

CLAMP Was 62231-6 - A

16

68609-7

UNION 1.1/16 JIC 1 BSPP

17

78688-9

EXPANSION TANK

18

78745-7

ELBOW PIECE

19

84729-3

COLLAR

20

88394-2

ADHESIVE SPONGE

21

88395-9

ADHESIVE SPONGE

22

89519-3

WASHER

23

90490-4

PLATE

24

100369-55H

COLLAR

25

42HS30

CLAMP, HOSE 100369-80K - !!!CLAMP Was 100369-80K - A

26

100374-14H

PLUG

27

6908901

HOSE D19 L2050

28

6908902

HOSE D10 L1080

29

6909875

PLUG , RADIATOR

30

6910264

HOSE D7L400

31

6910966

BUSHING , RUBBER , RADIATOR

32

6910970

HOSE

33

TRIM, EDGE NAP - 950 mm (37.4'') long - Order Ref. 47

34

6911759

PLUG MALE M14X1.25 ALLEN

35

TRIM, EDGE NAP - 360 mm (14.2'') long - Order Ref. 47

36

6919939

HOSE

37

6921108

HOSE

38

6921188

PLATE

39

6921191

PLATE

40

6921241

PLATE

41

6923939

PIPE

42

6924096

SLEEVE

43

6924097

REDUCER SLEEVE

44

6933946

RADIATOR See Illustration RADIATOR/ EM1385 Was 6924387 - A

45

TRIM, EDGE NAP - 35 mm (1.4'') long - Order Ref. 47

46

12K8

ELBOW

47

62736-4

SEAL BULK/METER bulk - sold per foot
