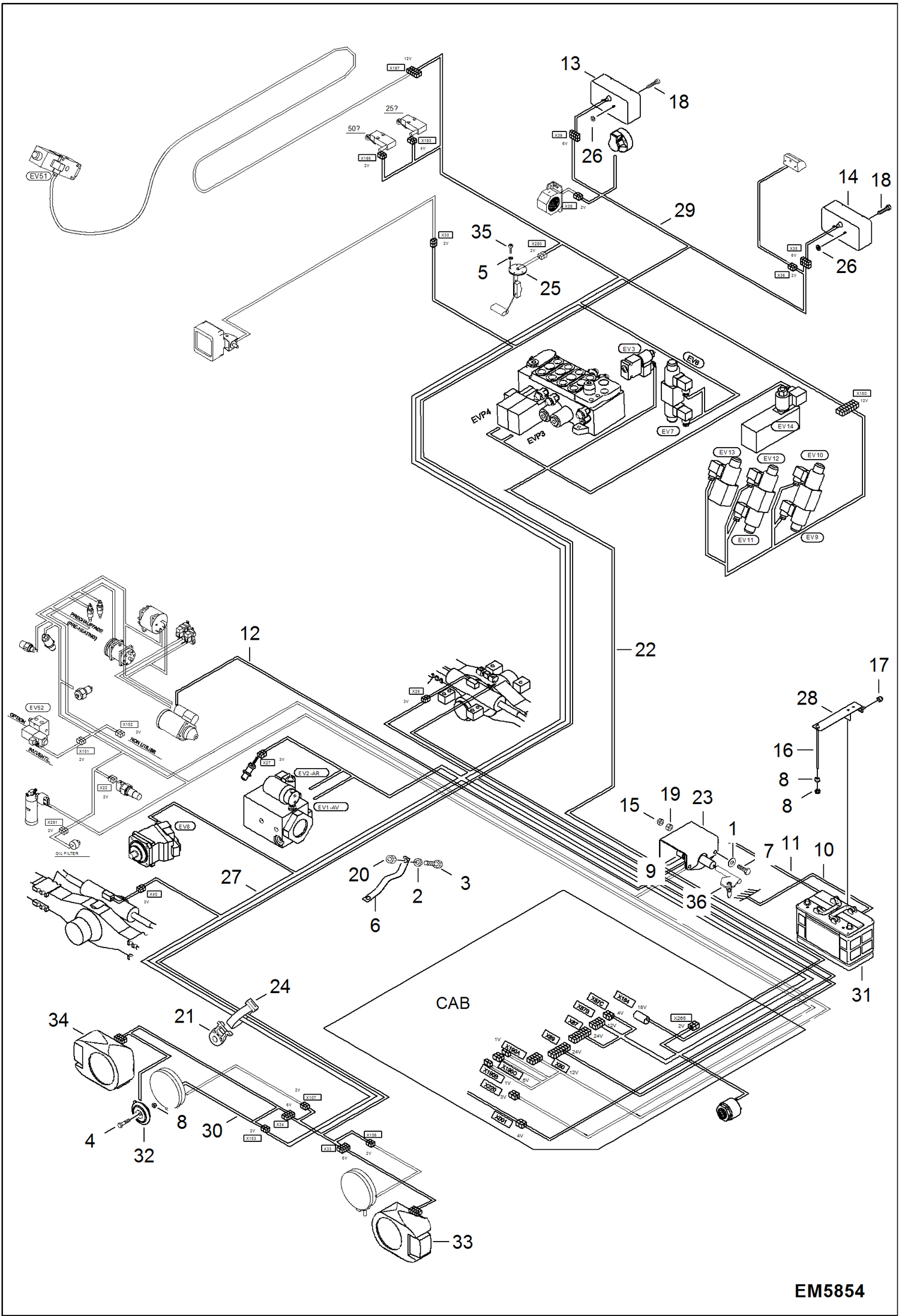

Запчасти Bobcat V518 CHASSIS ELECTRICAL CIRCUITRY (S/N A8G813000 & Above, A8G913000 & Above) ELECTRICAL SYSTEM

1

000350-01U

WASHER

2

000350-03W

WASHER

3

01606-3

SCREW

4

10947-0

SCREW

5

13415-5

WASHER See Illustration FUEL TANK INSTALLATION/ EM5850

6

018472-83R

CABLE See Illustration ENGINE ELECTRICAL COMPONENTS INSTALLATION/ EM5128

7

41821-0

SCREW

8

01681-6

NUT Was 51851-4 - B

9

65764-3

BATTERY, DISCONNECT W/Ref. 36

10

78869-5

BATTERY CABLE negative

11

79861-1

BATTERY CABLE positive

12

79862-9

WIRE HARNESS

13

7225546

LIGHT, REAR RH Was 82265-0 - A

13

97260-4

GLASS,RT LIGHT

13

27089-2

BULB, FRONT AND REAR LIGHT 21W

13

6909955

BULB 21/5W

14

7225545

LIGHT, REAR LH Was 82266-8 - A

14

97261-2

GLASS,LFT LIGHT

14

27089-2

BULB, FRONT AND REAR LIGHT 21W

14

6909955

BULB 21/5W

15

85837-3

NUT

16

96072-4

TIE ROD

17

96956-8

NUT CAP H M8

18

100329-01C

SCREW

19

100345-06W

NUT

20

100345-09A

NUT

21

7015668

MOUNT, STRAP TIE Was 6678666 - A

22

6911357

HARNESS , VALVE

22

6932955

HARNESS MAIN VALVE

23

6914908

PLATE

24

6916369

TIE, CABLE

25

6918307

LEVEL TRANSMITTER, FUEL See Illustration FUEL TANK INSTALLATION/ EM5850

26

7225547

WASHER Was 6921479 - A

27

6923910

HARNESS

27

6932951

HARNESS FRAME

28

6926853

BRACKET FOR BATTERY

29

6927787

HARNESS

30

6927788

HARNESS, KLAXON

31

6665427

BATTERY, DRY 950 AMP Was 7160984 - A

32

100417-11D

HORN Was 7164107 - A

33

7164373

LIGHT, LEFT

33

7022666

BULB, H4 60/55W 12V

33

7022668

BULB, PY21W 12V

33

7022667

BULB, W5W 12V

34

7164374

LIGHT, RIGHT

34

7022666

BULB, H4 60/55W 12V

34

7022668

BULB, PY21W 12V

34

7022667

BULB, W5W 12V

35

100329-01C

SCREW See Illustration FUEL TANK INSTALLATION/ EM5850

36

66181-9

HANDLE
