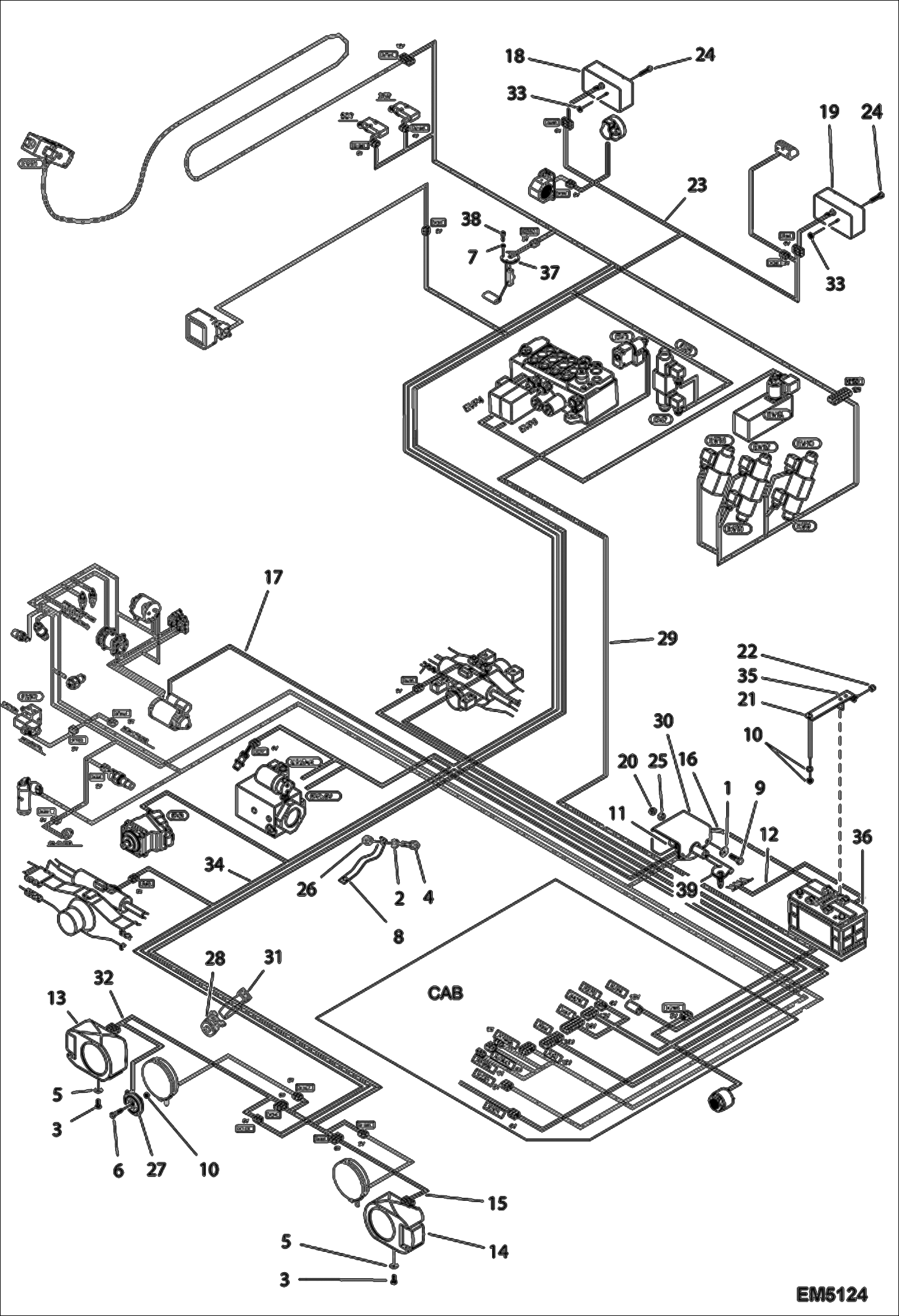

Запчасти Bobcat V518 CHASSIS ELECTRICAL CIRCUITRY (S/N A8G811001 - 12999, A8G911001 - 12999) ELECTRICAL SYSTEM

1

000350-01U

WASHER

2

000350-03W

WASHER

3

1CM820

BOLT Was 01596-6 - B

4

01606-3

SCREW

5

01718-6

WASHER

6

10947-0

SCREW

7

13415-5

WASHER See Illustration FUEL TANK INSTALLATION/ EM1335

8

018472-83R

CABLE See Illustration ENGINE ELECTRICAL COMPONENTS INSTALLATION/ EM5128

9

41821-0

SCREW

10

01681-6

NUT Was 51851-4 - B

11

65764-3

BATTERY, DISCONNECT W/Ref. 39

12

78869-5

BATTERY CABLE negative

13

79533-6

LIGHT RH

14

79534-4

LIGHT LH

15

79539-3

WIRE HARNESS LH

16

79861-1

BATTERY CABLE positive

17

79862-9

WIRE HARNESS

18

7225546

LIGHT, REAR RH Was 82265-0 - A

18

97260-4

GLASS,RT LIGHT

18

27089-2

BULB, FRONT AND REAR LIGHT 21W

18

6909955

BULB 21/5W

19

7225545

LIGHT, REAR LH Was 82266-8 - A

19

97261-2

GLASS,LFT LIGHT

19

27089-2

BULB, FRONT AND REAR LIGHT 21W

19

6909955

BULB 21/5W

20

85837-3

NUT

21

96072-4

TIE ROD

22

96956-8

NUT CAP H M8

23

6923914

LIGHTS HARNESS Was 98086-2 - A

24

100329-01C

SCREW

25

100345-06W

NUT

26

100345-09A

NUT

27

100417-11D

HORN

28

7015668

MOUNT, STRAP TIE Was 6678666 - A

29

6911357

HARNESS , VALVE

30

6914908

PLATE

31

6916369

TIE, CABLE

32

6917889

HARNESS Was 96587-1 - A

33

7225547

WASHER Was 6921479 - A

34

6923910

HARNESS Was 6911732 - A

35

6926853

BRACKET FOR BATTERY

36

6665427

BATTERY, DRY 950 AMP Was 7160984 - A

37

6918307

LEVEL TRANSMITTER, FUEL See Illustration FUEL TANK INSTALLATION/ EM1335

38

100329-01C

SCREW See Illustration FUEL TANK INSTALLATION/ EM1335

39

66181-9

HANDLE
