Запчасти Bobcat V518 AIR CONDITIONING (S/N A8G811001 - 12049) MAIN FRAME

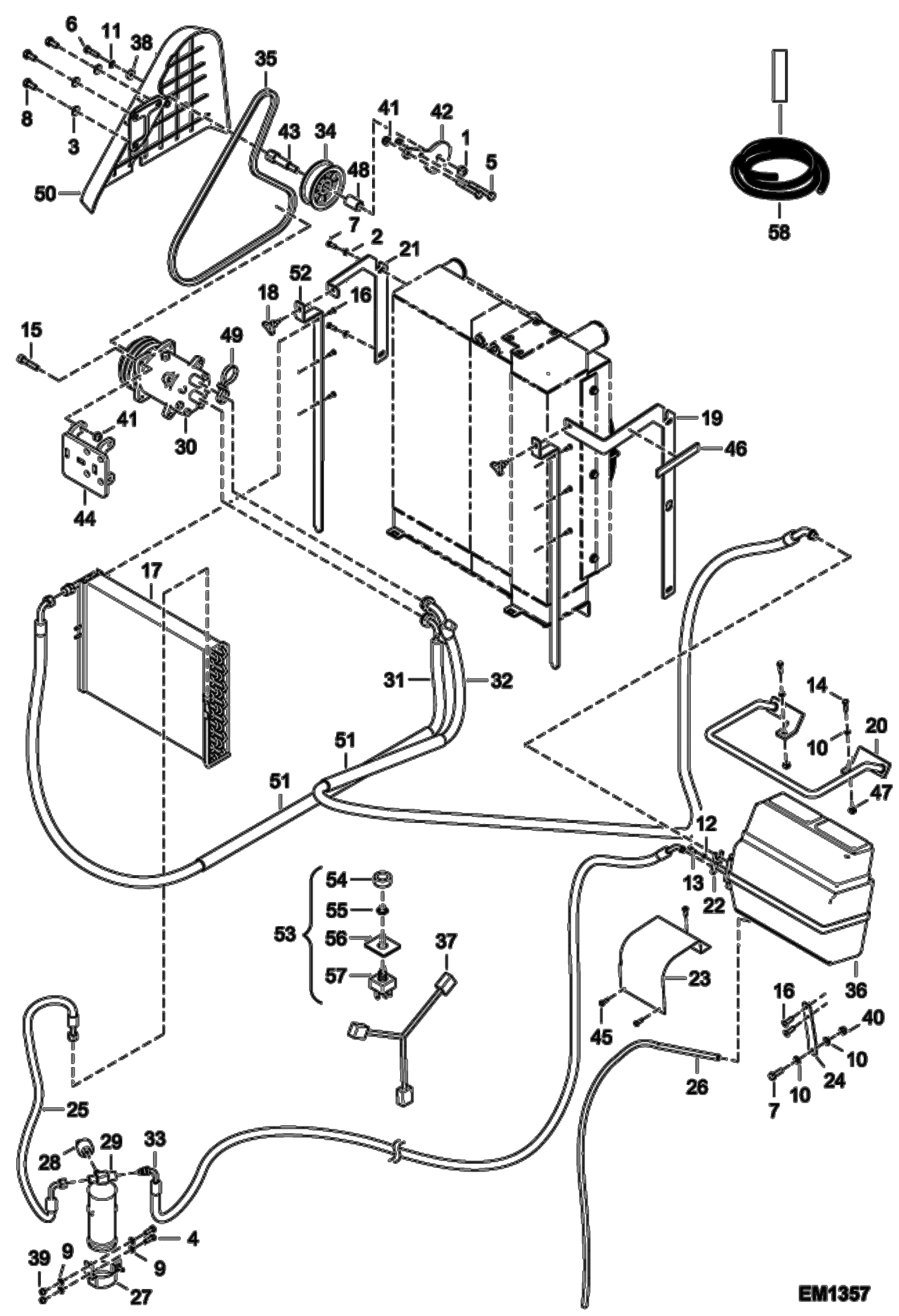

Схема запчастей Bobcat V518 - AIR CONDITIONING (S/N A8G811001 - 12049) MAIN FRAME

Артикул

Название

Примечание

Количество

1

000345-96E

NUT

2

000350-01U

WASHER

3

000350-03W

WASHER

4

01478-7

SCREW

5

01522-2

SCREW

6

01578-4

SCREW

7

01591-7

SCREW

8

01605-5

SCREW

9

01695-6

WASHER

10

01696-4

WASHER

11

01697-2

WASHER

12

13416-3

WASHER

13

15354-4

SCREW

14

41821-0

SCREW Was 01591-7 - A

15

54009-6

SCREW

16

66679-2

RIVET

17

81439-2

CONDENSOR

18

85171-7

BUTTON

19

6924076

LH FIXING PLATE Was 6911210 - A

20

6925115

PROTECTOR

21

6924074

RH FIXING PLATE Was 6911209 - A

22

88826-3

BRACKET

23

88827-1

COVER

24

88830-5

PLATE

25

88844-6

HOSE

26

88848-7

HOSE, WATER 79'' (2 M) LONG

27

89641-5

BRACKET

28

89642-3

CONNECTOR

29

89643-1

FILTER

30

89644-9

COMPRESSOR, A/C

31

89647-2

HOSE

32

89648-0

HOSE

33

89649-8

HOSE

34

90531-5

ROLLER

35

90545-5

BELT

36

96082-3

EVAPORATOR

37

96083-1

HARNESS

38

97610-0

WASHER

39

100345-05V

NUT

40

100345-06W

NUT

41

100345-09A

NUT

42

6919954

PULLEY SUPPORT Was 6908180 - A

43

6908181

SPINDLE

44

6909391

COMPRESSOR BRACKET

45

6910951

SCREW

46

SEAL NAP - 150 mm (5.9'') long - Order Ref. 58

47

6914086

NUT

48

6914328

SPACER

49

6915851

COLLAR

50

6919502

BELT PROTECTOR Was 6915517 - A

51

6921416

PROTECTOR

52

6922536

SUPPORT Was 6911207 - A

53

88825-5

SWITCH W/Ref. 54-57

54

6914433

CLIM BUTTON

55

6925361

NUT

56

6914431

PLATE

57

88825-5

SWITCH Was 6925362 - A

58

36912-4

SEAL bulk - sold per foot

Выбрано товаров: 58
