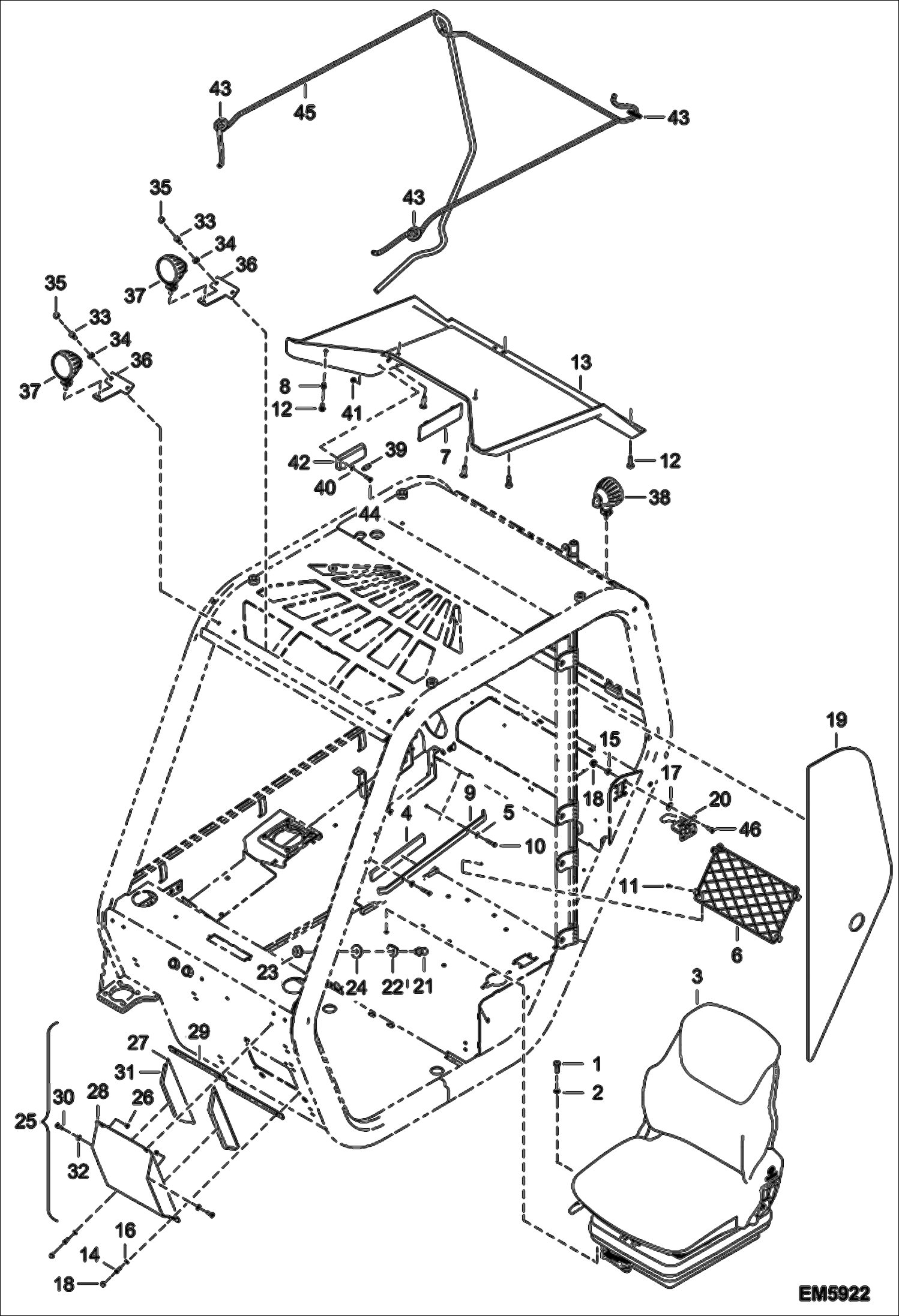

Запчасти Bobcat V518 OPERATOR CAB II (S/N A8G813000 & Above) MAIN FRAME

1

1CM820

BOLT Was 01596-6 - B

2

89519-3

WASHER

3

7181512

SEAT See Illustration SEAT & SUSPENSION/ EM10096 W/headrest

3

7218933

SEAT See Illustration SEAT & SUSPENSION/ EM10095 W/O headrest

4

6910908

FOAM STRIP

5

01717-8

WASHER

6

7193037

NET, MANUAL Was 75883-9 - B

7

79581-5

CAP

8

86167-4

NUT

9

97504-5

HANDLE

10

100338-23F

SCREW

11

6910999

SCREW

12

6932399

SCREW

13

6932400

UPPER COWLING

14

01590-9

SCREW

15

01666-7

NUT

16

01696-4

WASHER

17

01717-8

WASHER

18

63332-1

CAP

19

6908789

WINDOW PANE,REAR LEFT

20

6910552

DOOR STOP

21

6910946

CATCH,LATCH

22

6910947

LATCH PROTECTOR

23

6910948

CATCH,LATCH

24

6910949

WASHER

25

6918862

BOX FILTER Ref. 26-32

26

01664-2

NUT , HM4

27

6910502

FILTER

28

6910503

FILTER BOX

29

6910504

SEAL

30

6910505

SCREW

31

6910929

INTERNAL GRID

32

6910936

WASHER JZC4

33

01591-7

SCREW

34

29272-2

WASHER

35

63332-1

CAP

36

6932245

BRACKET

37

7146784

WORK LIGHT front

37

7021771

BULB GE886 12V-50W 12V - 50W

38

7146784

WORK LIGHT rear

38

7021771

BULB GE886 12V-50W 12V - 50W

39

7228077

BULB, LIGHT Was 01443-1 - A

40

007346-02F

WASHER

41

100345-04U

NUT

42

7228070

LIGHT, DOME Was 101438-93V - A

43

6909953

GROMMET , 37X45X32/3

44

6910505

SCREW

45

6932244

HARNESS, UPPER

46

25GM5016

BOLT
