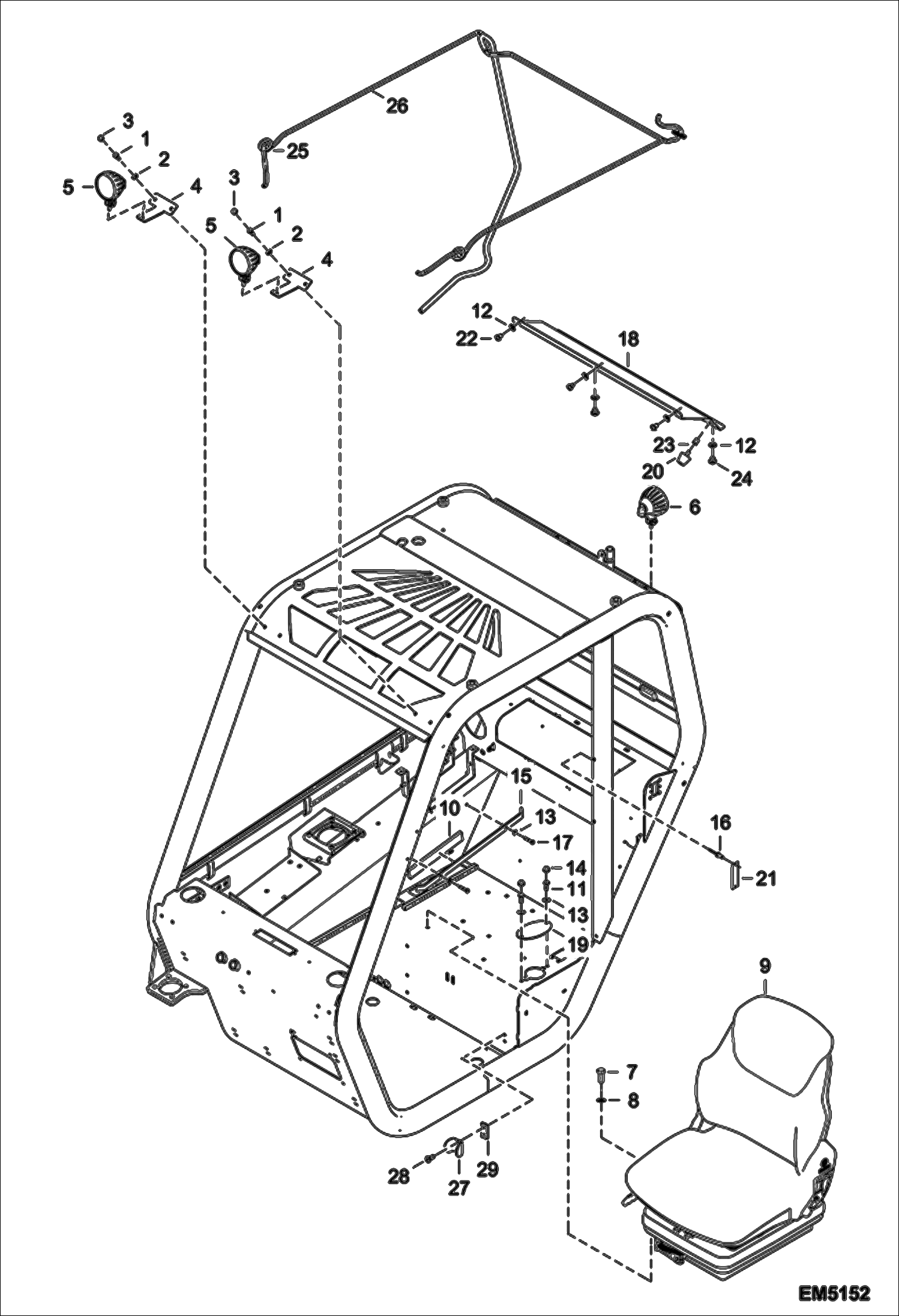

Запчасти Bobcat V518 OPERATOR CANOPY II (S/N A8G911001 & Above) MAIN FRAME

1

01591-7

SCREW Was 01590-9 - A

2

29272-2

WASHER

3

63332-1

CAP

4

6932245

BRACKET

5

78815-8

WORK LIGHT Was 6909971 - D

5

7146784

WORK LIGHT (front)

5

7021771

BULB GE886 12V-50W 12V - 50W

6

78816-6

WORK LIGHT REAR Was 6909970 - D

6

7146784

WORK LIGHT (rear)

7

1CM820

BOLT Was 01596-6 - B

8

89519-3

WASHER

9

6909060

SEAT See Illustration SEAT/ EM5162

10

6910908

FOAM STRIP

11

01590-9

SCREW

12

01696-4

WASHER

13

01717-8

WASHER

14

63332-1

CAP

15

97504-5

HANDLE Was 6909920 - D

16

97964-1

RIVET

17

100338-23F

SCREW

18

6909198

COVER , REAR CAB

19

6909199

COVER

20

6909902

ABUTMENT

21

6909961

PLATE , MFG

22

6909999

SCREW , SELF TAPPING 5X12

23

6910932

INSERT M8

24

6910937

SCREW

25

6909953

GROMMET , 37X45X32/3

26

97236-4

WIRING

26

6932244

HARNESS, UPPER

27

6909919

GUIDE , LORS

28

6909997

SCREW FHC M6X16

29

6914792

PLATE
