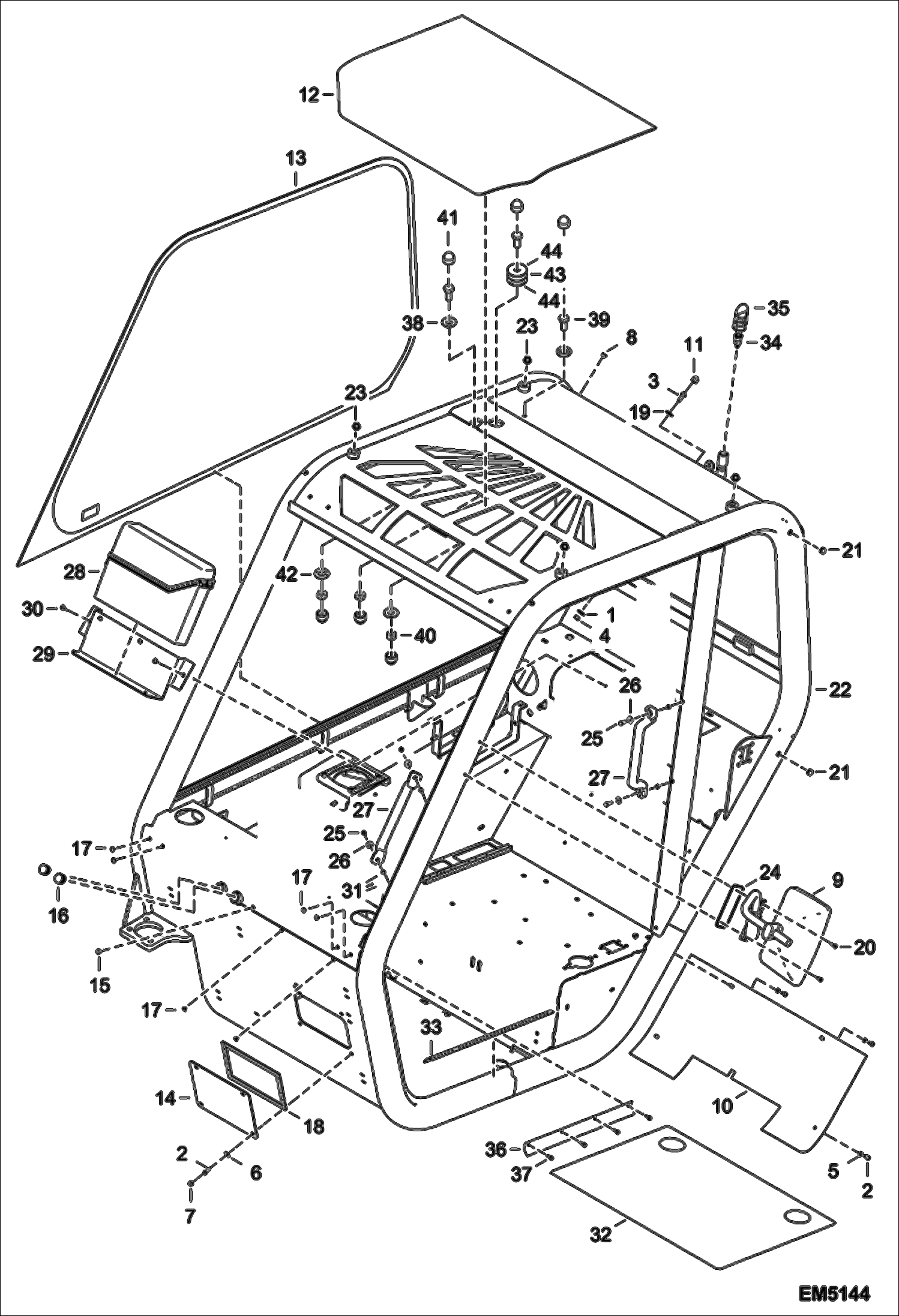

Запчасти Bobcat V518 OPERATOR CANOPY (S/N A8G911001 & Above) MAIN FRAME

1

000346-11V

WASHER

2

01590-9

SCREW

3

1CM820

BOLT Was 01596-6 - B

4

4DM8

NUT Was 01668-3 - B

5

01696-4

WASHER

6

29272-2

WASHER

7

63332-1

CAP

8

68952-1

PLUG Was 67368-1 - B

9

79903-1

MIRROR, SIDE REAR W/bracket

9

6925400

MIRROR, W/O BRACKET W/O bracket

10

96074-0

SUPPORT

11

96956-8

NUT CAP H M8 Was 63333-9 - A

12

6908786

WINDOW, TOP ROOF

13

6908788

RH WINDOW PANE RH

14

6909200

COVER

15

6909906

PLUG

16

6909907

PLUG

17

6909908

PLUG

18

6909929

SEAL , FOAM 10X4 L 700

19

6909963

WASHER, FIBER 13X22X2

20

6909997

SCREW FHC M6X16

21

6910930

GUIDE

22

6914797

FRAME Was 6911003 - D

23

6918679

PLUG Was 57702-3 - A

24

CONNECTION NAP - Order Ref. 9

25

01591-7

SCREW

26

29272-2

WASHER

27

63349-5

HANDLE

28

6708827

CONTAINER

29

6909786

MANUAL HOLDER BRACKETT

30

6910937

SCREW

31

6914407

SPACER

32

6914753

GROUND CARPET

33

6915508

NON SKID

34

78818-2

CONNECTION

35

78819-0

PLUG

36

6914793

PLATE, FOLDED

37

6914796

SCREW, SELF-TAPPING

38

000350-20Q

WASHER

39

1CM820

BOLT Was 01596-6 - B

40

4DM8

NUT Was 01668-3 - B

41

96956-8

NUT CAP H M8

42

6909963

WASHER, FIBER 13X22X2

43

6909964

WASHER , FIBER 9X30X2

44

6910976

WASHER
