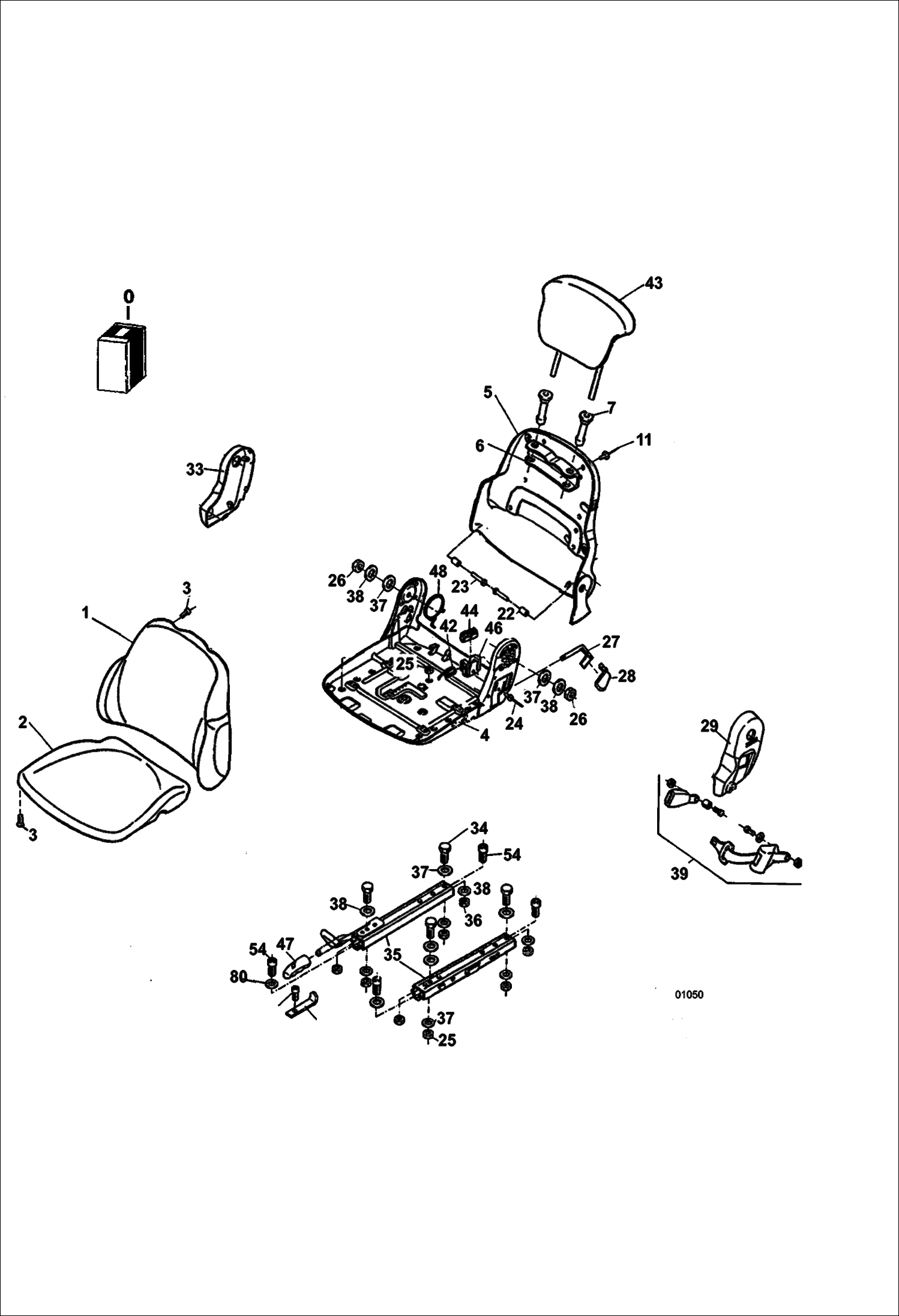

Запчасти Bobcat V518 SEAT CHASSIS

0

96039-3

SEAT ( US STANDARD ) See Illustration SEAT SUSPENSION/ V01049 With Closed Cab

0

6909060

SEAT See Illustration SEAT SUSPENSION/ V01049 With Canopy

1

97141-6

BACKREST CUSHION With Closed Cab

1

7019021

CUSHION BACKREST With canopy - Was 98625-7 - A

2

97142-4

SEAT CUSHION With Closed Cab

2

98626-5

SEAT CUSHION With Canopy

3

97143-2

SCREW With Closed Cab

3

98627-3

SCREW With Canopy

4

97144-0

SEAT

5

97145-7

BACKREST

6

97146-5

BRACKET

7

97147-3

GUIDE

11

RIVET

22

97148-1

BUSHING

23

97149-9

SCREW

24

97150-7

RIVET

25

97151-5

NUT

26

97152-3

NUT

27

97153-1

LEVER

28

97154-9

HANDLE

29

98628-1

L.H. COVER L.H. - With Closed Cab - Was 97155-6 - A

29

98628-1

L.H. COVER With Canopy

33

97330-5

PLATE

34

97156-4

SCREW

35

97157-2

SET OF RAILS

36

97158-0

NUT

37

97159-8

WASHER

38

97160-6

WASHER

39

97081-4

SEAT BELT With Closed Cab

39

98629-9

SEAT BELT With Canopy

42

97161-4

SPRING With Closed Cab

42

98630-7

SPRING With Canopy

43

97162-2

BACKREST Ref. 6,7,11,43 - With Closed Cab

44

97163-0

STOP

46

97331-3

PLATE

47

97102-8

HANDLE

48

97165-5

SPRING

54

11968-5

SCREW

80

01697-2

WASHER
