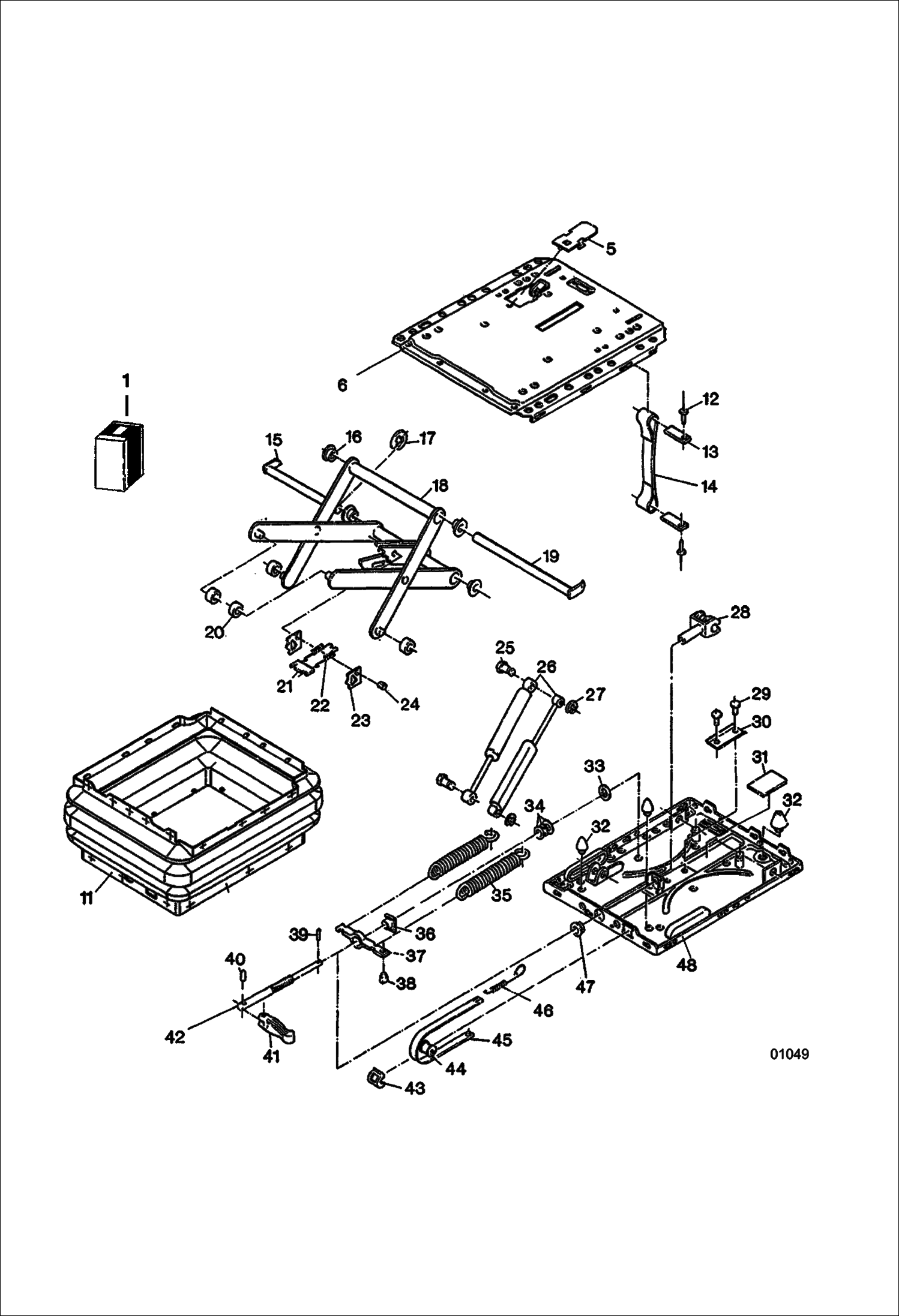

Запчасти Bobcat V518 SEAT SUSPENSION CHASSIS

1

96039-3

SEAT ( US STANDARD ) See Illustration SEAT/ V01050 With closed cab

1

6909060

SEAT See Illustration SEAT/ V01050 With canopy

5

97100-2

COVER

6

97101-0

BRACKET

11

97103-6

BELLOW

12

97104-4

RIVET

13

97105-1

PLATE

14

97106-9

STRAP Ref. 12-14

15

97107-7

ROD

16

97108-5

BUSHING

17

97109-3

CLIP

18

97110-1

ARM Ref. 15-24

19

97111-9

PIVOT

20

97112-7

ROLLER

21

97113-5

PLATE

22

97114-3

SPRING

23

97115-0

PLATE

24

97116-8

HEX PIN

25

97117-6

BOLT

26

97118-4

CYLINDER Ref. 25-27

27

97119-2

WASHER

28

97120-0

BRACKET

29

97121-8

RIVET

30

97122-6

BRACKET Ref. 29-30

31

97123-4

PLATE

32

97124-2

SET OF CUP

33

97125-9

WASHER

34

97126-7

STOP

35

97127-5

SPRING

36

01670-9

NUT

37

97129-1

BRACKET

38

97130-9

STOP

39

97131-7

PIN

40

97132-5

PIN

41

97133-3

HANDLE

42

97134-1

ROD Ref. 34,35,36,39,41,42,47

43

97135-8

GUIDE

44

97136-6

ROLLER

45

97137-4

TAPE

46

97138-2

SPRING

47

97139-0

BUSHING

48

97140-8

BOTTOM BRACKET Ref. 28,30-33,35,37-38,42-43,48
