Запчасти Bobcat V518 CONTINENTAL 15.0/55-R17 12 PR WHEELS ACCESSORIES & OPTIONS

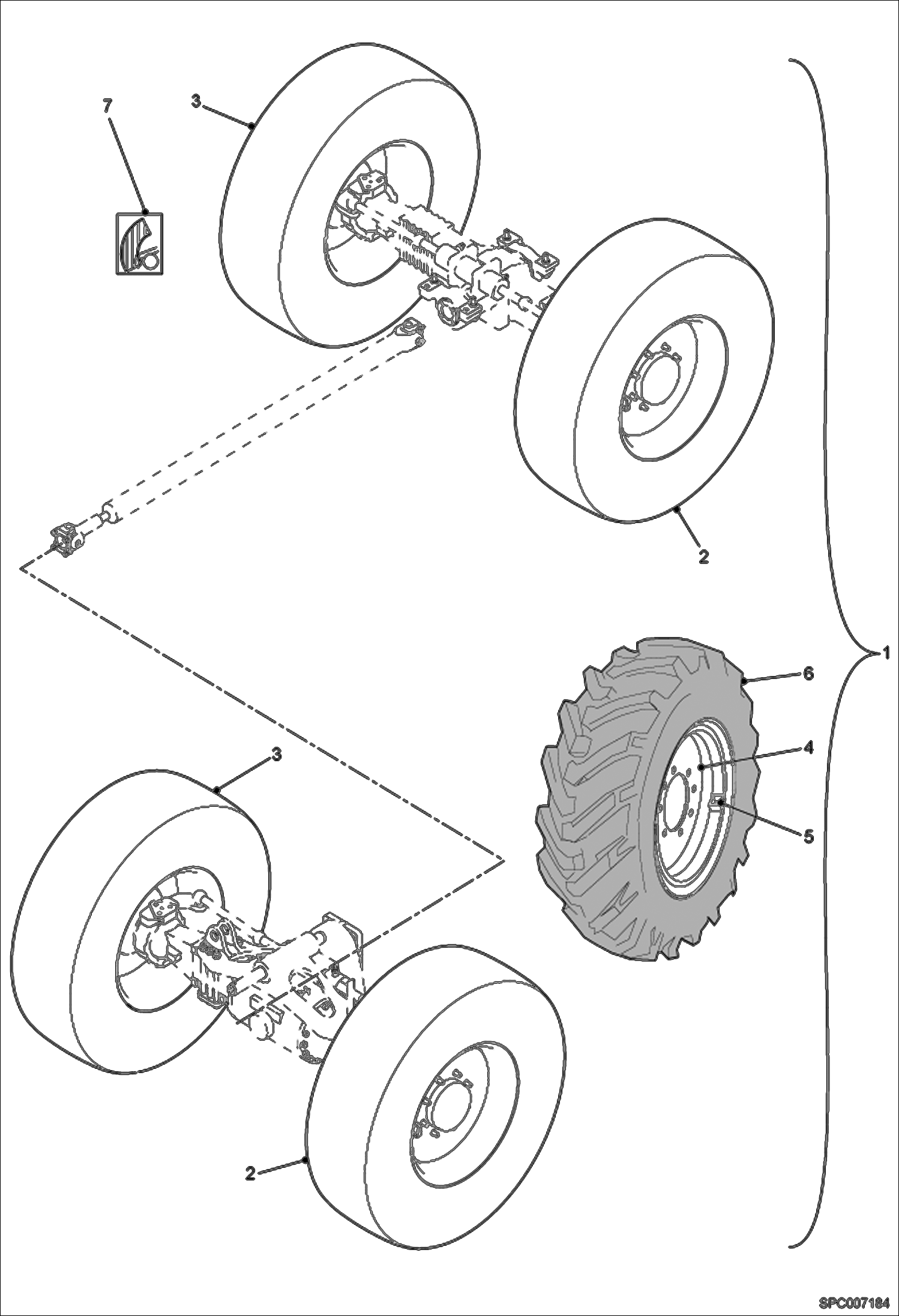

Схема запчастей Bobcat V518 - CONTINENTAL 15.0/55-R17 12 PR WHEELS ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

SET OF WHEELS W/Ref. 2-3 & 7

2

L.H. WHEEL ASSY NAP - Order Ref. 4-6

3

R.H. WHEEL ASSY NAP - Order Ref. 4-6

4

6914892

RIM

5

7192607

VALVE Was 100426-06B - A

6

85980-1

TIRE - 17

7

6913157

KIT LOAD CHART V518

7

6913159

V518 Load chart cover

7

6913161

V518 48Inch pallet fork load

7

6913162

V518 90Inch General purpose

7

6913163

V518 12 Foot truss boom chart

7

6913164

V518 80Inch combo bucket chart

7

6913165

V518 90Inch light mat bucket

7

6913166

V518 90Inch Indus Grapple Chart

7

6913167

V518 Bale handler chart

7

6913168

V518 90Inch frame grapple & fork

7

6810783

LOAD CHART Was 6910783 - B, D

7

6913170

V518 72Inch wide pallet fork

7

6913171

V518 3.25 Cubic yard bucket

7

6913172

V518 48 Bale carrier chart

7

6913173

V518/V723 Non-load carrying attachments

7

6913155

V518 48/60Inch side tilt frame

Выбрано товаров: 22
